8 Logic module, Smart logic LOGO!230RCE 6ED1052-1FB08-0BA2 8DI/4DO, 400 Blocks
Power Supply and I/O: 24 V (AC/DC) supply voltage, relay outputs, and integrated digital/analog inputs.
Connectivity and Intelligence: Integrated web server supporting web-based visualization; equipped with an Ethernet interface for programming and network connectivity.
Application Areas: Ideally suited for simple automation tasks in industrial facilities and residential buildings.
-
6ED1052-1FB08-0BA2
-
Siemens
| Quantity: | |
|---|---|
6ED1052-1FB08-0BA2

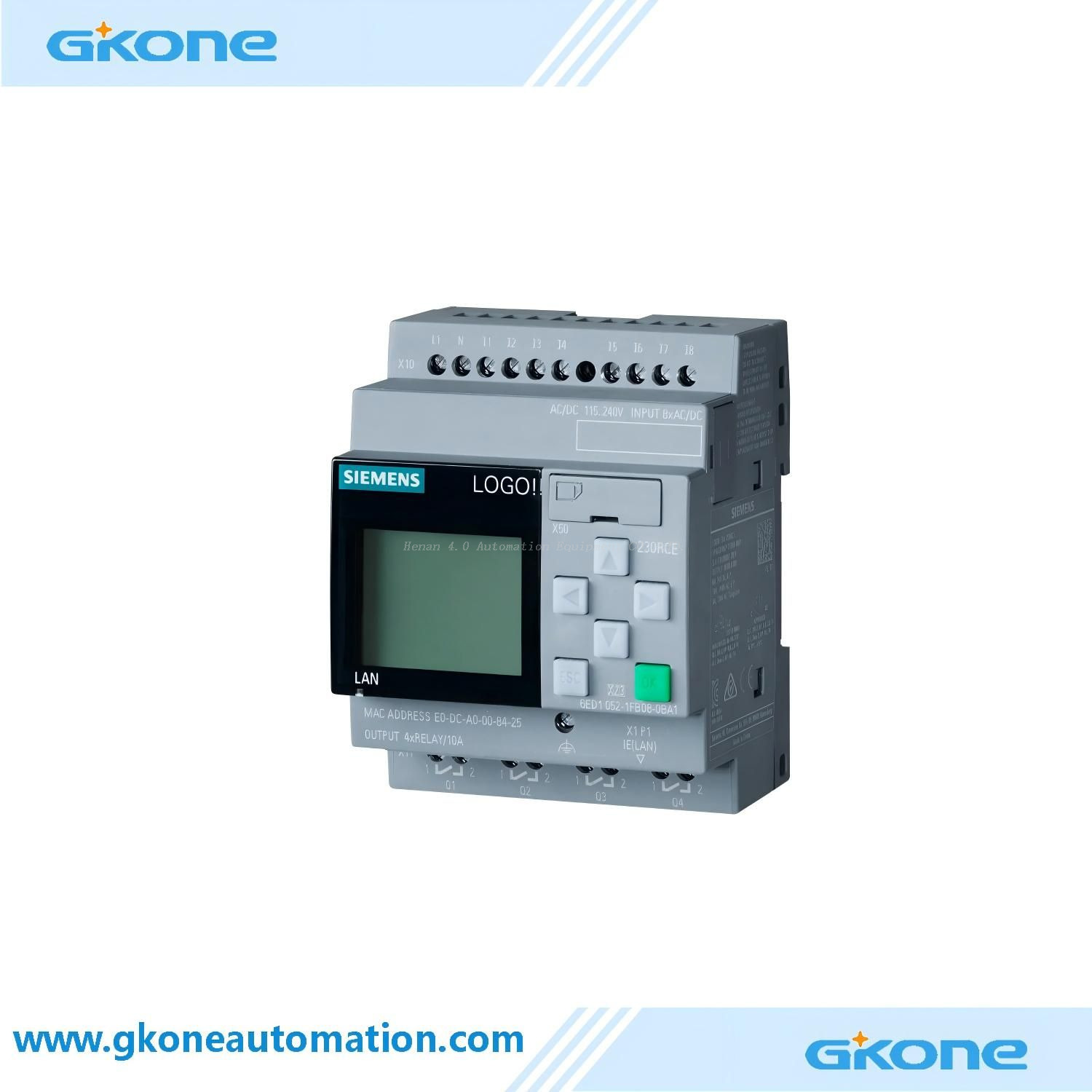

The Siemens 6ED1052-1FB08-0BA2 logic controller (part of the SIMATIC LOGO! 8 series) is a compact, intelligent, and versatile controller designed for integrated automation tasks. Equipped with an integrated web server for remote monitoring, an Ethernet interface, and a user-friendly display, it not only simplifies connectivity but also offers exceptional programming flexibility for applications ranging from industrial machinery to building automation.
Technical Parameters | Specifications & Details |
|---|---|
Product Model Number | 6ED1052-1FB08-0BA2 |
Product Family Name | SIMATIC LOGO! 8 |
Device Type | Logic Module / Smart Controller with Display |
Supply Voltage | 24V AC/DC |
Communication Interface | Ethernet (RJ45 port), Integrated Web Server |
Outputs Type | Relay Outputs |
Enclosure Protection | IP20 |
Order No. | Product Name | Supply Voltage | I/O Configuration | Output Type | Display | Remarks |
|---|---|---|---|---|---|---|
6ED1052-1FB08-0BA2 | LOGO! 230RCE | 115-230V AC/DC | 8DI / 4DO | Relay | Yes | 220V supply, most popular model (your target) |
6ED1052-2FB08-0BA2 | LOGO! 230RCEo | 115-230V AC/DC | 8DI / 4DO | Relay | No | Same as 230RCE, display-less, saves cabinet space |
6ED1052-1HB08-0BA2 | LOGO! 24RCE | 24V AC/DC | 8DI / 4DO | Relay | Yes | 24V AC/DC universal, relay output |
6ED1052-2HB08-0BA2 | LOGO! 24RCEo | 24V AC/DC | 8DI / 4DO | Relay | No | 24V, display-less version |
6ED1052-1MD08-0BA2 | LOGO! 12/24RCE | 12-24V DC | 8DI (4 reusable as AI) / 4DO | Relay | Yes | Supports analog input 0-10V, DC 12-24V supply |
6ED1052-2MD08-0BA2 | LOGO! 12/24RCEo | 12-24V DC | 8DI (4 reusable as AI) / 4DO | Relay | No | DC supply, with analog input, display-less |
6ED1052-1CC08-0BA2 | LOGO! 24CE | 24V DC | 8DI (4 reusable as AI) / 4DO | NPN Transistor | Yes | Transistor output, high speed, supports analog input |
6ED1052-2CC08-0BA2 | LOGO! 24CEo | 24V DC | 8DI (4 reusable as AI) / 4DO | NPN Transistor | No | Transistor output, display-less version |
