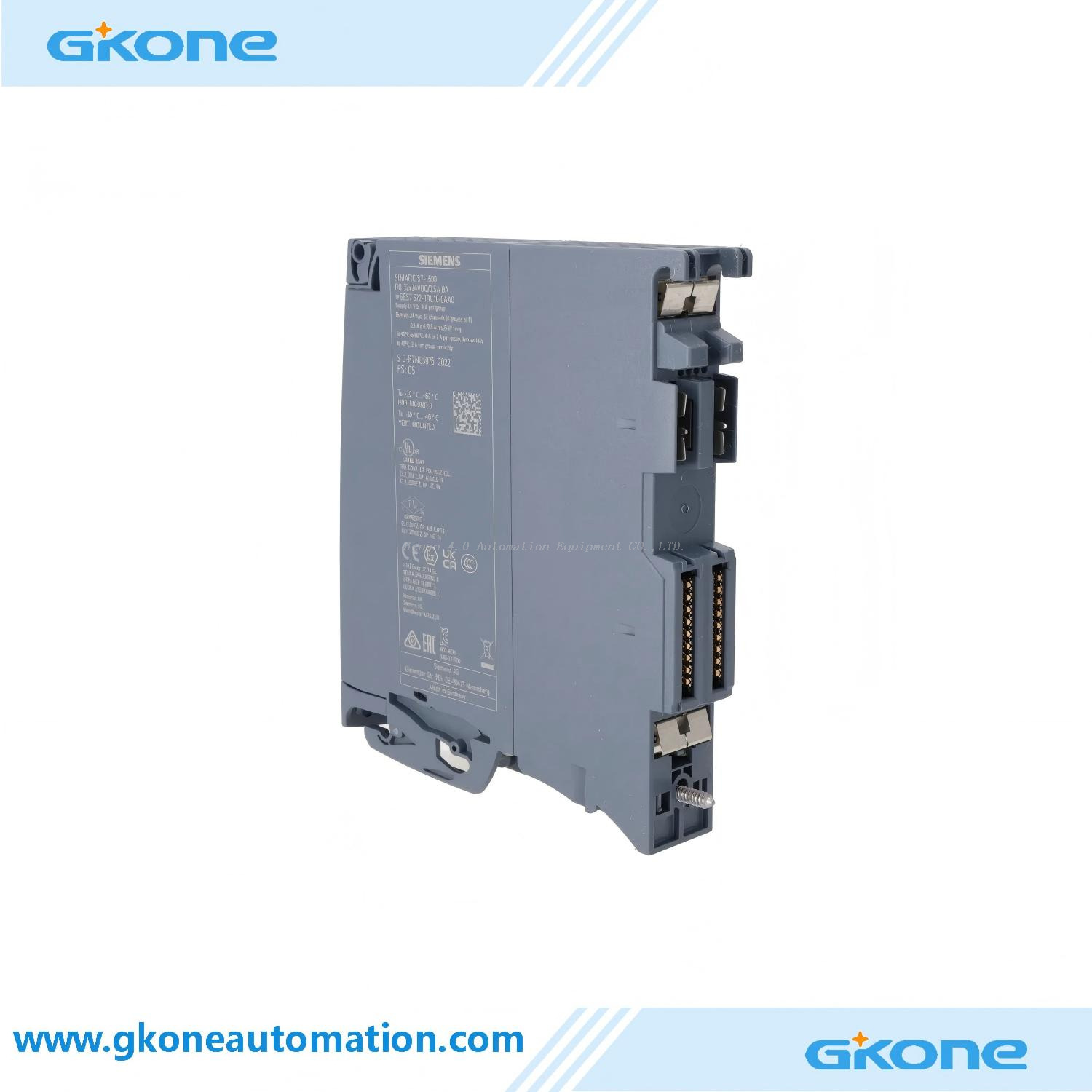

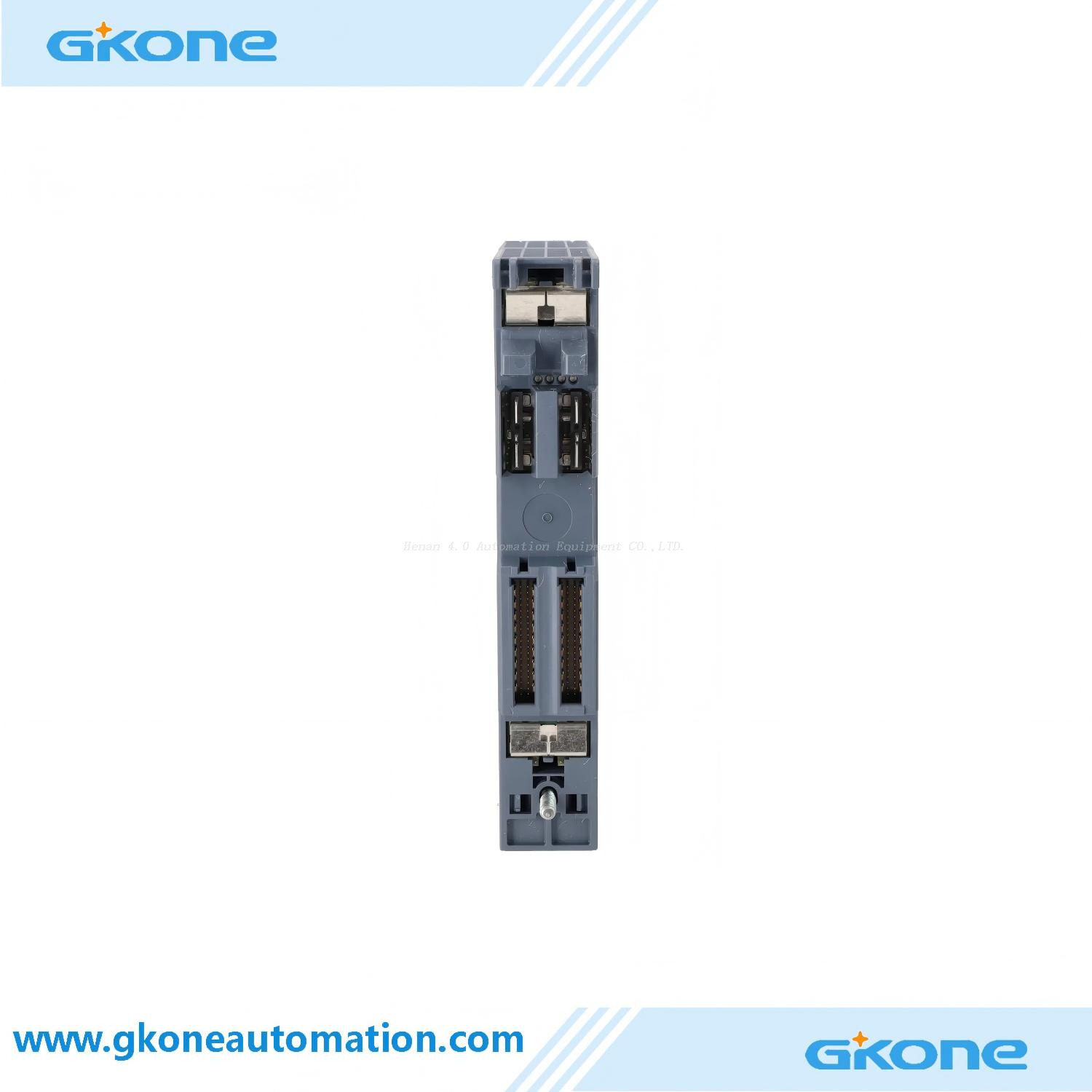

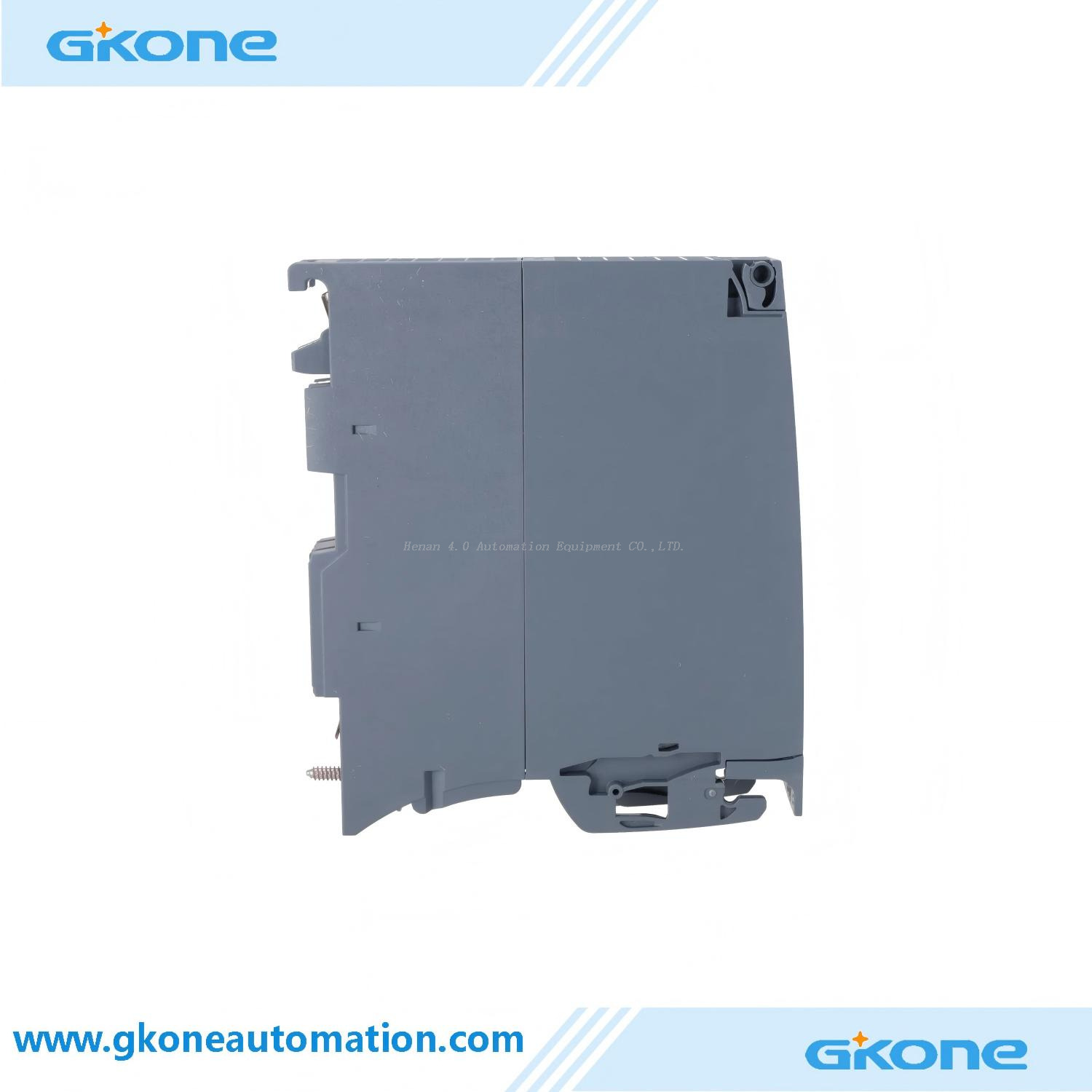

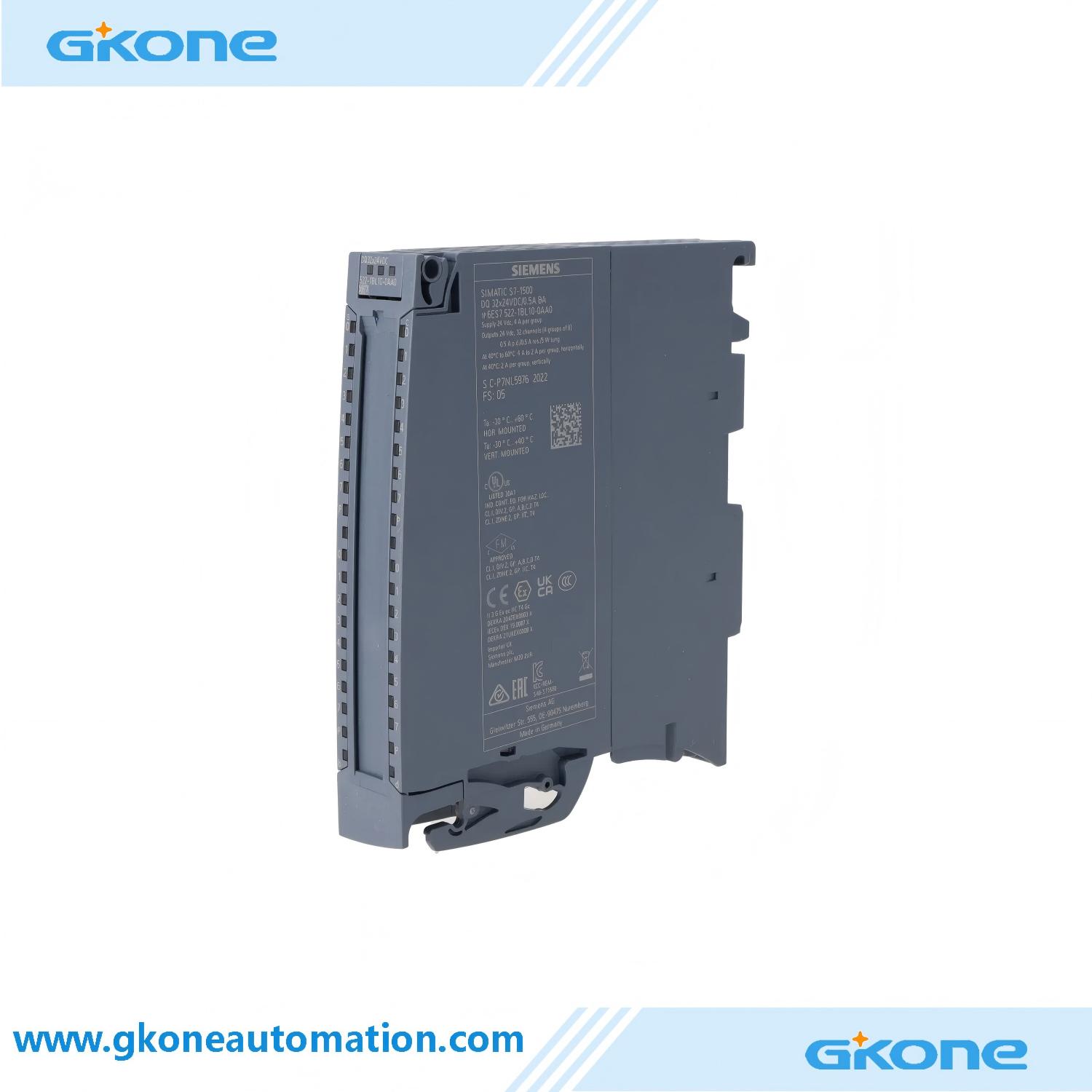

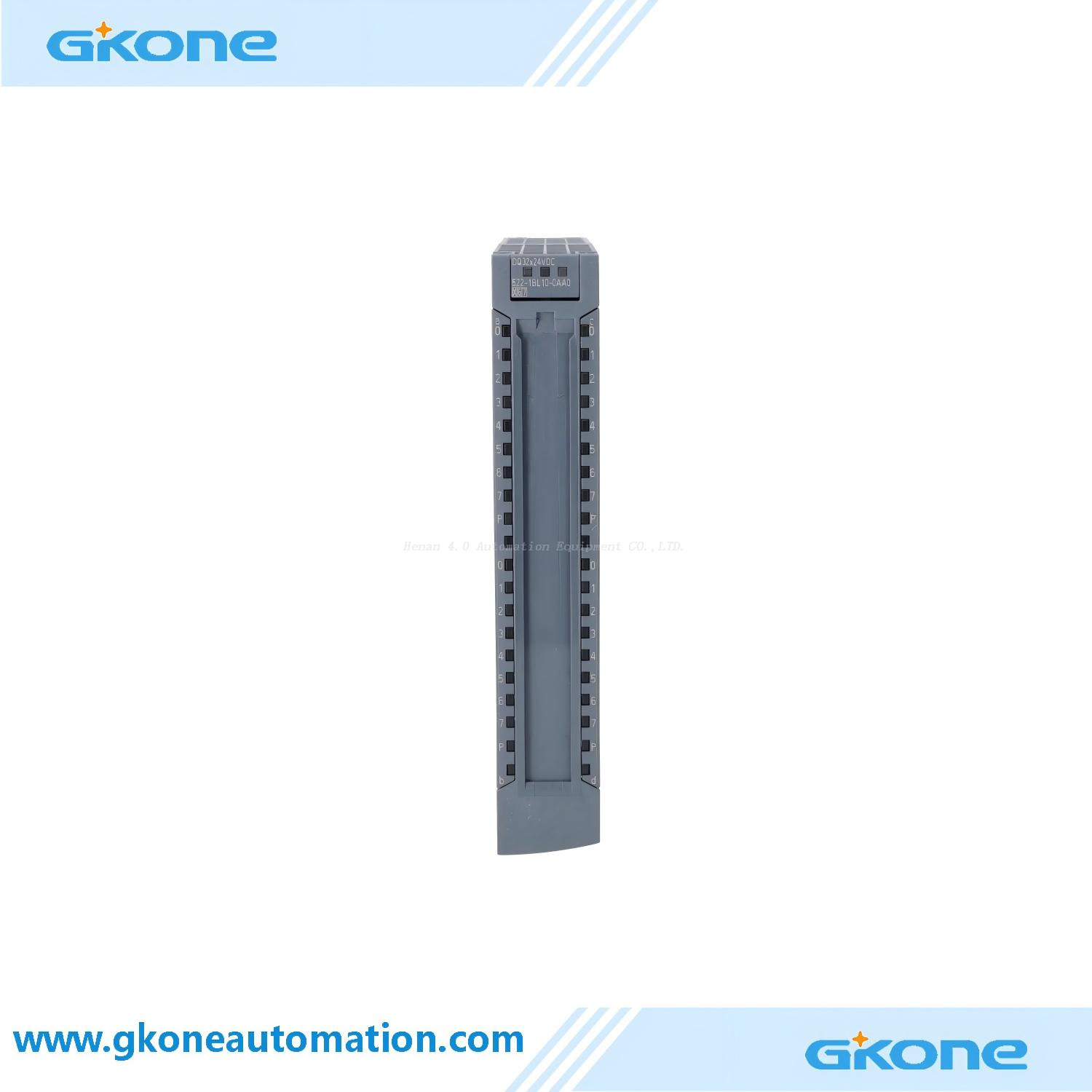

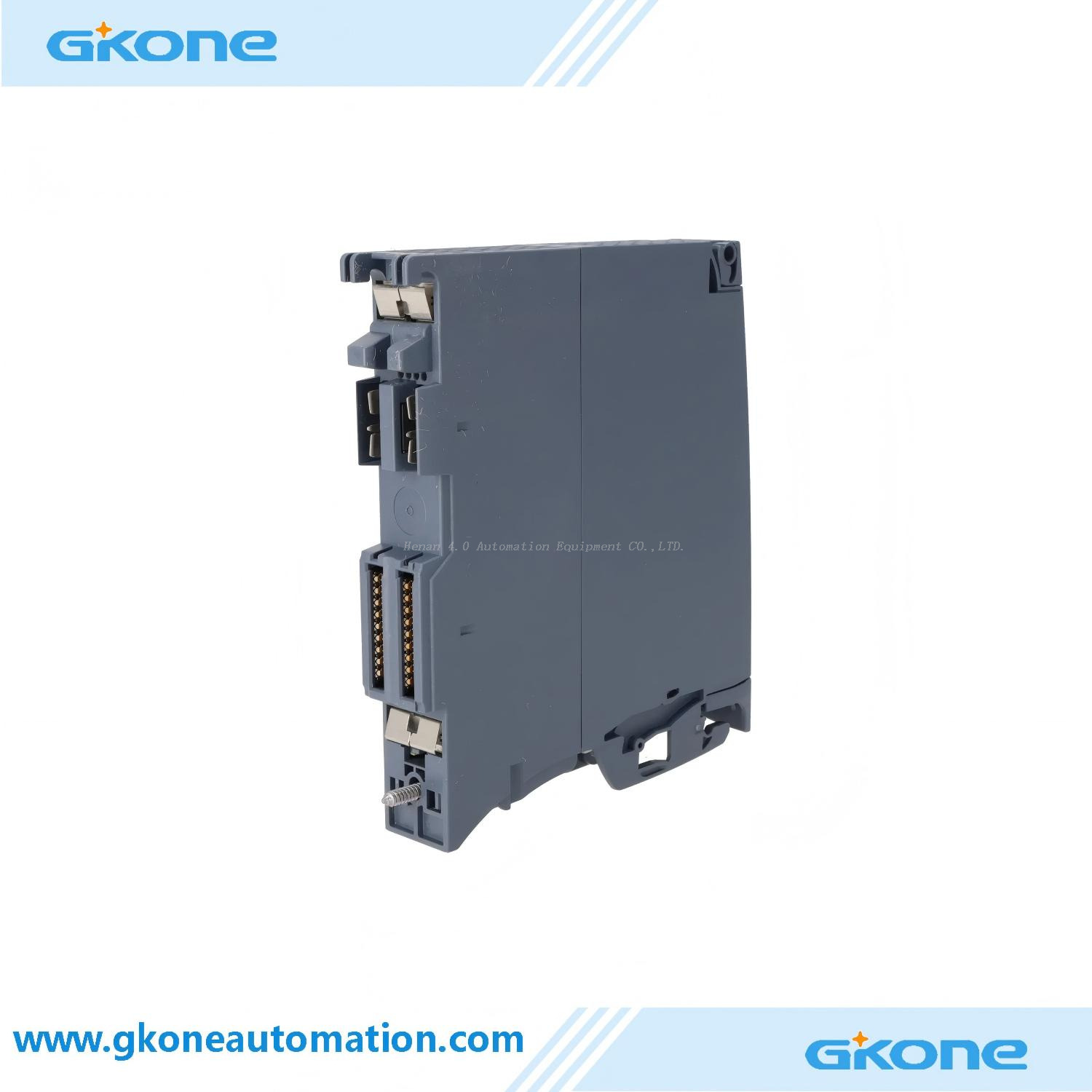

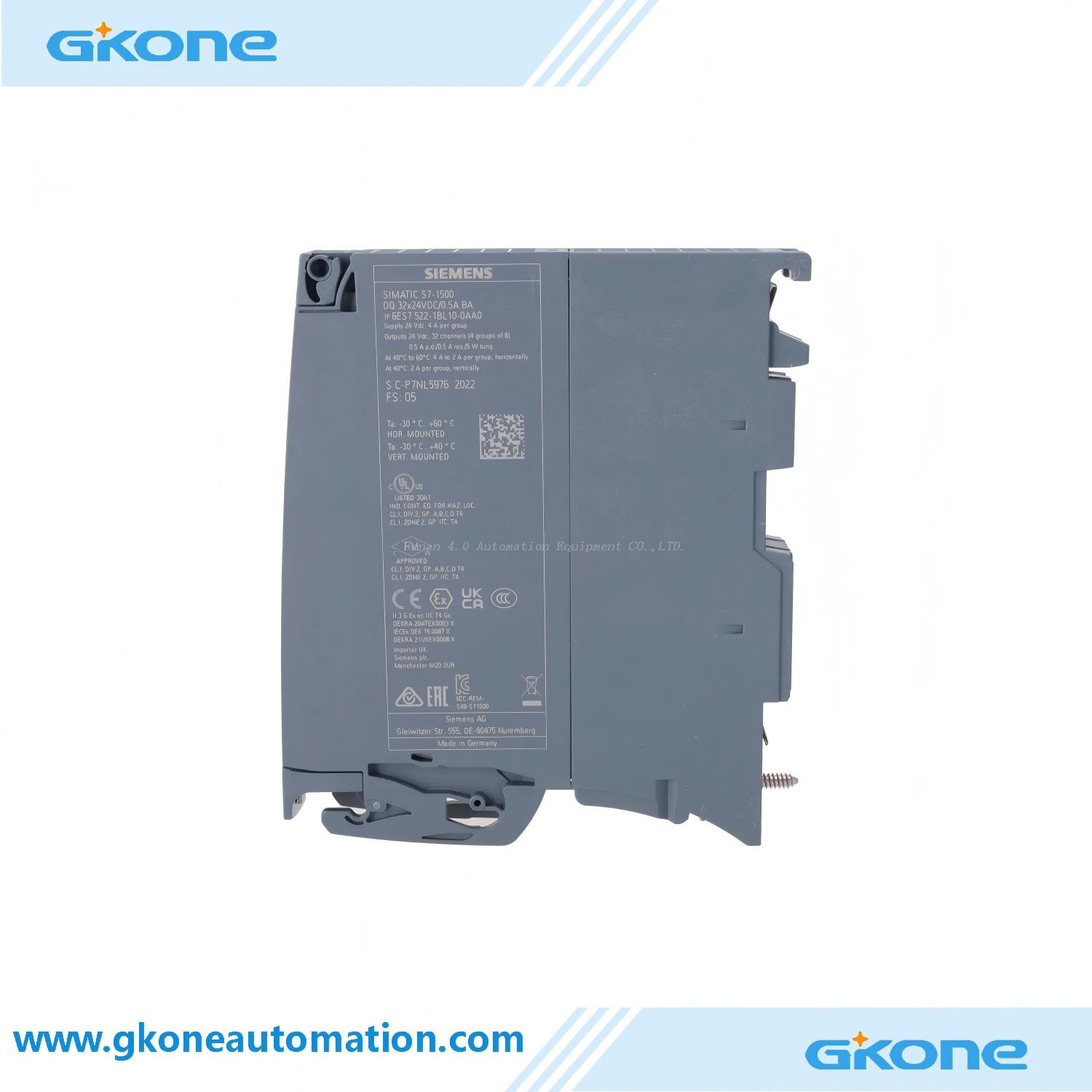

Siemens 6ES7522-1BL10-0AA0 SIMATIC S7-1500 32-channel DQ module 24VDC 0.5A output PLC System
-
6ES7522-1BL10-0AA0
-
Siemens
| Quantity: | |
|---|---|
Product Overview
The Siemens 6ES7522-1BL10-0AA0 is a high-density digital output module (DQ 32x24VDC/0.5A BA) designed for the advanced SIMATIC S7-1500 PLC configuration. Providing 32 solid-state transistor channels in a single 35mm wide block, this basic-tier hardware dramatically reduces control panel footprint while offering massive digital signal capabilities to interface with field actuators and relays.
1.Key Features & Technical Specifications
Channel Density: 32 digital outputs grouped in 4 electronic clusters (8 channels per group).
Module Tier: Basic (BA) functional level for economical digital signal routing.
Output Rating: 24 V DC switching voltage with a standard 0.5 A output current per channel.
Output Mechanism: Transistor-based source output (M-switching logic supported across total load).
Aggregate Current: Maximum of 4 A per group, up to 16 A per entire module housing.
Diagnostics & Status: Integrated front LED arrays tracking module status, channel operation, and active signal transmission.
Hardware Dimensions: Compact 35 mm physical width, standard for S7-1500 rack mount configurations (front connector required).
2.Applications
Because of its substantial 32-channel capability, the 6ES7522-1BL10-0AA0 hardware module is highly favored in dense signal environments like automated sorting lines and packaging plants. It is perfectly optimized for controlling multi-tier indicator banks, triggering small pneumatic solenoids, switching magnetic contactors, and piloting secondary industrial relays. In multi-axis handling setups or material distribution warehouses running on the SIMATIC S7-1500 platform, this high-density DQ card ensures smooth signal control.
Advantage
Genuine Siemens Product: 100% original, CE certified, strict quality inspection before shipment.
In Stock & Fast Delivery: Ready to ship via DHL/FedEx/UPS within 2 weeks.
Professional Support: 12-month warranty and free technical support for configuration and debugging.
Cost-Effective: Competitive pricing, ideal for system upgrades and replacement projects.
