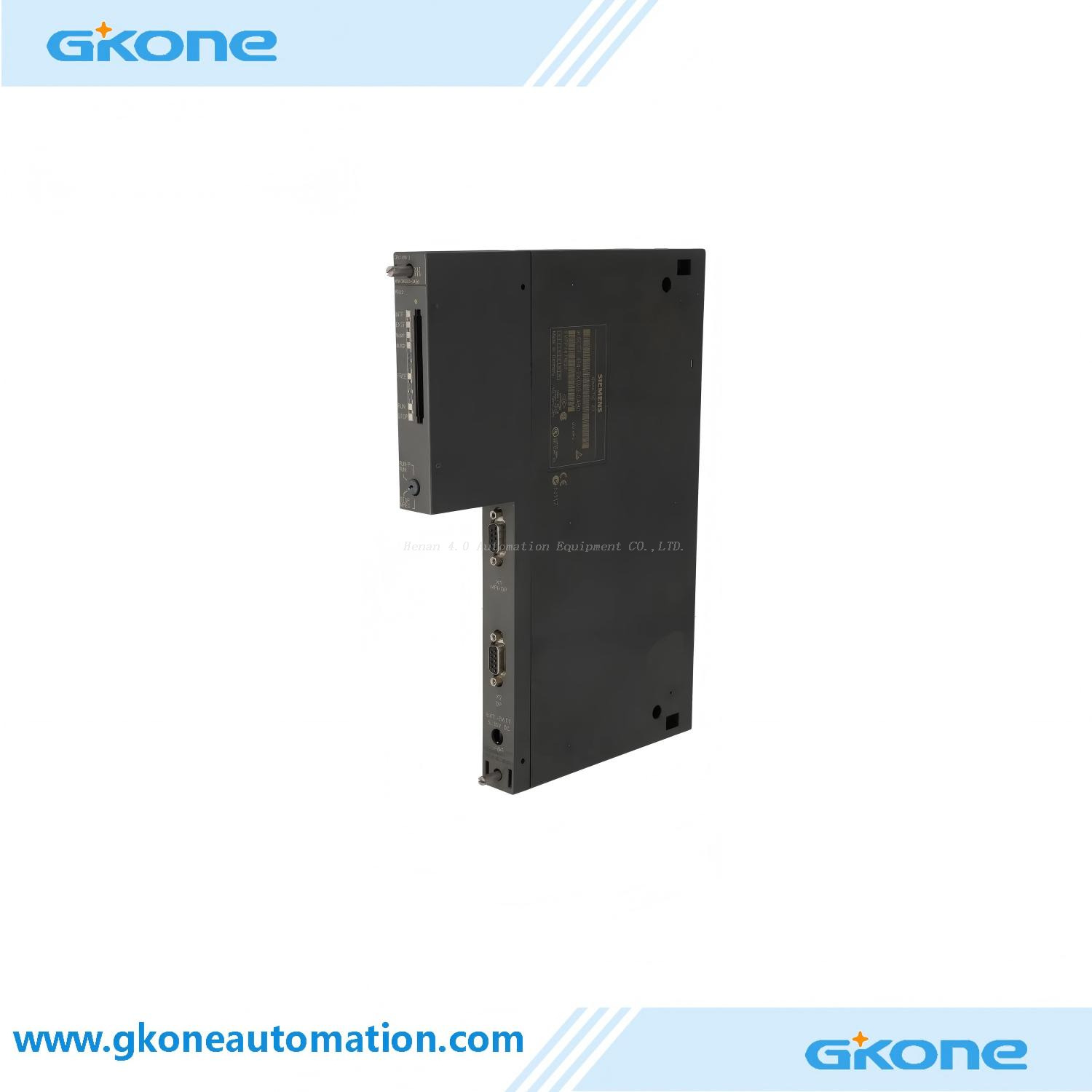

Siemens 6ES7414-2XG03-0AB0 S7-400 CPU 414-2 Controller Module
-
6ES7414-2XG03-0AB0
-
Siemens
| Quantity: | |
|---|---|
6ES7414-2XG03-0AB0
The 6ES7414-2XG03-0AB0 CPU 414-2 processor is widely deployed across continuous processing plants, automotive manufacturing, and heavy industrial machinery. It acts as the central control processor for automated conveyor networks, chemical dosing skids, power plant auxiliary systems, and metal processing lines. By providing dual PROFIBUS connectivity and dependable processing power in a standard S7-400 rack, this SIMATIC CPU ensures seamless multi-device coordination and long-term operating stability.
Key Features & Technical Specifications
512 KB Work Memory: Generous 512 KB RAM memory division (256 KB code / 256 KB data) to manage extensive program logic and process parameters.
Dual Fieldbus Interfaces: Equipped with 1 x combined MPI/DP interface and 1 x PROFIBUS DP interface for flexible network topology.
Fast Processing Speed: Executes bit operations at 0.06 µs, providing rapid response for complex sequential control loops.
PROFIBUS Master/Slave Capability: Acts as a PROFIBUS DP Master to drive distributed I/O stations (e.g., ET 200M, ET 200S) or as an intelligent slave.
High I/O Capacity: Supports multi-rack expansion configurations addressing up to 8192 digital I/O and 512 analog I/O points.
Flexible Memory Expansion: Accommodates optional SIMATIC RAM or Flash EPROM memory cards for load memory storage.
Rugged Heavy-Duty Architecture: Features heavy-duty noise shielding and thermal tolerance for long-term continuous operation in harsh industrial environments.
SIMATIC S7-400 Medical Programmable Controller | ||
Module Type | MLFB | Description |
CPU | 6ES74121XF030AB0 | CPU 412-1 96 KB WORKING MEMORY(48 KB CODE, 48 KB DATA)INTERFACE |
CPU | 6ES74121XF040AB0 | CPU 412-1 CENTRAL PROCESSING UNIT WITH:144 KB WORKING MEMORY,(72 KB CODE, 72 KB DATA),INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74121XJ050AB0 | SIMATIC S7-400, CPU 412-1 CENTRAL PROCESSING UNIT WITH: 288 KB WORKING MEMORY, (144 KB CODE, 144 KB DATA), INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74122EK060AB0 | SIMATIC S7-400, CPU 412-2 PN CENTRAL PROCESSING UNIT WITH:1 MB WORKING MEMORY, (0.5 MB CODE, 0.5 MB DATA), INTERFACES:1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET (X5). |
CPU | 6ES74122XG040AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH:256 KB WORKING MEMORY,(128 KB CODE, 128 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74122XJ050AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH: 512 KB WORKING MEMORY, (256 KB CODE, 256 KB DATA), 1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74123HJ140AB0 | SIMATIC S7-400H, CPU 412-3H CENTRAL UNIT FOR S7-400H AND S7-400F/FH, 3 INTERFACES: 1 MPI/DP AND 2 FOR SYNC MODULES 768 KB MEMORY (256 KB CODE, 512 KB DATA) |
CPU | 6ES74122XG040AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH:512 KB WORKING MEMORY,(256 KB CODE, 256 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP |
CPU | 6ES74122XK050AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH: 1 MB WORKING MEMORY, (0.5 MB CODE, 0.5 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP |
CPU | 6ES74143EM050AB0 | SIMATIC S7-400, CPU 414-3 PN/DP CENTRAL PROCESSING UNIT WITH:2.8 MB WORKING MEMORY,(1.4 MB KB CODE, 1.4 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143EM060AB0 | SIMATIC S7-400, CPU 414-3 PN/DP CENTRAL PROCESSING UNIT WITH:4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143FM060AB0 | SIMATIC S7400, CPU414F3 PN/DP CENTRAL PROCESSING UNIT WITH: 4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143XJ000AB0 | SIMATIC S7-400, CPU 414-3 768 KB WORKING MEMORY(384 KB CODE, 384 KB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2.IF PROFIBUS DP, 3I FOR IFM MODULES PLUGGABLE |
CPU | 6ES74143XJ040AB0 | SIMATIC S7-400, CPU 414-3 CENTRAL PROCESSING UNIT WITH:1.4 MB WORKING MEMORY,(700 KB CODE, 700 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74143XM050AB0 | SIMATIC S7-400, CPU 414-3 CENTRAL PROCESSING UNIT WITH: 2.8 MB WORKING MEMORY, (1.4 MB CODE, 1.4 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74144HJ000AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH,4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 768 KB MEMORY (384 KB CODE, 384 KB DATA) |
CPU | 6ES74144HJ040AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH,4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 20MB MEMORY |
CPU | 6ES74144HM140AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH, 4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 2.8 MB MEMORY (1.4 MB CODE, 1.4 MB DATA) |
CPU | 6ES74162FK020AB0 | SIMATIC S7-400, CPU 416F-2 CENTRAL PROCESSING UNIT WITH: 1.6 MB WORKING MEMORY, (0.8 MB CODE, 0.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE DP, APPLICABLE W. SOFTWARE PACKAGE DISTRIBUTED |
CPU | 6ES74162FK040AB0 | SIMATIC S7-400, CPU 416F-2 CENTRAL PROCESSING UNIT WITH: 2.8 MB WORKING MEMORY, (1.4 MB CODE, 1.4 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP APPLICABLE W. SOFTWARE PACKAGE |
CPU | 6ES74162FN050AB0 | SIMATIC S7-400, CPU 416F-2, CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP APPLICABLE W. SOFTWARE PACKAGE |
CPU | 6ES74162XK010AB0 | SIMATIC S7-400, CPU 416-2 DP CENTRAL PROCESSING UNIT WITH:MULTI-POINT MPI INTERFACE INTEGR. PROFIBUS DP INTERFACE 0.8 MB WORKING MEMORY |
CPU | 6ES74162XK020AB0 | SIMATIC S7-400, CPU 416-2 1.6 MB WORKING MEMORY(0.8 MB CODE, 0.8 MB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE DP |
CPU | 6ES74162XK040AB0 | SIMATIC S7-400, CPU 416-2 CENTRAL PROCESSING UNIT WITH:2.8 MB WORKING MEMORY,(1.4 MB CODE, 1.4 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74162XL010AB0 | SIMATIC S7-400, CPU 416-2 DP CENTRAL PROCESSING UNIT WITH:MULTI-POINT MPI INTERFACE |
CPU | 6ES74162XN050AB0 | SIMATIC S7-400, CPU 416-2 CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74163ER050AB0 | SIMATIC S7-400, CPU 416-3 PN/DP CENTRAL PROCESSING UNIT WITH:11.2 MB WORKING MEMORY,(5.6 MB KB CODE, 5.6 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S, 2. IF ETHERNET/PROFINET(IF1), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163ES060AB0 | SIMATIC S7-400, CPU 416-3 PN/DP CENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163FR050AB0 | SIMATIC S7400, CPU416F3 PN/DP CENTRAL PROCESSING UNIT WITH: 11.2 MB WORKING MEMORY,(5.6 MB KB CODE, 5.6 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S, 2. IF ETHERNET/PROFINET, 3. IF IM964-DP PLUGGABLE APPLICABLE W. SOFTWARE PACKAGE S7 DISTRIBUTED SA |
CPU | 6ES74163FS060AB0 | SIMATIC S7400, CPU416F3 PN/DP CENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET(X5),3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163XL000AB0 | SIMATIC S7-400, CPU 416-3 3.2 MB WORKING MEMORY(1.6 MB CODE, 1.6 MB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2.IF PROFIBUS DP,3.IF IFM MODULES PLUGGABLE |
CPU | 6ES74163XL040AB0 | SIMATIC S7-400, CPU 416-3 CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74163XR050AB0 | SIMATIC S7-400, CPU 416-3 CENTRAL PROCESSING UNIT WITH: 11.2 MB WORKING MEMORY, (5.6 MB CODE, 5.6 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74174HL010AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 4MB MEMORY (2MB CODE/2MB DATA) |
CPU | 6ES74174HL040AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 20MB MEMORY |
CPU | 6ES74174HT140AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 30MB MEMORY (15 MB CODE/15 MB DATA) |
CPU | 6ES74174XL000AB0 | SIMATIC S7-400, CPU 417-4 4MB USER MEMORY(2MB CODE; 2 MB DATA)1ST INTERF. = MPI 12 MBIT/S;2ND INTERF. = PROFIBUS DP;3RD AND 4TH |
CPU | 6ES74174XL040AB0 | SIMATIC S7-400, CPU 417-4 CENTRAL PROCESSING UNIT WITH:20MB WORKING MEMORY,(10 MB CODE; 10 MB DATA),1. INTERFACE MPI 12 MBIT/S; |
CPU | 6ES74174XT050AB0 | SIMATIC S7-400, CPU 417-4 CENTRAL PROCESSING UNIT WITH: 30 MB WORKING MEMORY, (15 MB CODE; 15 MB DATA) 1. INTERFACE MPI 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3/4. IF IFM MODULES PLUGGABLE |
MMC Card | 6ES79520AF000AA0 | RAM, 64 KB |
MMC Card | 6ES79521AH000AA0 | RAM, 256 KB |
MMC Card | 6ES79521AK000AA0 | RAM, 1 MB |
MMC Card | 6ES79521AL000AA0 | RAM, 2 MB |
MMC Card | 6ES79521AM000AA0 | RAM, 4 MB |
MMC Card | 6ES79521AP000AA0 | RAM, 8 MB |
MMC Card | 6ES79521AS000AA0 | RAM, 16 MB |
MMC Card | 6ES79521AY000AA0 | RAM, 64 MB |
MMC Card | 6ES79520KF000AA0 | FLASH-EPROM, 64 KB |
MMC Card | 6ES79520KH000AA0 | FLASH-EPROM, 256 KB |
MMC Card | 6ES79521KK000AA0 | FLASH-EPROM, 1 MB |
MMC Card | 6ES79521KL000AA0 | FLASH-EPROM, 2 MB |
MMC Card | 6ES79521KM000AA0 | FLASH-EPROM, 4 MB |
MMC Card | 6ES79521KP000AA0 | FLASH-EPROM, 8 MB |
MMC Card | 6ES79521KS000AA0 | FLASH-EPROM, 16 MB |
MMC Card | 6ES79521KT000AA0 | FLASH-EPROM, 32 MB |
MMC Card | 6ES79521KY000AA0 | FLASH-EPROM, 64 MB |
Communication Module Functional Module | 6ES74401CS000YE0 | SIMATIC S7-400, CP 440-1 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S1 CHANNEL INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74411AA040AE0 | SIMATIC S7-400, CP 441-1 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S1 CHANNEL INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74412AA040AE0 | SIMATIC S7-400, CP 441-2 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S2 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74441MX000XE0 | SIMATIC S7-400, COMMUNIC.MODULE CP 444 MAP FOR CONNECTION OFS/-400 TO INDUSTRIAL ETHERNETW. MAP 3.0 PROTOCOLA |
Communication Module Functional Module | 6ES74501AP000AE0 | SIMATIC S7-400, FM 450-1 FUNCTION MODULE F. COUNT.FUNCT.WITH 2 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74513AL000AE0 | SIMATIC S7-300, FM 451 POSITIONING MODULE FOR RAPID/CREEP FEED DRIVE3 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74521AH000AE0 | PACKAGE ON CD |
Communication Module Functional Module | 6ES74533AH000AE0 | SIMATIC S7-400, FM 453 FUNCTION MODULE FOR POSITIONING WITH SERVO AND STEPPER MOTORS(3 CHANNELS)INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74550VS000AE0 | AI + 16 DI + 16 AO |
Communication Module Functional Module | 6ES74551VS000AE0 | 8/16 AI + 16 DI + 32 DO |
