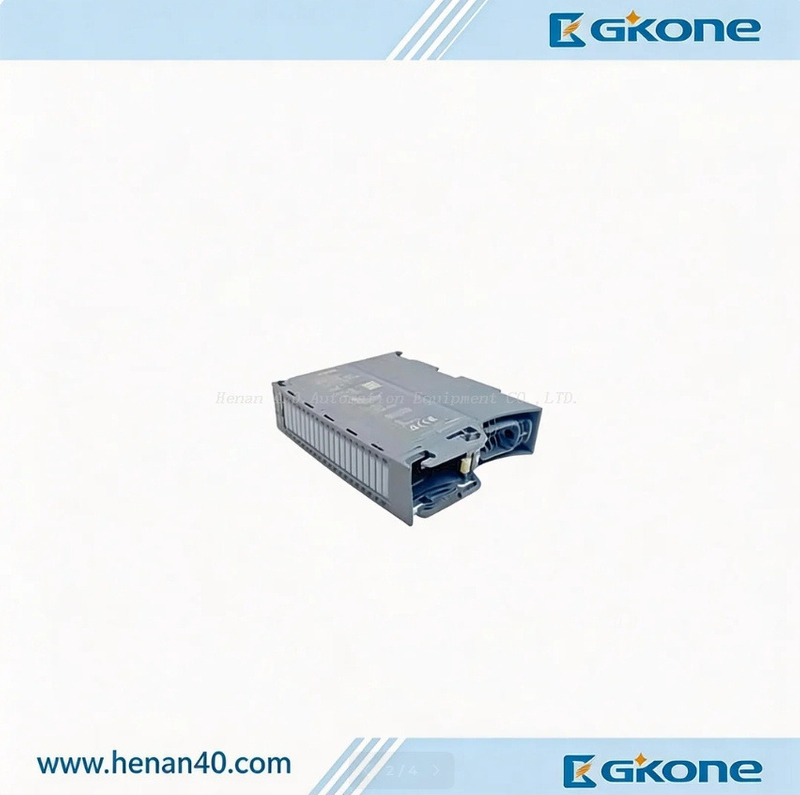

Siemens 6ES7522-1BH01-0AB0 SIMATIC S7-1500 DQ 16x24VDC/0.5A HF Digital Output Module

Product Overview

Siemens 6ES7522-1BH01-0AB0 is a high-frequency (HF) digital output module for the SIMATIC S7-1500 automation system. It features 16 PNP transistor output channels (24V DC/0.5A per channel), designed for driving solenoid valves, contactors, indicators, and small actuators. With advanced diagnostics and safety features, it ensures stable and reliable control in industrial automation lines.

Key Features & Technical Specifications

• 16 High-Speed Output Channels: 16x24V DC PNP transistor outputs, 0.5A per channel, 4A per group (8 channels), ideal for high-frequency switching.

• Fast Response Time: <100µs signal response, supports up to 100kHz pulse output for high-precision motion control.

• Comprehensive Diagnostics: Single-channel status monitoring, LED indicators (green=normal, red=fault), overload/short-circuit detection.

• Safety Certification: Compliant with SIL2 (EN IEC 62061) and Cat.3/PLd (EN ISO 13849-1), safe load group shutdown.

• Robust Electrical Design: 24V DC (20.4–28.8V) wide voltage, reverse polarity protection, electronic short-circuit protection.

• Easy Integration: 35mm width, DIN rail mount, compatible with TIA Portal V13 SP1+, front connector (screw/push-in) optional.

• Durable Build: Industrial-grade (-20°C to +60°C), IP20 protection, low power loss (typ. 2W), long service life.

Advantage

• 100% Original Siemens: Factory-sealed, CE certified, strict quality inspection before shipment.

• Global Fast Delivery: In-stock items shipped via DHL/FedEx/UPS within 2-3 weeks.

• Professional Support: 12-month warranty + free technical support for configuration and troubleshooting.

• Competitive Pricing: Bulk discounts available, cost-effective for automation system upgrades.
