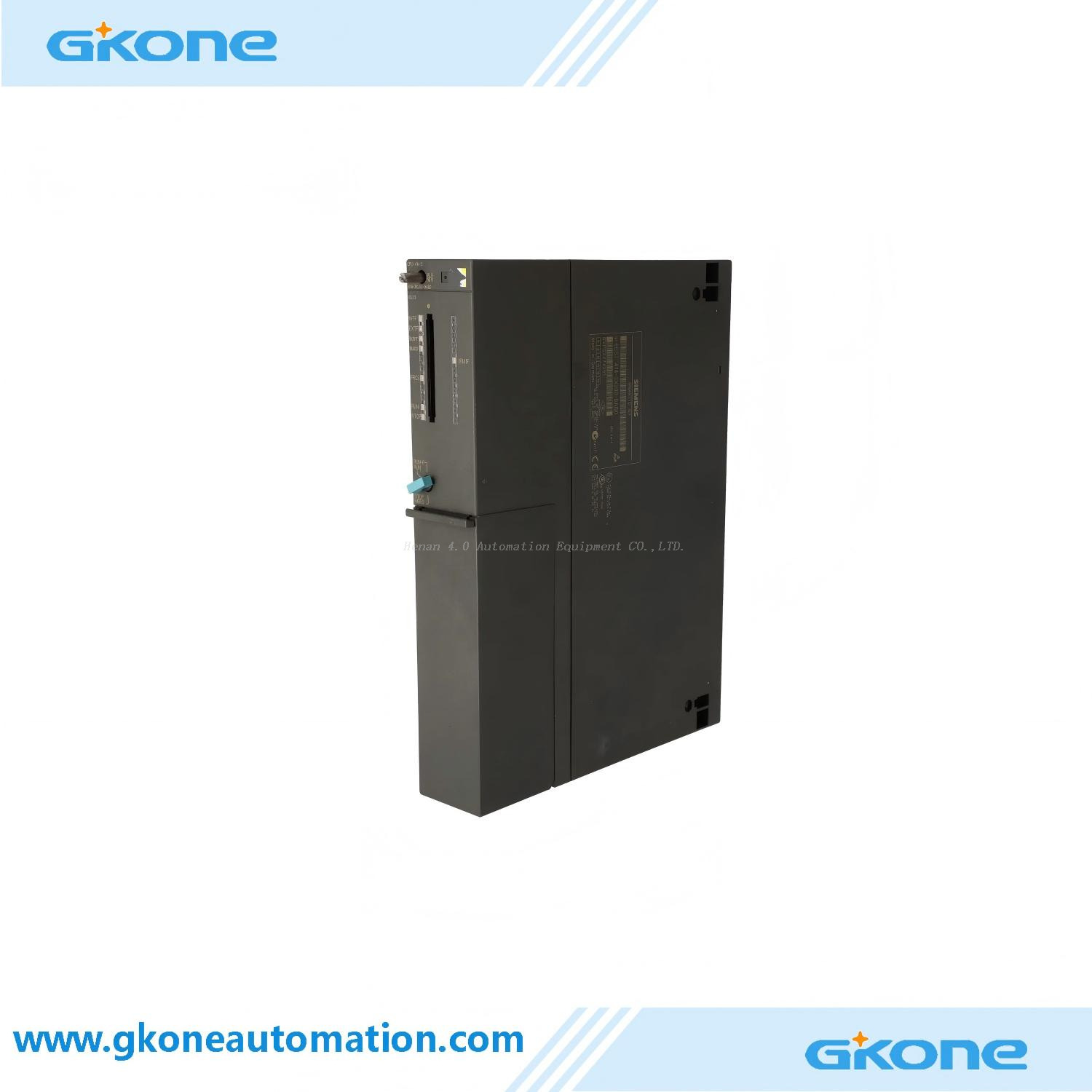

Siemens 6ES7414-3XJ00-0AB0 S7-400 CPU 414-3 Controller Module
-
6ES7414-3XJ00-0AB0
-
Siemens
| Quantity: | |
|---|---|
6ES7414-3XJ00-0AB0
The 6ES7414-3XJ00-0AB0 CPU 414-3 processor is widely specified across chemical processing, automotive assembly, energy management, and heavy machinery automation. It serves as the primary PLC controller for multi-segment conveyor networks, water treatment facilities, furnace control units, and continuous production lines. By offering expandable PROFIBUS connectivity alongside high-capacity RAM in a standard S7-400 rack, this SIMATIC CPU ensures multi-network orchestration and maximum system uptime.
Key Features & Technical Specifications
768 KB Work Memory: Generous 768 KB RAM memory division (384 KB code / 384 KB data) to manage extensive control logic and complex data structures.
Triple Fieldbus Option: Onboard 1 x MPI/DP port, 1 x PROFIBUS DP port, plus 1 slot for an optional IF964-DP sub-module for a 3rd fieldbus line.
High Processing Speed: Executes bit operations at 0.045 µs, ensuring fast response times for complex process automation loops.
PROFIBUS Master/Slave Capability: Functions as a PROFIBUS DP Master to drive distributed I/O stations (e.g., ET 200M, ET 200S) or as an intelligent slave.
Expansive I/O Capacity: Supports multi-rack configurations addressing up to 8192 digital I/O and 512 analog I/O channels.
Flexible Memory Card Support: Accommodates optional SIMATIC RAM or Flash EPROM memory cards for expandable load memory.
Industrial Noise Immunity: Built with heavy-duty electromagnetic shielding and rugged housing for continuous long-term operation in harsh environments.
SIMATIC S7-400 Medical Programmable Controller | ||
Module Type | MLFB | Description |
CPU | 6ES74121XF030AB0 | CPU 412-1 96 KB WORKING MEMORY(48 KB CODE, 48 KB DATA)INTERFACE |
CPU | 6ES74121XF040AB0 | CPU 412-1 CENTRAL PROCESSING UNIT WITH:144 KB WORKING MEMORY,(72 KB CODE, 72 KB DATA),INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74121XJ050AB0 | SIMATIC S7-400, CPU 412-1 CENTRAL PROCESSING UNIT WITH: 288 KB WORKING MEMORY, (144 KB CODE, 144 KB DATA), INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74122EK060AB0 | SIMATIC S7-400, CPU 412-2 PN CENTRAL PROCESSING UNIT WITH:1 MB WORKING MEMORY, (0.5 MB CODE, 0.5 MB DATA), INTERFACES:1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET (X5). |
CPU | 6ES74122XG040AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH:256 KB WORKING MEMORY,(128 KB CODE, 128 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74122XJ050AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH: 512 KB WORKING MEMORY, (256 KB CODE, 256 KB DATA), 1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74123HJ140AB0 | SIMATIC S7-400H, CPU 412-3H CENTRAL UNIT FOR S7-400H AND S7-400F/FH, 3 INTERFACES: 1 MPI/DP AND 2 FOR SYNC MODULES 768 KB MEMORY (256 KB CODE, 512 KB DATA) |
CPU | 6ES74122XG040AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH:512 KB WORKING MEMORY,(256 KB CODE, 256 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP |
CPU | 6ES74122XK050AB0 | SIMATIC S7-400, CPU 412-2 CENTRAL PROCESSING UNIT WITH: 1 MB WORKING MEMORY, (0.5 MB CODE, 0.5 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP |
CPU | 6ES74143EM050AB0 | SIMATIC S7-400, CPU 414-3 PN/DP CENTRAL PROCESSING UNIT WITH:2.8 MB WORKING MEMORY,(1.4 MB KB CODE, 1.4 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143EM060AB0 | SIMATIC S7-400, CPU 414-3 PN/DP CENTRAL PROCESSING UNIT WITH:4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143FM060AB0 | SIMATIC S7400, CPU414F3 PN/DP CENTRAL PROCESSING UNIT WITH: 4 MB WORKING MEMORY,(2 MB KB CODE, 2 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74143XJ000AB0 | SIMATIC S7-400, CPU 414-3 768 KB WORKING MEMORY(384 KB CODE, 384 KB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2.IF PROFIBUS DP, 3I FOR IFM MODULES PLUGGABLE |
CPU | 6ES74143XJ040AB0 | SIMATIC S7-400, CPU 414-3 CENTRAL PROCESSING UNIT WITH:1.4 MB WORKING MEMORY,(700 KB CODE, 700 KB DATA),1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74143XM050AB0 | SIMATIC S7-400, CPU 414-3 CENTRAL PROCESSING UNIT WITH: 2.8 MB WORKING MEMORY, (1.4 MB CODE, 1.4 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74144HJ000AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH,4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 768 KB MEMORY (384 KB CODE, 384 KB DATA) |
CPU | 6ES74144HJ040AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH,4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 20MB MEMORY |
CPU | 6ES74144HM140AB0 | SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH, 4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 2.8 MB MEMORY (1.4 MB CODE, 1.4 MB DATA) |
CPU | 6ES74162FK020AB0 | SIMATIC S7-400, CPU 416F-2 CENTRAL PROCESSING UNIT WITH: 1.6 MB WORKING MEMORY, (0.8 MB CODE, 0.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE DP, APPLICABLE W. SOFTWARE PACKAGE DISTRIBUTED |
CPU | 6ES74162FK040AB0 | SIMATIC S7-400, CPU 416F-2 CENTRAL PROCESSING UNIT WITH: 2.8 MB WORKING MEMORY, (1.4 MB CODE, 1.4 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP APPLICABLE W. SOFTWARE PACKAGE |
CPU | 6ES74162FN050AB0 | SIMATIC S7-400, CPU 416F-2, CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP APPLICABLE W. SOFTWARE PACKAGE |
CPU | 6ES74162XK010AB0 | SIMATIC S7-400, CPU 416-2 DP CENTRAL PROCESSING UNIT WITH:MULTI-POINT MPI INTERFACE INTEGR. PROFIBUS DP INTERFACE 0.8 MB WORKING MEMORY |
CPU | 6ES74162XK020AB0 | SIMATIC S7-400, CPU 416-2 1.6 MB WORKING MEMORY(0.8 MB CODE, 0.8 MB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2. INTERFACE DP |
CPU | 6ES74162XK040AB0 | SIMATIC S7-400, CPU 416-2 CENTRAL PROCESSING UNIT WITH:2.8 MB WORKING MEMORY,(1.4 MB CODE, 1.4 MB DATA),1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74162XL010AB0 | SIMATIC S7-400, CPU 416-2 DP CENTRAL PROCESSING UNIT WITH:MULTI-POINT MPI INTERFACE |
CPU | 6ES74162XN050AB0 | SIMATIC S7-400, CPU 416-2 CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S |
CPU | 6ES74163ER050AB0 | SIMATIC S7-400, CPU 416-3 PN/DP CENTRAL PROCESSING UNIT WITH:11.2 MB WORKING MEMORY,(5.6 MB KB CODE, 5.6 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S, 2. IF ETHERNET/PROFINET(IF1), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163ES060AB0 | SIMATIC S7-400, CPU 416-3 PN/DP CENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S (X1), 2. IF ETHERNET/PROFINET (X5), 3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163FR050AB0 | SIMATIC S7400, CPU416F3 PN/DP CENTRAL PROCESSING UNIT WITH: 11.2 MB WORKING MEMORY,(5.6 MB KB CODE, 5.6 MB DATA), INTERFACES: 1. IF MPI/DP 12 MBIT/S, 2. IF ETHERNET/PROFINET, 3. IF IM964-DP PLUGGABLE APPLICABLE W. SOFTWARE PACKAGE S7 DISTRIBUTED SA |
CPU | 6ES74163FS060AB0 | SIMATIC S7400, CPU416F3 PN/DP CENTRAL PROCESSING UNIT WITH:16 MB WORKING MEMORY,(8 MB KB CODE, 8 MB DATA),INTERFACES:1. IF MPI/DP 12 MBIT/S (X1),2. IF ETHERNET/PROFINET(X5),3. IF IM964-DP PLUGGABLE (IF1) |
CPU | 6ES74163XL000AB0 | SIMATIC S7-400, CPU 416-3 3.2 MB WORKING MEMORY(1.6 MB CODE, 1.6 MB DATA)1. INTERFACE MPI/DP 12 MBIT/S,2.IF PROFIBUS DP,3.IF IFM MODULES PLUGGABLE |
CPU | 6ES74163XL040AB0 | SIMATIC S7-400, CPU 416-3 CENTRAL PROCESSING UNIT WITH: 5.6 MB WORKING MEMORY, (2.8 MB CODE, 2.8 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74163XR050AB0 | SIMATIC S7-400, CPU 416-3 CENTRAL PROCESSING UNIT WITH: 11.2 MB WORKING MEMORY, (5.6 MB CODE, 5.6 MB DATA), 1. INTERFACE MPI/DP 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3. IF IFM MODULES PLUGGABLE |
CPU | 6ES74174HL010AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 4MB MEMORY (2MB CODE/2MB DATA) |
CPU | 6ES74174HL040AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 20MB MEMORY |
CPU | 6ES74174HT140AB0 | SIMATIC S7-400H, CPU 417H CENTRAL UNIT FOR S7-400H 4 INTERFACES: 1 MPI/DP, 1 DP A. 2 FOR SYNC MODULES 30MB MEMORY (15 MB CODE/15 MB DATA) |
CPU | 6ES74174XL000AB0 | SIMATIC S7-400, CPU 417-4 4MB USER MEMORY(2MB CODE; 2 MB DATA)1ST INTERF. = MPI 12 MBIT/S;2ND INTERF. = PROFIBUS DP;3RD AND 4TH |
CPU | 6ES74174XL040AB0 | SIMATIC S7-400, CPU 417-4 CENTRAL PROCESSING UNIT WITH:20MB WORKING MEMORY,(10 MB CODE; 10 MB DATA),1. INTERFACE MPI 12 MBIT/S; |
CPU | 6ES74174XT050AB0 | SIMATIC S7-400, CPU 417-4 CENTRAL PROCESSING UNIT WITH: 30 MB WORKING MEMORY, (15 MB CODE; 15 MB DATA) 1. INTERFACE MPI 12 MBIT/S, 2. INTERFACE PROFIBUS DP, 3/4. IF IFM MODULES PLUGGABLE |
MMC Card | 6ES79520AF000AA0 | RAM, 64 KB |
MMC Card | 6ES79521AH000AA0 | RAM, 256 KB |
MMC Card | 6ES79521AK000AA0 | RAM, 1 MB |
MMC Card | 6ES79521AL000AA0 | RAM, 2 MB |
MMC Card | 6ES79521AM000AA0 | RAM, 4 MB |
MMC Card | 6ES79521AP000AA0 | RAM, 8 MB |
MMC Card | 6ES79521AS000AA0 | RAM, 16 MB |
MMC Card | 6ES79521AY000AA0 | RAM, 64 MB |
MMC Card | 6ES79520KF000AA0 | FLASH-EPROM, 64 KB |
MMC Card | 6ES79520KH000AA0 | FLASH-EPROM, 256 KB |
MMC Card | 6ES79521KK000AA0 | FLASH-EPROM, 1 MB |
MMC Card | 6ES79521KL000AA0 | FLASH-EPROM, 2 MB |
MMC Card | 6ES79521KM000AA0 | FLASH-EPROM, 4 MB |
MMC Card | 6ES79521KP000AA0 | FLASH-EPROM, 8 MB |
MMC Card | 6ES79521KS000AA0 | FLASH-EPROM, 16 MB |
MMC Card | 6ES79521KT000AA0 | FLASH-EPROM, 32 MB |
MMC Card | 6ES79521KY000AA0 | FLASH-EPROM, 64 MB |
Communication Module Functional Module | 6ES74401CS000YE0 | SIMATIC S7-400, CP 440-1 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S1 CHANNEL INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74411AA040AE0 | SIMATIC S7-400, CP 441-1 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S1 CHANNEL INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74412AA040AE0 | SIMATIC S7-400, CP 441-2 COMMUNICATIONS MODULE FOR POINT TO POINT CONNECTION S2 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74441MX000XE0 | SIMATIC S7-400, COMMUNIC.MODULE CP 444 MAP FOR CONNECTION OFS/-400 TO INDUSTRIAL ETHERNETW. MAP 3.0 PROTOCOLA |
Communication Module Functional Module | 6ES74501AP000AE0 | SIMATIC S7-400, FM 450-1 FUNCTION MODULE F. COUNT.FUNCT.WITH 2 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74513AL000AE0 | SIMATIC S7-300, FM 451 POSITIONING MODULE FOR RAPID/CREEP FEED DRIVE3 CHANNELS INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74521AH000AE0 | PACKAGE ON CD |
Communication Module Functional Module | 6ES74533AH000AE0 | SIMATIC S7-400, FM 453 FUNCTION MODULE FOR POSITIONING WITH SERVO AND STEPPER MOTORS(3 CHANNELS)INCL. CONFIG. PACKAGE ON CD |
Communication Module Functional Module | 6ES74550VS000AE0 | AI + 16 DI + 16 AO |
Communication Module Functional Module | 6ES74551VS000AE0 | 8/16 AI + 16 DI + 32 DO |
