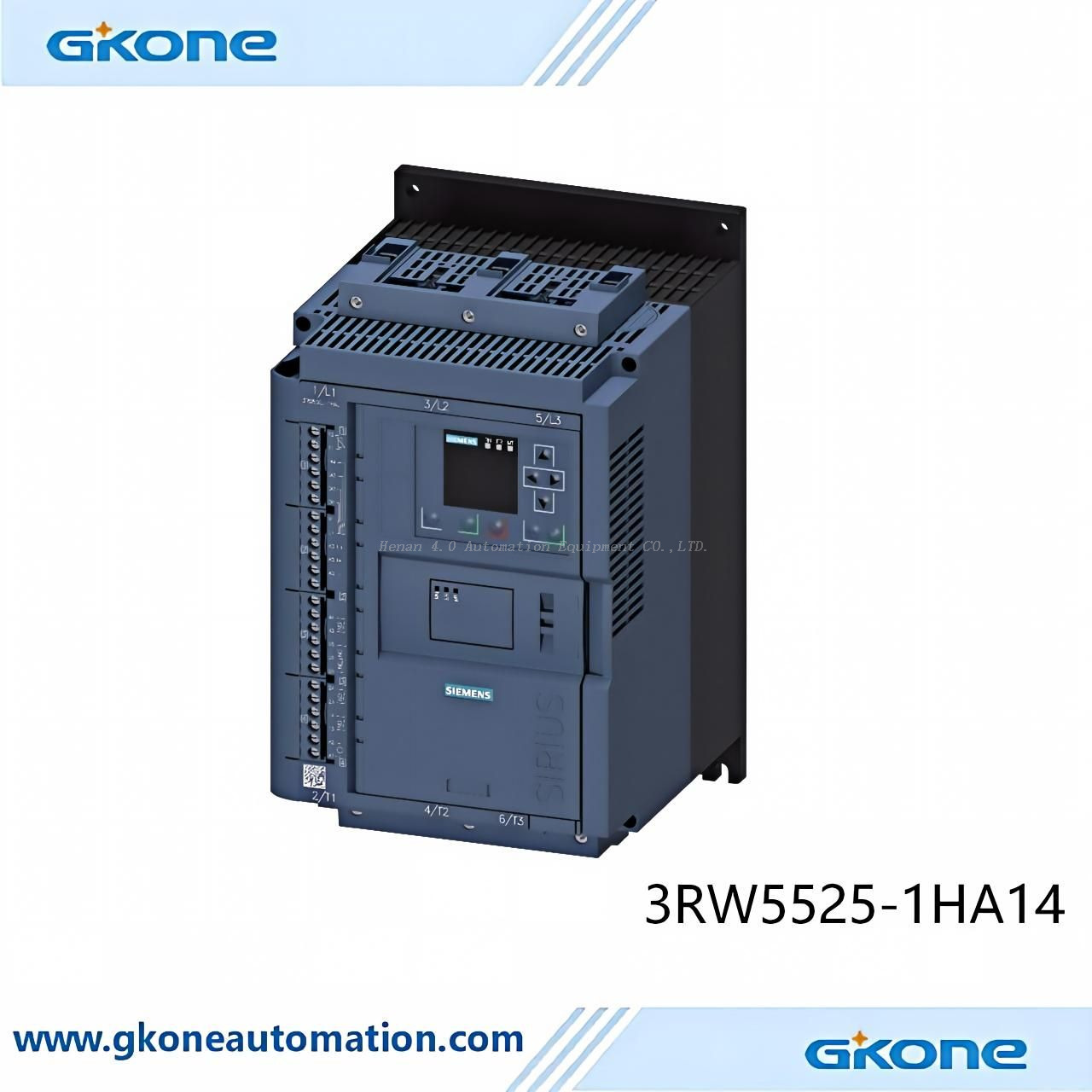

Siemens 3RW5525-1HA14 SIRIUS 3RW55 soft starter 110-250V screw terminals
2. Electrical and Power Parameters: Operational current 77 A (at 40 °C); rated operational power 45 kW at 400 V (standard circuit) / up to 133 A in an inside-delta circuit.
3. Control and Intelligence: Automatic parameterization, integrated bypass contact system, and an advanced HMI with a color display and analog output.
4. Application Areas: Ideal for heavy-duty applications, including pumps, fans, compressors, centrifuges, and conveyors.
-
3RW5525-1HA14
-
Siemens
| Quantity: | |
|---|---|
3RW5525-1HA14
The Siemens 3RW5525-1HA14 is a high-performance soft starter from the SIRIUS 3RW55 series, specifically designed for the smooth starting and stopping of high-power three-phase asynchronous motors. In a standard connection configuration, the device has a rated operating current of 77 A (corresponding to a power of 45 kW at 400 V) and features an integrated bypass system, automatic parameterization, torque control, and a detachable color display (HMI). When used with critical equipment such as pumps, fans, and industrial compressors, it provides excellent protection and enables efficient energy savings.
1.Technical Parameters:
Technical Parameters | Specifications & Details |
Product Model Number | 3RW5525-1HA14 |
Product Family | Siemens SIRIUS 3RW55 (High Performance) |
Device Type | High Performance Motor Soft Starter |
Rated Operational Current | 77 A (at 40 °C, inline circuit) / 133 A (inside-delta) |
Rated Power (at 400V) | 45 kW (inline) / 75 kW (inside-delta) |
Operating Voltage | Main circuit: 200 - 480 V AC; Control: 110 - 250 V AC |
Bypass System | Integrated internal bypass contact system |
Connection Type | Screw terminals |
