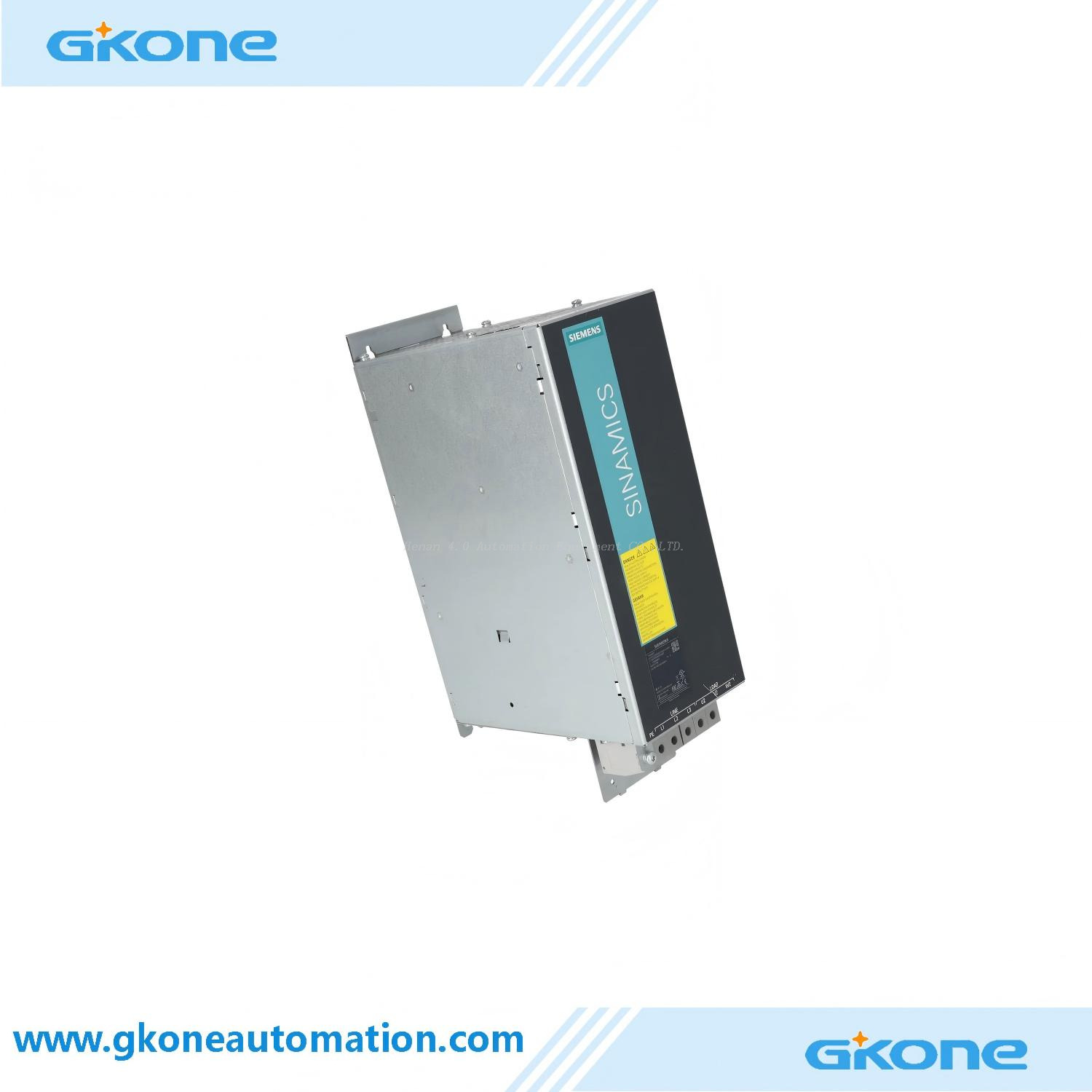

Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 36kW Active Interface Module

6SL3100-0BE23-6AB0

The 6SL3100-0BE23-6AB0 36kW Active Interface Module is an essential line-side component in SINAMICS S120 drive configurations utilizing Active Line Modules. It is extensively applied in high-precision CNC machine tools, automated packaging lines, multi-axis gantry robots, and material handling systems where regenerative power feedback is present. By filtering line harmonics and smoothing grid interactions, this AIM module delivers stable electrical performance and extends drive system longevity.

Key Features & Technical Specifications

• 36kW Power Matching: Rated for 36 kW continuous power to match corresponding SINAMICS S120 Active Line Modules (ALM).

• Clean Power Filtering: Features integrated line reactors and filter components to suppress high-frequency line harmonics.

• EMC Standard Compliance: Ensures system compliance with EN 61800-3 category C2 emission limits under standard grid conditions.

• Integrated Precharging Circuit: Limits line inrush currents during system power-up to safeguard DC link capacitors.

• Booksize Form Factor: Compact Booksize enclosure matches the dimensional profile of S120 drive rows for clean cabinet integration.

• Internal Air Cooling: Onboard thermal management uses controlled air circulation to dissipate operational heat effectively.

• Grid Protection: Shields the internal drive topology from external line voltage spikes and grid transients.

Advantage

1.We are a certified system integrator holding an official Siemens PI license/certificate.

2.Short delivery times, guaranteed product quality, and a 2-year warranty.

3.We at GKone own our own factory, which allows us to stock standard Siemens models and manufacture industrial control cabinets.

4.Factory staff are trained in packaging, ensuring secure packing.
