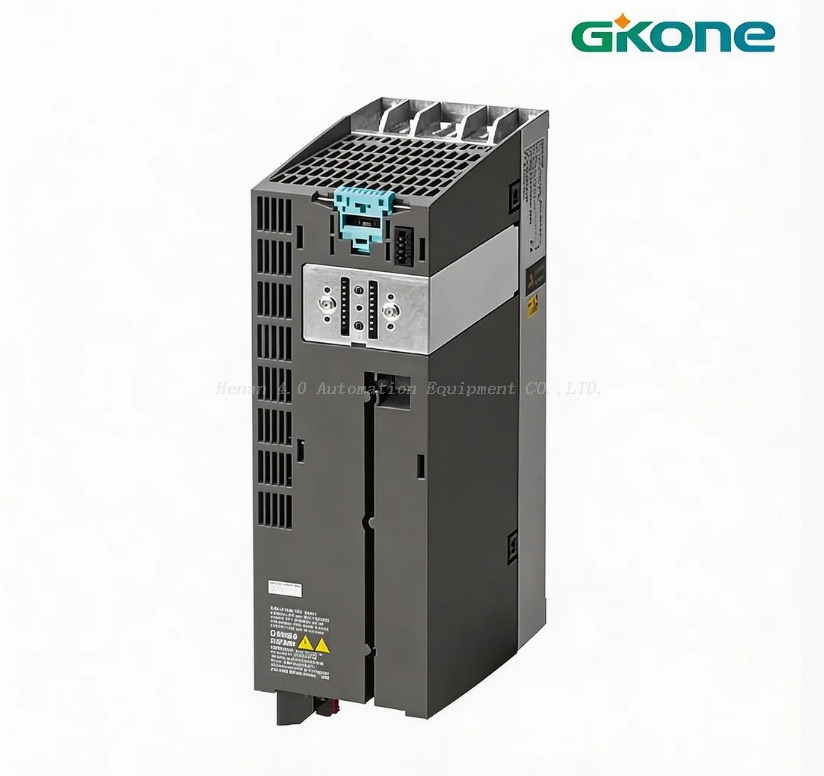

Siemens 6SL3210-1PB15-5AL0 SINAMICS G120 PM240-2 Power Module | 1.1kW 200-240V 1/3-Phase Inverter with Class A Filter & Braking Chopper

Product Overview

The Siemens 6SL3210-1PB15-5AL0 is a compact, high-performance power module from the SINAMICS G120 PM240-2 series, designed for cost-effective and reliable speed control of 3-phase AC motors. Accepts both single-phase and 3-phase 200-240V input, with dual power ratings (1.1kW low overload / 0.75kW high overload) to match diverse load demands. Integrated with Class A EMC filter and braking chopper, plus STO safety, it’s an all-in-one drive solution for global industrial applications.

Key Features & Advantages

1. Dual Power & Overload Capacity：1.1kW (6A) low overload (150% for 57s); 0.75kW (4.2A) high overload (200% for 3s), suitable for heavy-duty start-stop and dynamic loads。

2. Wide Input Compatibility：Supports 1-phase/3-phase 200-240V AC (±10%), 47-63Hz, adaptable to global low-voltage power grids。

3. Built-in EMC Filter & Brake Chopper：Integrated Class A EMC filter reduces electromagnetic interference; integrated braking chopper enables fast deceleration and regenerative load control。

4. Advanced Safety Function：Equipped with STO (Safe Torque Off) safety function, complying with EN ISO 13849-1 PL d, ensuring safe motor shutdown in critical situations。

5. Compact FSB Size & IP20 Protection：FSB compact dimensions (291×100×165mm); IP20 protection against dust and solid objects, ideal for space-constrained control cabinets。

6. High Efficiency & Reliability：96% energy efficiency; internal air cooling; wide temperature range (-5°C to +50°C for HO), ensuring stable long-term operation。

7. Flexible Control Modes：Supports V/f control (0-550Hz) and vector control (0-240Hz); compatible with CU230-2/CU240x-2/CU250S-2 control units for flexible system integration。

8. Comprehensive Protection：Overvoltage, undervoltage, overload, short-circuit, ground fault, stall and motor over-temperature protection, safeguarding drive and motor。

Advantage

1. We are an officially authorized Siemens distributor. We guarantee that all products are brand-new and original, backed by a one-year warranty. We offer reasonable pricing and delivery lead times, and we also operate our own manufacturing facility.

2. Siemens Quality Assurance：G120 series global proven design, strict German quality control, reliable for 24/7 industrial operation。

3. All-in-One Integration：Built-in filter and chopper eliminate external components, reducing installation cost and space。

4. Cost-Effective Performance：Dual power ratings cover light/heavy loads; high efficiency reduces energy consumption and operational costs。

5. Easy Integration & Maintenance：Modular G120 system; plug-in screw terminals; simple parameter setting and fault diagnosis, minimizing downtime。

6. Global Support & Compatibility：Compatible with Siemens TIA Portal; worldwide technical support and spare parts supply。
