Siemens G120c Inverter 6SL3210-1KE11-8AF2 SINAMICS G120C PN 0,55KW FILA 380-480V
2. Electrical Specifications: 3-phase AC input (380–480 V), 0.55 kW rated power, integrated safety functions (STO).
3. Communication and Control: Built-in support for USS and Modbus RTU protocols; easy parameter setup via BOP-2 unit or Startdrive software.
4. Application Areas: Ideal for pumps, fans, compressors, conveyor belts, and general machinery manufacturing.
-
6SL3210-1KE11-8AF2
-
Siemens
| Quantity: | |
|---|---|
6SL3210-1KE11-8AF2

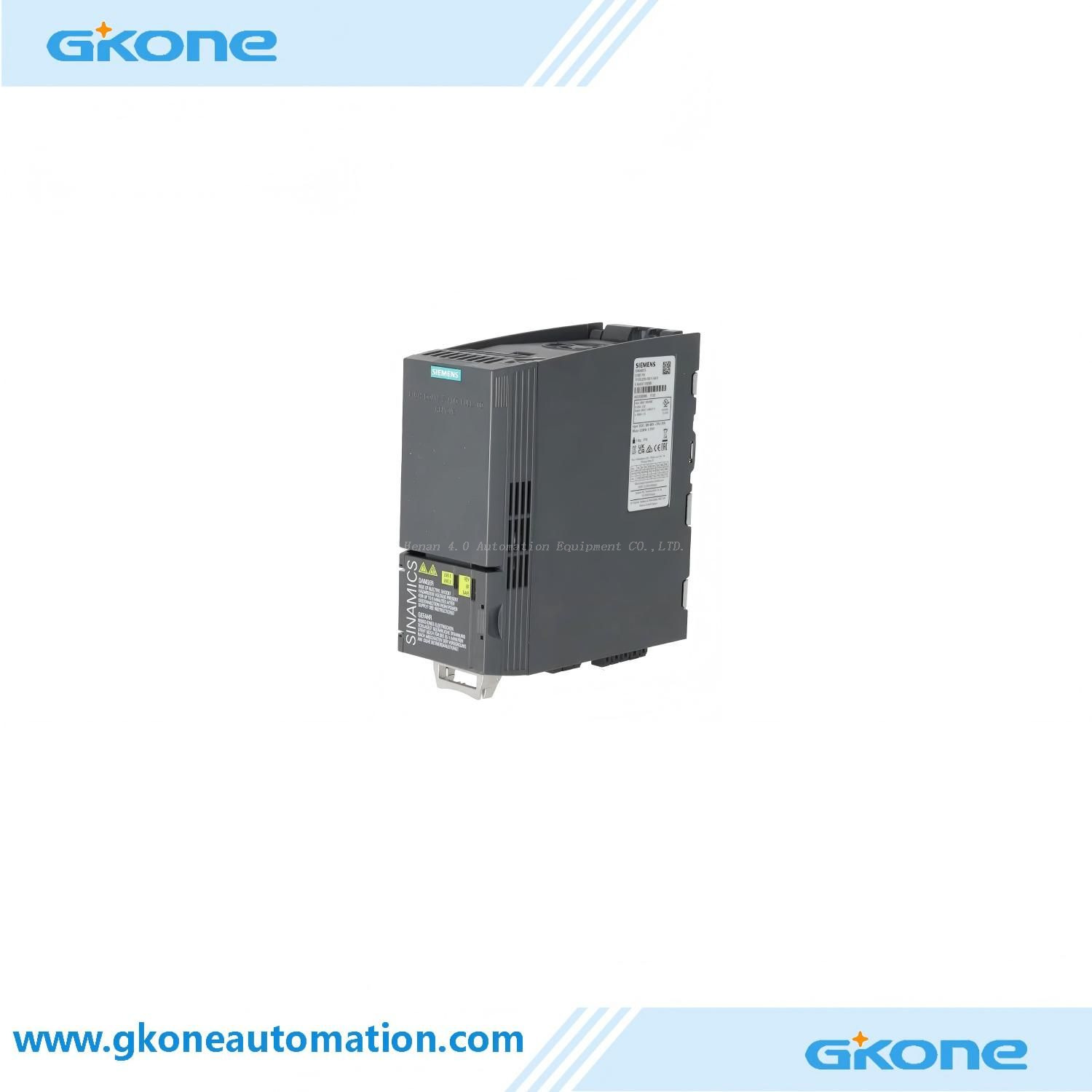

The Siemens 6SL3210-1KE11-8AF2 is a compact, high-efficiency variable frequency drive from the SINAMICS G120C series, designed to provide precise and cost-effective speed control. This versatile AC drive operates on a 380–480 V AC three-phase input and has a rated power of 0.55 kW. Featuring integrated safety functions (such as STO), native support for the Modbus RTU communication protocol, and a compact design, it is an ideal solution for general machinery applications, pumps, and conveyor systems.
Technical Parameters | Specifications & Details |
|---|---|
Product Model Number | 6SL3210-1KE11-8AF2 |
Product Family Name | Siemens SINAMICS G120C |
Device Type | Compact AC Inverter / VFD |
Rated Power | 0.55 kW (0.75 hp) |
Input Voltage | 3-Phase 380 - 480 V AC (+10% / -20%) |
Communication Interface | USS, MODBUS RTU |
Safety Function | Safe Torque Off (STO) integrated |
Enclosure Protection | IP20 / UL Open Type |
Common Module
G120C Integrated inverter | |||||
MLFB | Rated power | Rated output current | Rated power | Rated output current (HO) | Overall dimension FS |
Standard Edition | 3AC 380-480V Normal Form | ||||
6SL3210-1KE11-8UF2 | 0.55 | 1.7 | 0.37 | 1.3 | FSAA |
6SL3210-1KE12-3UF2 | 0.75 | 2.2 | 0.55 | 1.7 | FSAA |
6SL3210-1KE13-2UF2 | 1.1 | 3.1 | 0.75 | 2.2 | FSAA |
6SL3210-1KE14-3UF2 | 1.5 | 4.1 | 1.1 | 3.1 | FSAA |
6SL3210-1KE15-8UF2 | 2.2 | 5.6 | 1.5 | 4.1 | FSAA |
6SL3210-1KE17-5UF1 | 3 | 7.3 | 2.2 | 5.6 | FSA |
6SL3210-1KE18-8UF1 | 4 | 8.8 | 3 | 7.3 | FSA |
6SL3210-1KE21-3UF1 | 5.5 | 12.5 | 4 | 8.8 | FSB |
6SL3210-1KE21-7UF1 | 7.5 | 16.5 | 5.5 | 12.5 | FSB |
6SL3210-1KE22-6UF1 | 11 | 25 | 7.5 | 16.5 | FSB |
6SL3210-1KE23-2UF1 | 15 | 31 | 11 | 25 | FSC |
6SL3210-1KE23-8UF1 | 18.5 | 37 | 15 | 31 | FSC |
6SL3210-1KE24-4UF1 | 22 | 43 | 18.5 | 37 | FSD |
6SL3210-1KE26-0UF1 | 30 | 58 | 22 | 43 | FSD |
6SL3210-1KE27-0UF1 | 37 | 68 | 30 | 58 | FSD |
6SL3210-1KE28-4UF1 | 45 | 83 | 37 | 68 | FSD |
6SL3210-1KE31-1UF1 | 55 | 103 | 45 | 83 | FSE |
6SL3210-1KE31-4UF1 | 75 | 136 | 55 | 103 | FSF |
6SL3210-1KE31-7UF1 | 90 | 164 | 75 | 136 | FSF |
6SL3210-1KE32-1UF1 | 110 | 201 | 90 | 164 | FSF |
6SL3210-1KE32-4UF1 | 132 | 237 | 110 | 201 | FSF |
