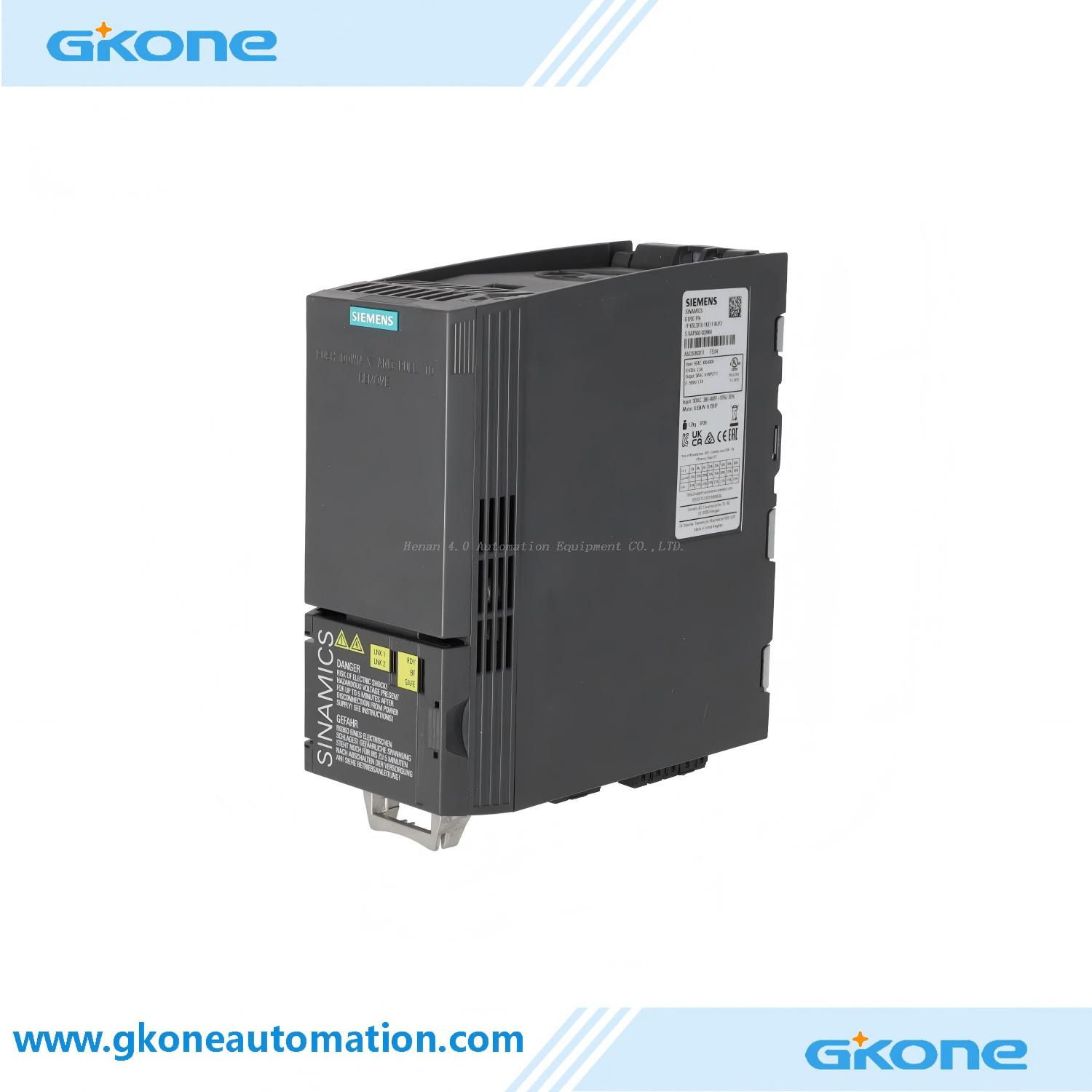

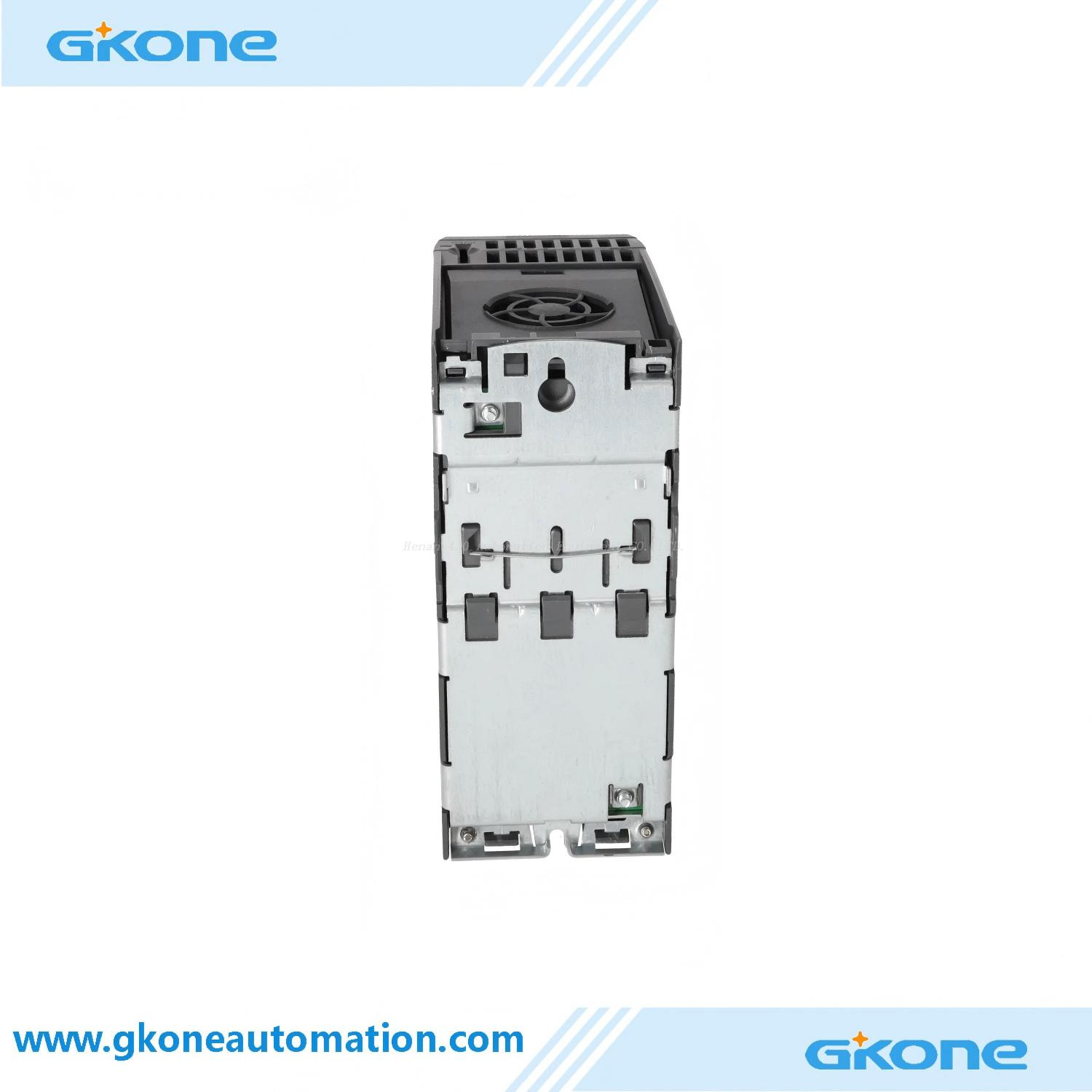

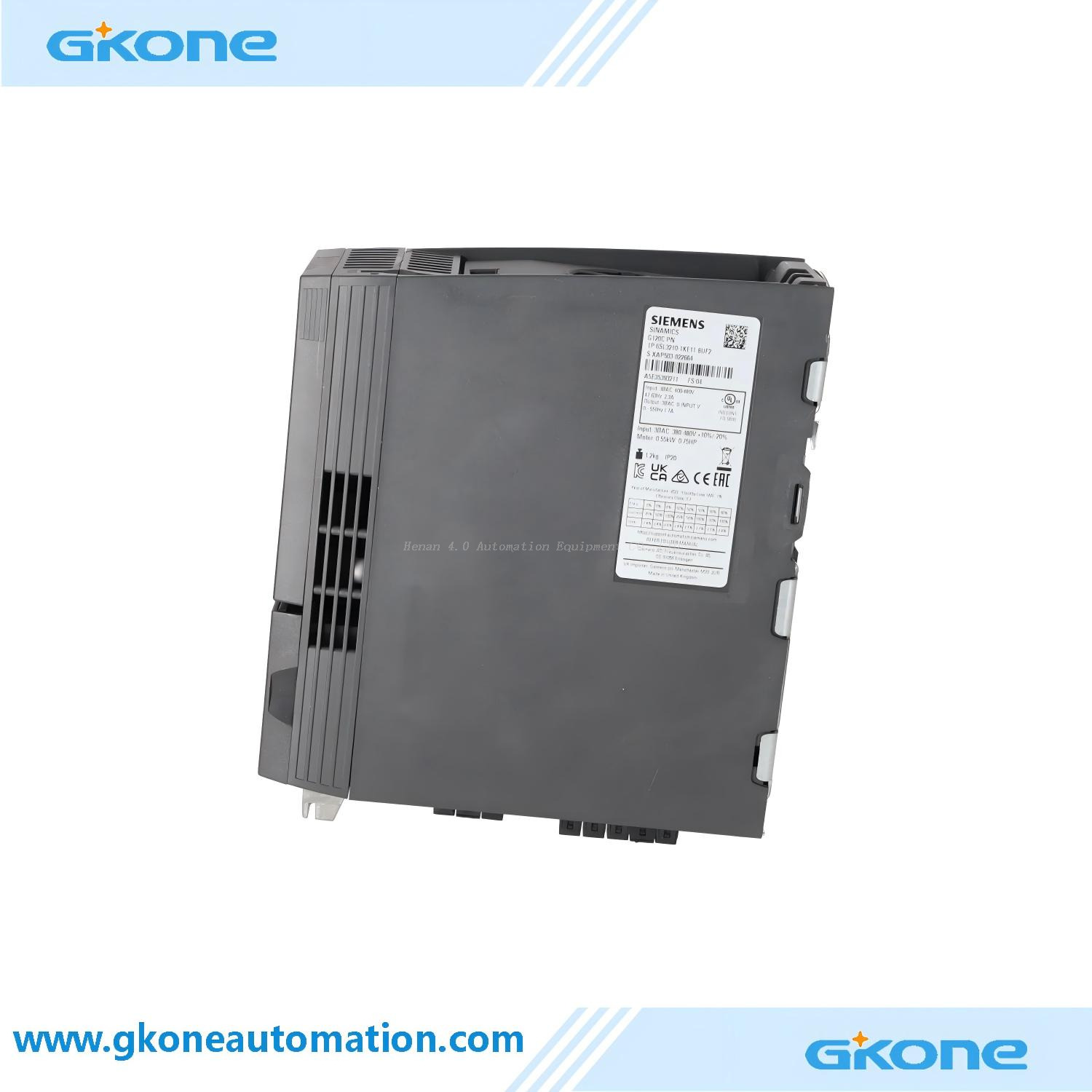

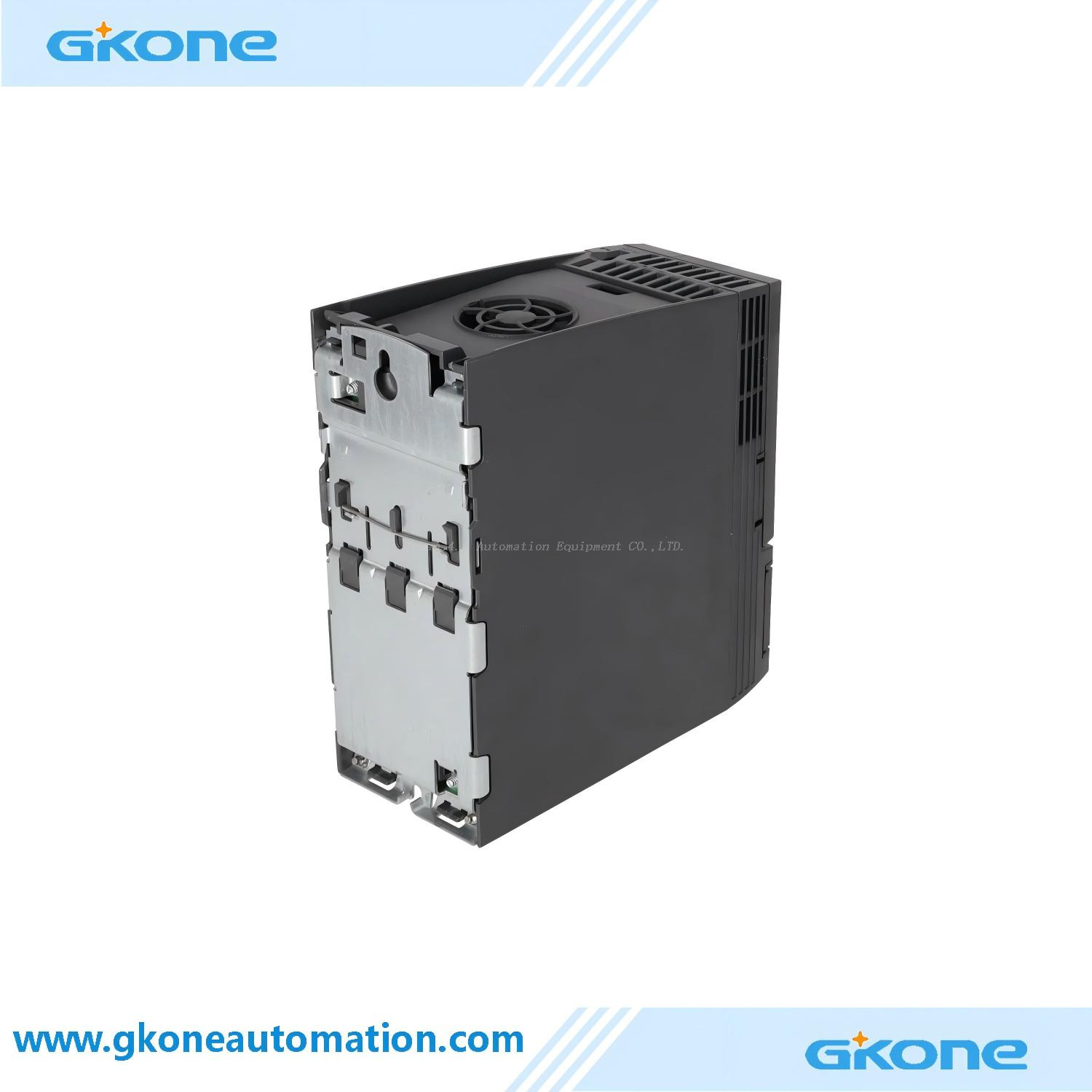

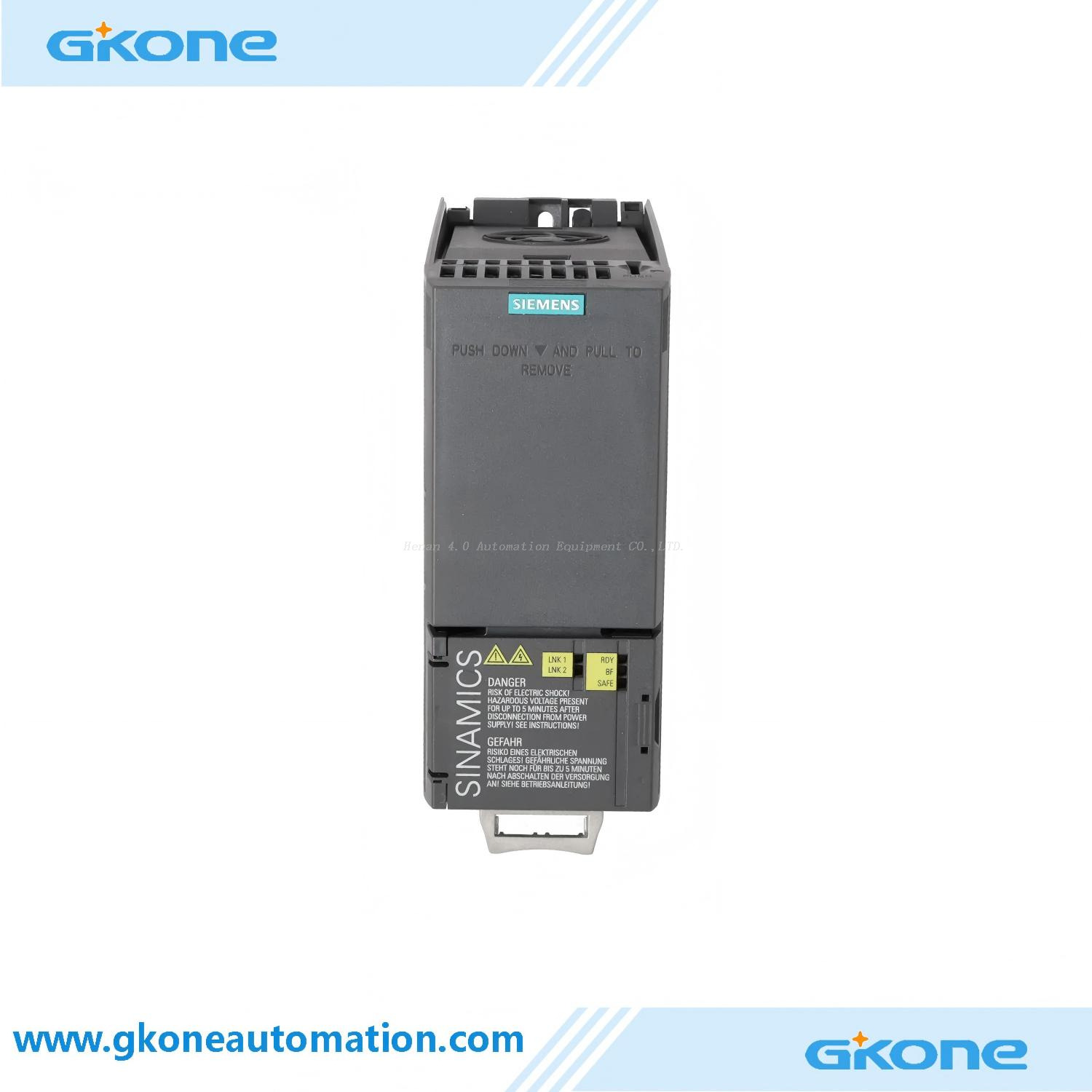

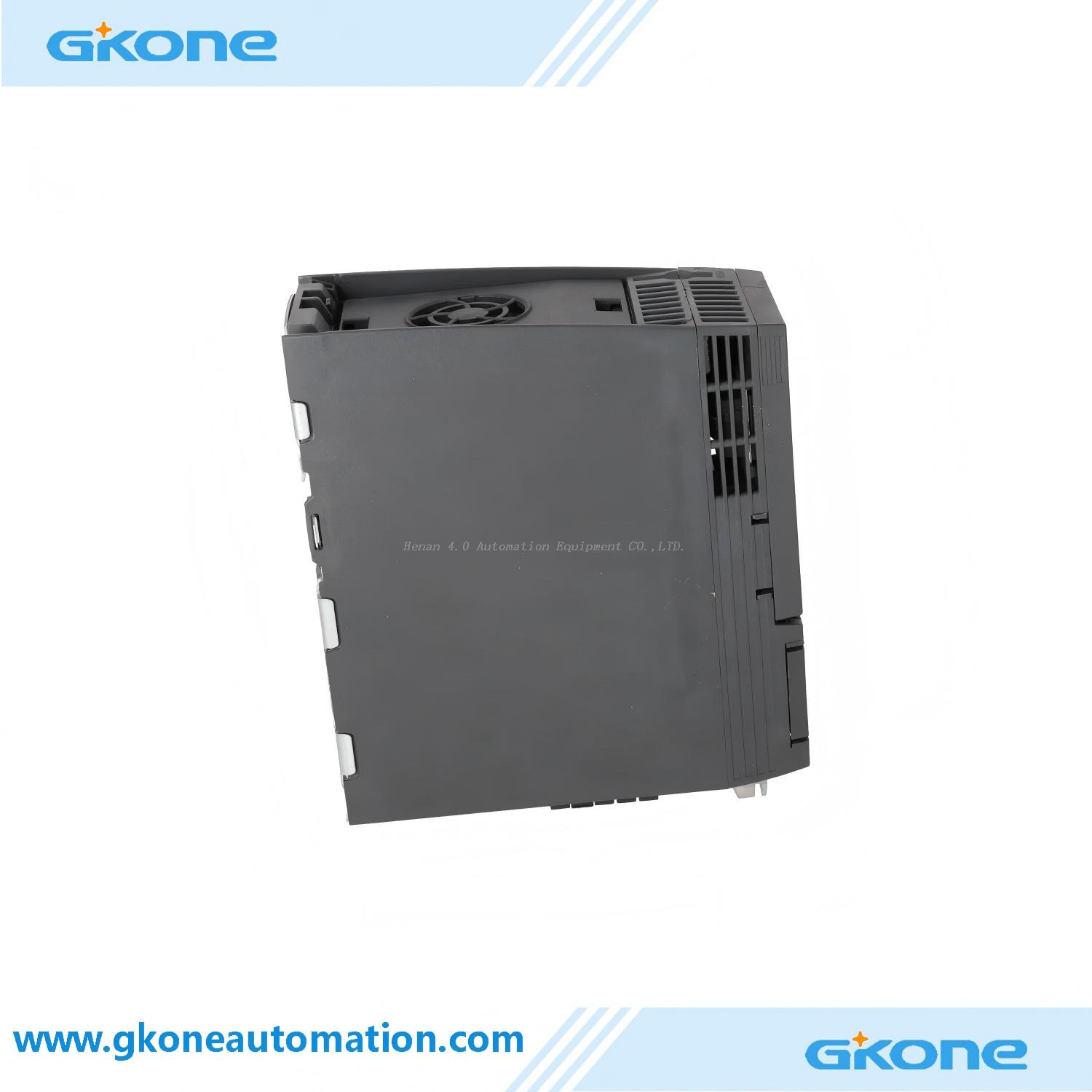

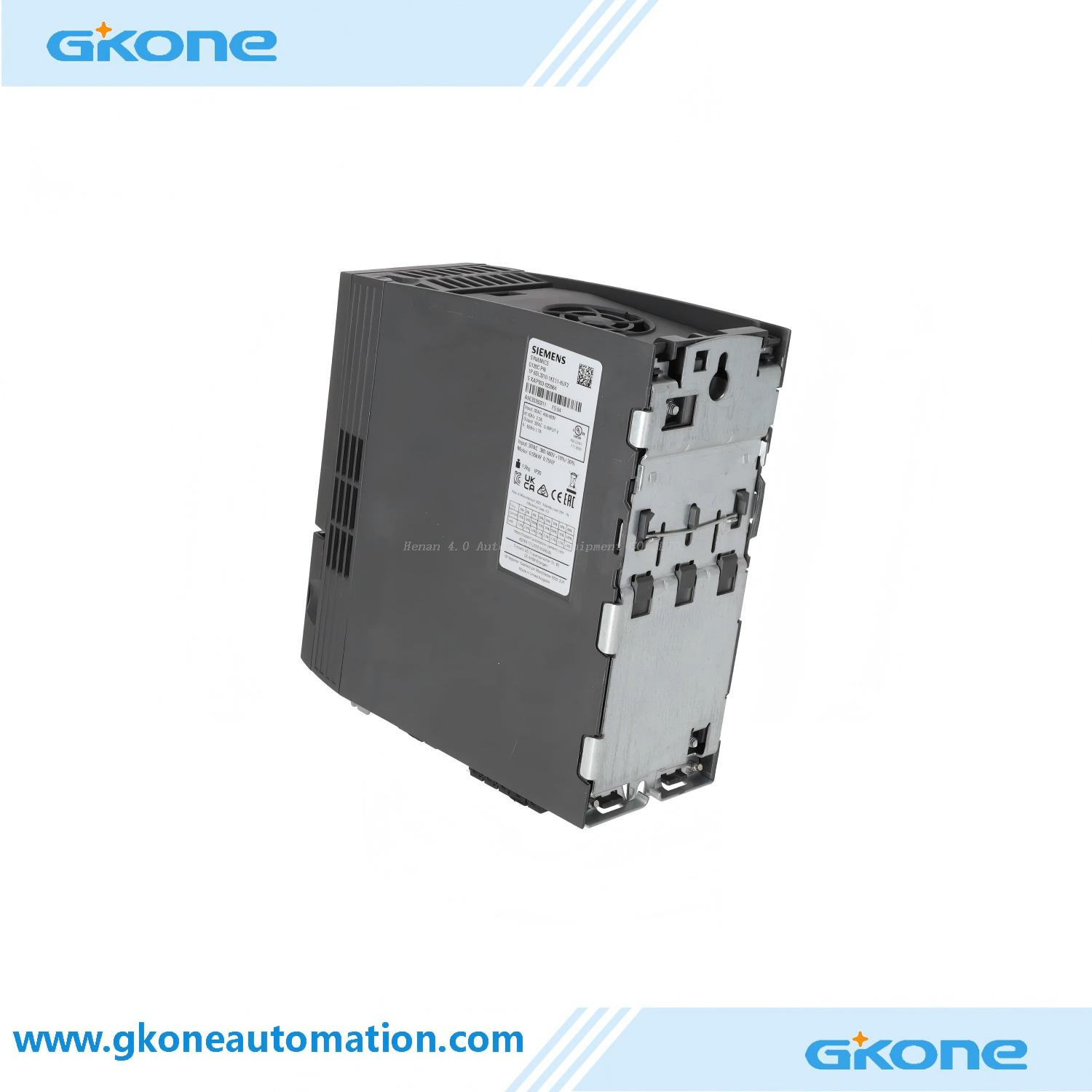

Siemens SINAMICS G120C inverter 6SL3210-1KE11-8UF2 0.55kW Unfiltered 3-Phase 400V AC drive
-
6SL3210-1KE11-8UF2
-
Siemens
| Quantity: | |
|---|---|
Key Features & Technical Specifications
Power Rating: 0.55 kW / 0.75 HP (supports standard industrial overload capabilities).
Input Voltage: 3-Phase 380V to 480V AC (+10% / -20%), 47/63 Hz.
Frame Size: FSAA (Siemens' ultra-compact design for extreme space savings).
EMC Filter: Unfiltered version (1KE11-8UF2 specific design).
Control Interfaces: Features 6 Digital Inputs (DI), 2 Digital Outputs (DO), 1 Analog Input (AI), and 1 Analog Output (AO).
Cooling Design: Efficient power loss dissipation via an internal fan.
Bus Communication: Integrated PROFINET-PN fieldbus for high-speed industrial networking.
Integrated Safety: Embedded Safe Torque Off (STO) safety function via hardware terminals.
Applications
Thanks to its micro-size footprint and robust vector control, the 6SL3210-1KE11-8UF2 drive is heavily utilized in small-scale machinery and automated conveyor segments. It is perfectly suited for regulating small centrifugal pumps, industrial ventilation fans, packaging belt networks, and material handling systems. Wherever dependable speed control and a minimal cabinet footprint are required, this 0.55kW SINAMICS G120C drive delivers optimal cost-performance efficiency.
SINAMICS G120C
Part Number | Rated Power (kW) | Input Voltage | Communication | Net Weight (kg) |
6SL3210-1KE12-3UF2 | 0.75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE13-2UF2 | 1.1 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE14-3UF2 | 1.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE15-8UF2 | 2.2 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE17-5UF1 | 3 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE18-8UF1 | 4 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE21-3UF1 | 5.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE21-7UF1 | 7.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE22-6UF1 | 11 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-2UF1 | 15 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-8UF1 | 18.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE24-4UF1 | 22 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 35 |
6SL3210-1KE26-0UF1 | 30 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 50 |
6SL3210-1KE27-0UF1 | 37 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE28-4UF1 | 45 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 120 |
6SL3210-1KE31-1UF1 | 55 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 27 |
6SL3210-1KE31-4UF1 | 75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 45 |
6SL3210-1KE31-7UF1 | 90 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 55 |
6SL3210-1KE32-1UF1 | 110 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE32-4UF1 | 132 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 85 |
