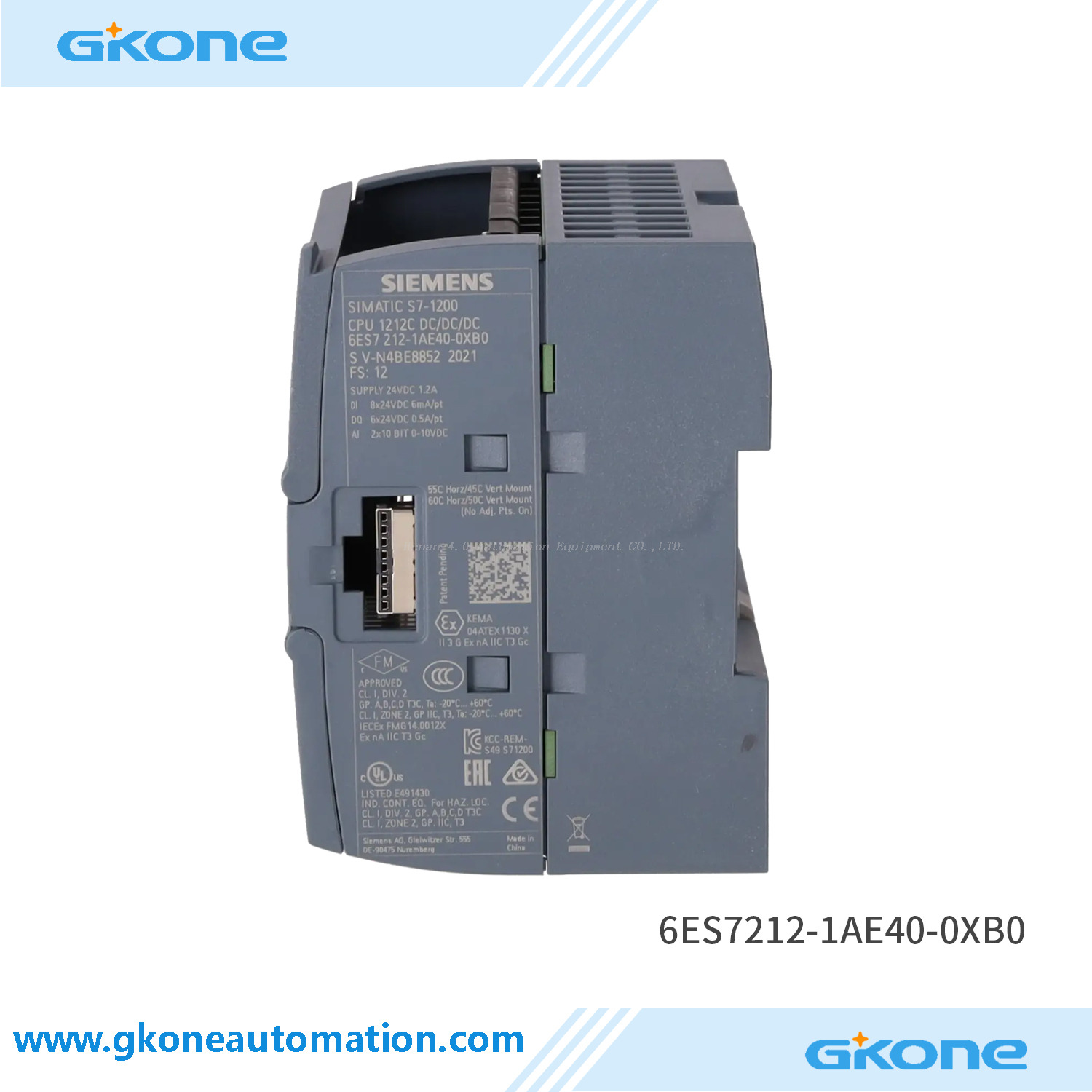

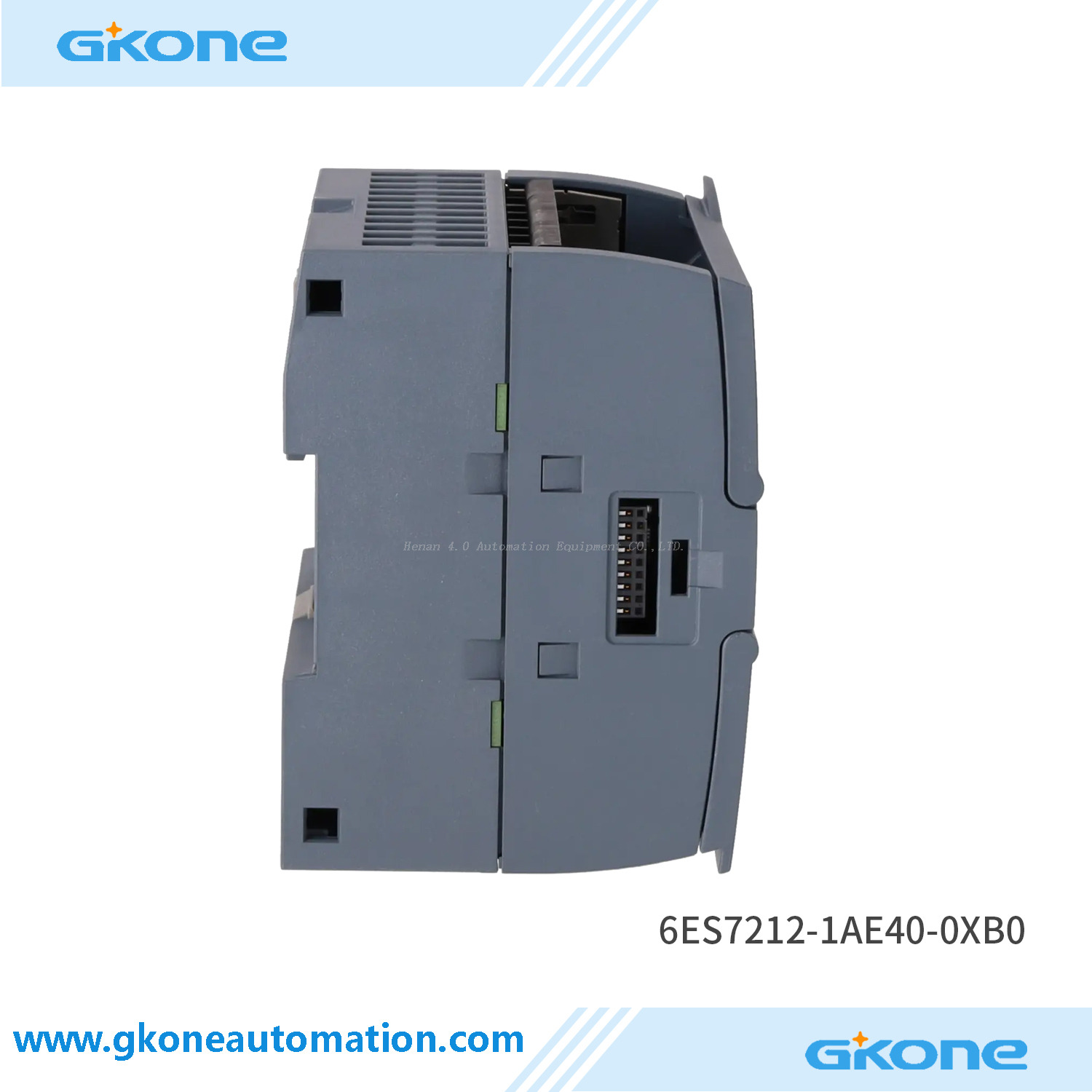

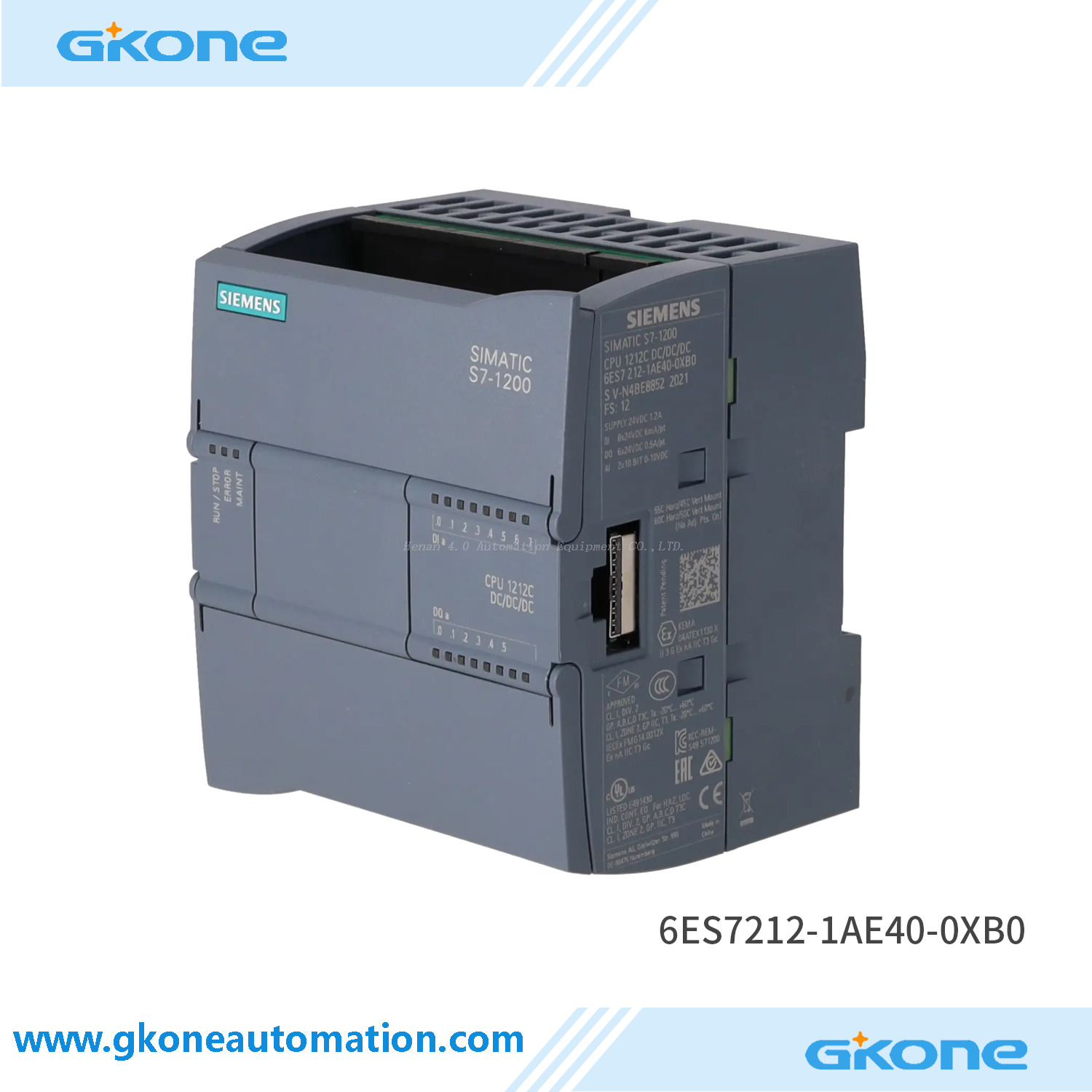

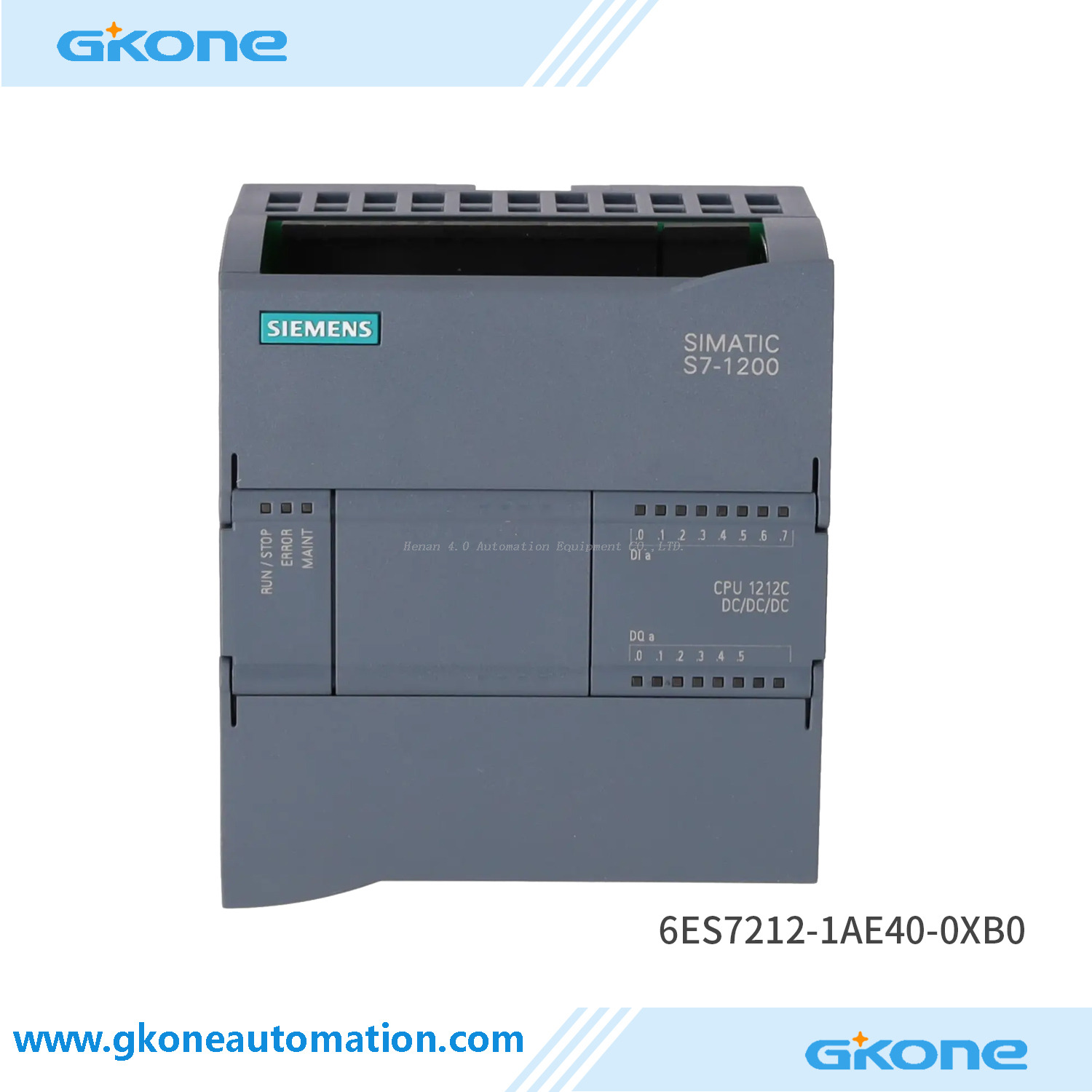

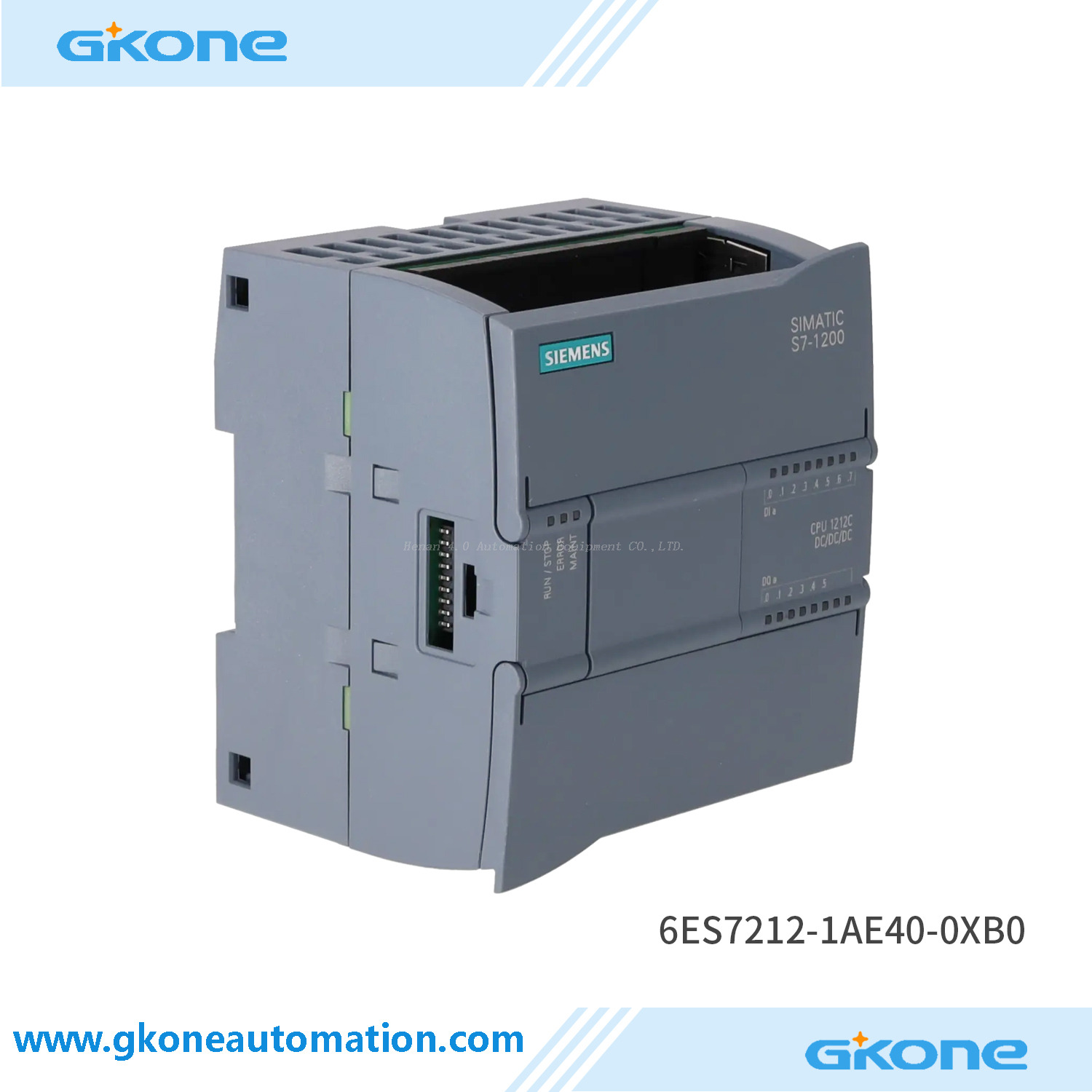

Original Siemens PLC Module 6ES7212-1AE40-0XB0 S7-1200 PLC Compact CPU - Brand New Original

• Product Overview

Engineered for cost-effective industrial applications, the 6ES72121AE400XB0 module operates entirely on a 24V DC power supply, featuring 24V DC inputs and 24V DC transistor outputs. With a integrated 75 KB work memory, this hardware supports flexible expansion via additional signal boards (SB) or signal modules (SM), making it a dependable backbone for standalone automated systems.

• Key Features & Technical Specifications

• CPU Design: CPU 1212C Compact Controller.

• Supply Voltage: 24 V DC (acceptable range 20.4V to 28.8V DC).

• Onboard I/O Configuration:

1. igital Inputs: 8 channels, 24 V DC (integrated high-speed counters capability).

2. Digital Outputs: 6 channels, 24 V DC transistor outputs.

3. Analog Inputs: 2 channels, 0 to 10 V DC integrated.

• Memory Capacity: 75 KB integrated work memory, 2 MB load memory, and up to 10 KB retentive data storage.

• Interface Protocol: 1 Ethernet/PROFINET port supporting TCP/IP, ISO-on-TCP, and S7 communication.

• High-Speed Counters: 4 integrated high-speed counters (HSC) up to 100 kHz for precise position tracking.

• Pulse Outputs: 4 integrated pulse outputs (PTO/PWM) up to 100 kHz for driving stepper or servo motors.

• Applications

Thanks to its embedded high-speed counters and transistor outputs, the 6ES7212-1AE40-0XB0 controller is widely deployed in small-scale standalone machinery and decentralized automation setups. It is perfectly suited for regulating packaging equipment, small sorting conveyor systems, building climate control stations, and continuous dosing pumps. Wherever compact space, dynamic positioning, and flexible networking are needed, this S7-1200 CPU provides robust performance.
