Siemens 6SL3210-1KE11-8AP2 SINAMICS G120C 0.55kW PROFINET Compact Drive
-
6SL3210-1KE11-8AP2
-
Siemens
| Quantity: | |
|---|---|
Product Overview

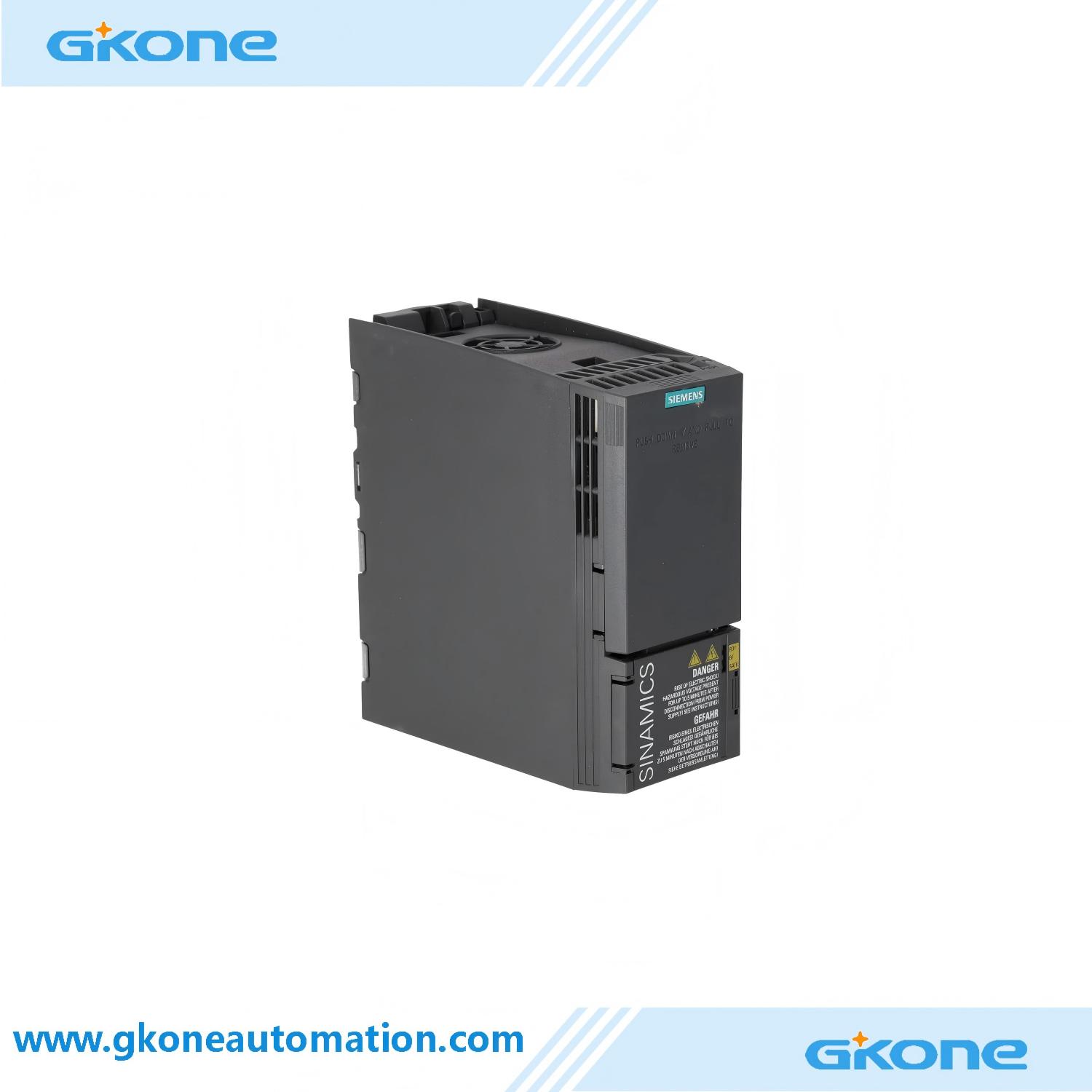

The Siemens 6SL3210-1KE11-8AP2 is a highly compact SINAMICS G120C frequency inverter rated at 0.55 kW (0.75 hp) for three-phase AC 380–480V applications. Built on the ultra-compact Frame Size A (FSA) housing without an integrated filter, it features onboard dual-port PROFINET communication and Safe Torque Off (STO) functionality. Designed for tight enclosure layouts, it provides efficient, energy-saving speed control for standard induction motors in OEM machinery.
Key Features & Technical Specifications
0.55 kW Power Output: Delivers 0.55 kW / 0.75 hp continuous power for 3-phase AC 380–480V motor speed regulation.
FSA Frame Profile: Features the space-saving Frame Size A (FSA) footprint with side-by-side mounting capability.
Onboard PROFINET: Equipped with dual PROFINET / Ethernet/IP ports for seamless PLC integration and daisy-chaining.
Unfiltered Variant: Non-filtered configuration provides flexibility for specialized line setups or external EMC filter pairing.
Safety Integrated (STO): Includes built-in Safe Torque Off (STO) via terminal/network to simplify functional safety loops.
Vector Control Performance: Advanced sensorless vector control algorithm guarantees optimal torque at low operating speeds.
Plug-and-Play Setup: Supports quick commissioning via BOP-2 operator panel, IOP-2, or TIA Portal software interface.
Applications
The 6SL3210-1KE11-8AP2 G120C inverter is widely utilized in compact OEM industrial equipment requiring precise speed control and smart fieldbus connectivity. It serves as an optimal drive for small conveyor belts, centrifugal pumps, industrial ventilation fans, agitators, and automatic packaging machinery. By combining safety functions, dual-port PROFINET, and high power density in an FSA footprint, this SINAMICS G120C drive minimizes cabinet space and total hardware expenditure.
SINAMICS G120C
Part Number | Rated Power (kW) | Input Voltage | Communication | Net Weight (kg) |
6SL3210-1KE12-3UF2 | 0.75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE13-2UF2 | 1.1 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE14-3UF2 | 1.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE15-8UF2 | 2.2 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE17-5UF1 | 3 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE18-8UF1 | 4 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE21-3UF1 | 5.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE21-7UF1 | 7.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE22-6UF1 | 11 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-2UF1 | 15 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-8UF1 | 18.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE24-4UF1 | 22 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 35 |
6SL3210-1KE26-0UF1 | 30 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 50 |
6SL3210-1KE27-0UF1 | 37 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE28-4UF1 | 45 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 120 |
6SL3210-1KE31-1UF1 | 55 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 27 |
6SL3210-1KE31-4UF1 | 75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 45 |
6SL3210-1KE31-7UF1 | 90 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 55 |
6SL3210-1KE32-1UF1 | 110 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE32-4UF1 | 132 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 85 |
