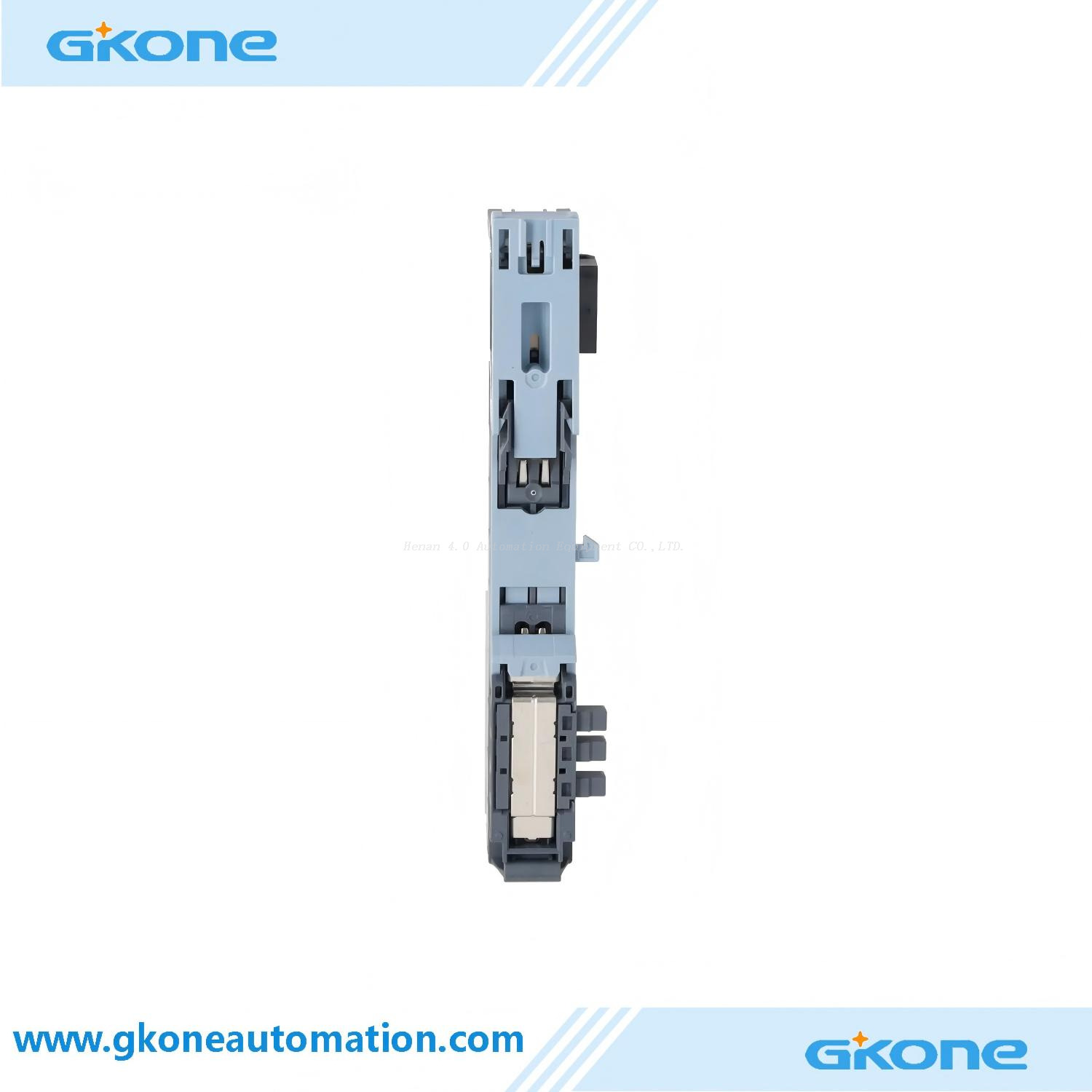

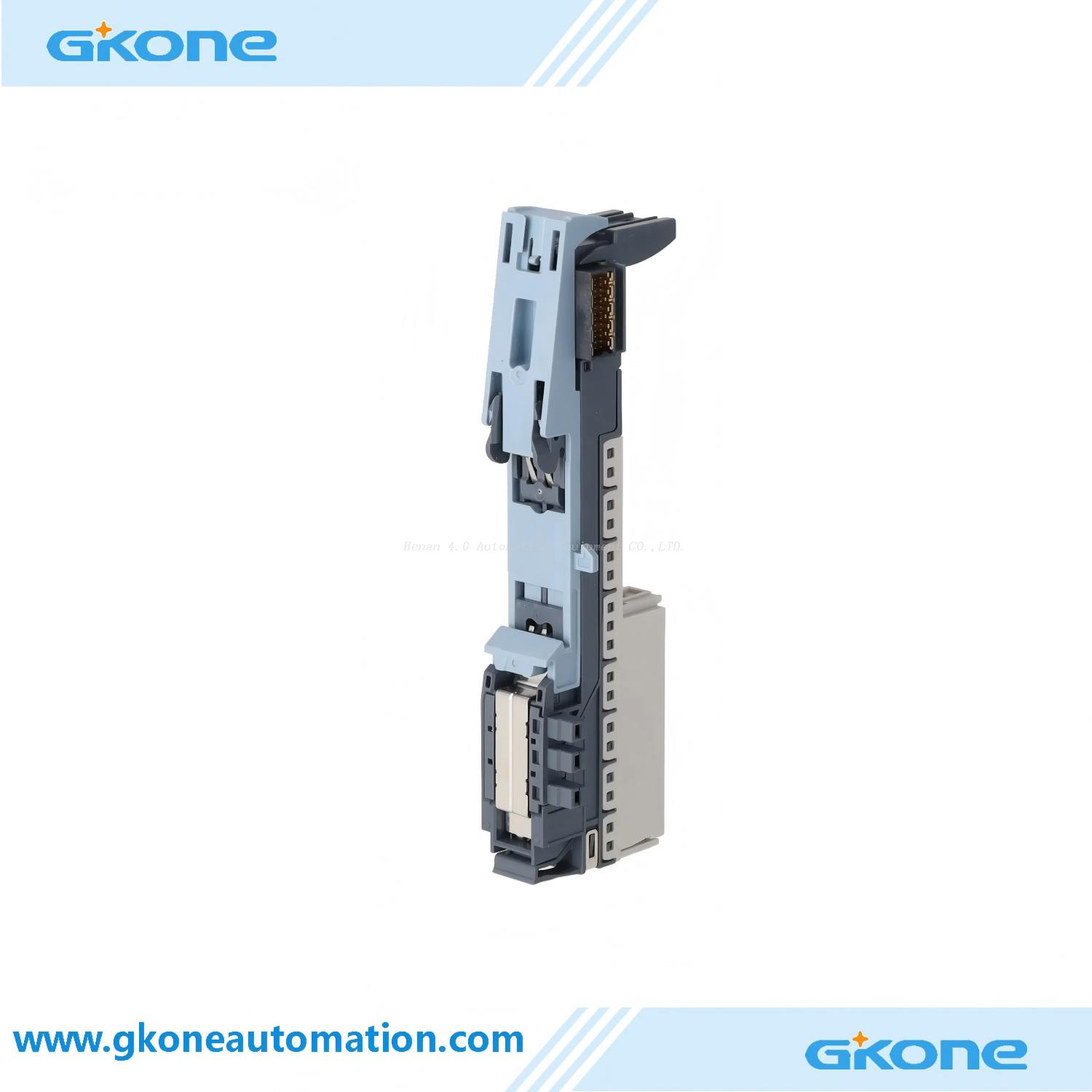

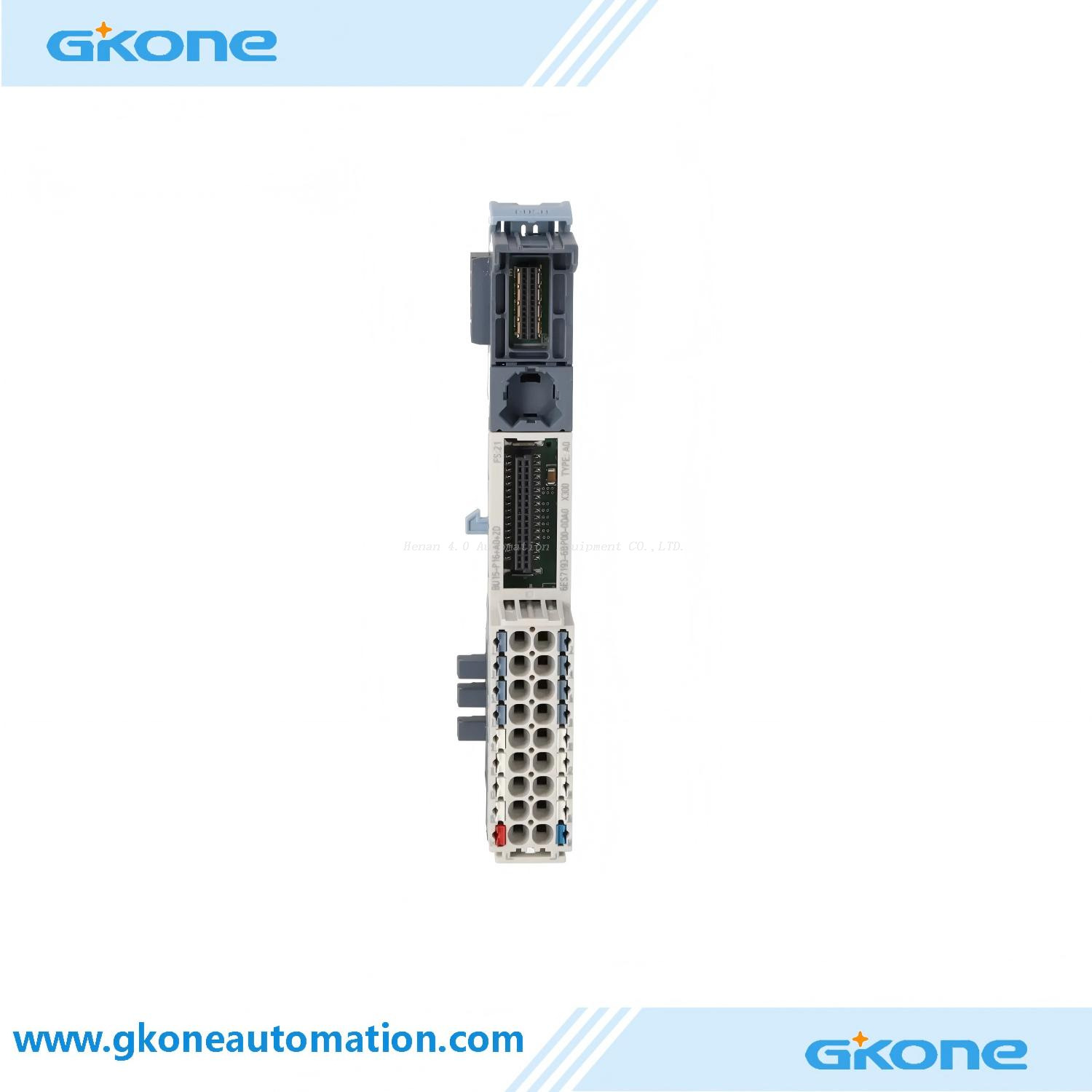

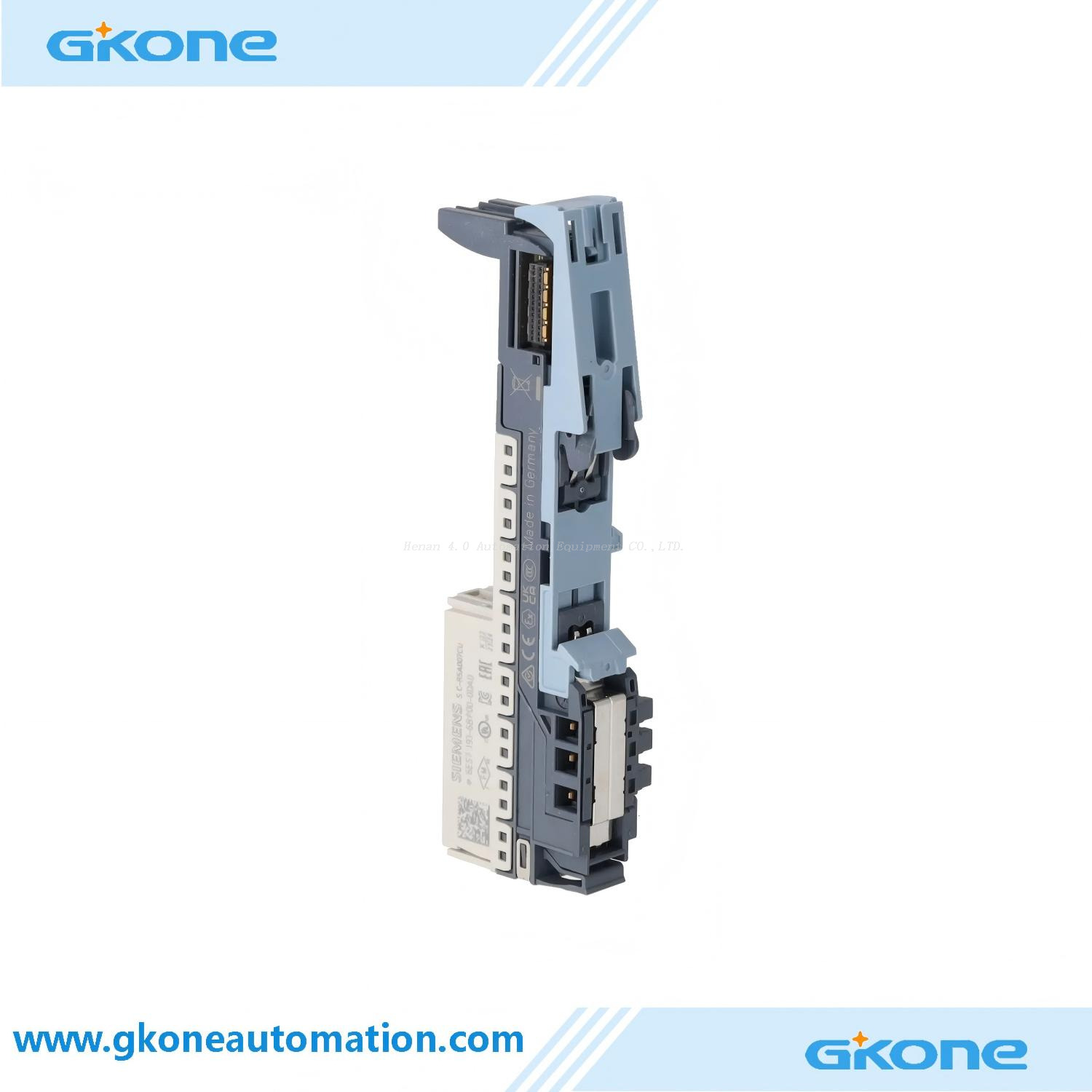

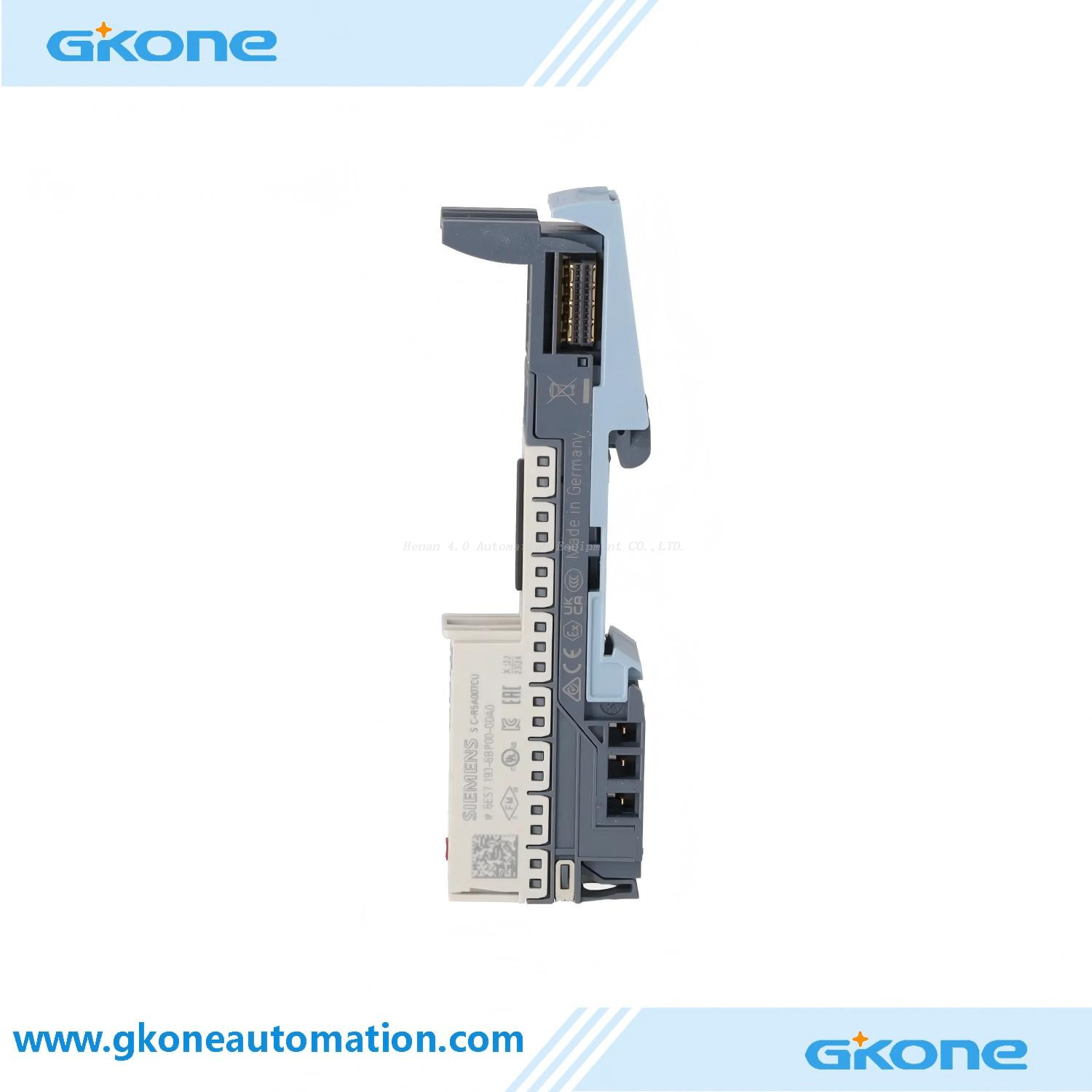

Siemens 6ES7193-6BP00-0DA0 ET 200SP PLC Base Unit BU15-P16+A0+2D
-
6ES7193-6BP00-0DA0
-
Siemens
| Quantity: | |
|---|---|
6ES7193-6BP00-0DA0
The Siemens 6ES7193-6BP00-0DA0 is a vital BaseUnit (BU15-P16+A0+2D) designed to accommodate standard I/O modules within the SIMATIC ET 200SP distributed system. Featuring Type A0 compatibility and double-terminal layout, this base module facilitates direct process wiring via tool-free push-in technology. It provides robust electrical and mechanical connection points on the terminal box, ensuring stable backplane communication.
Common model:
Series | Model |
Interface Modules (IM) | 6ES7155-6AU01-0BN0 |
Interface Modules (IM) | 6ES7155-6BA01-0CN0 |
Digital Input Modules (DI) | 6ES7131-6BF00-0BA0 |
Digital Input Modules (DI) | 6ES7131-6BH01-0BA0 |
Digital Output Modules (DQ) | 6ES7132-6BF00-0BA0 |
Digital Output Modules (DQ) | 6ES7132-6BH01-0BA0 |
Analog Input Modules (AI) | 6ES7134-6HD01-0BA1 |
Analog Input Modules (AI) | 6ES7134-6GD01-0BA1 |
Analog Output Modules (AQ) | 6ES7135-6HD00-0BA1 |
Analog Output Modules (AQ) | 6ES7135-6FB00-0BA1 |
BaseUnits (BU) | 6ES7193-6BP00-0DA0 |
BaseUnits (BU) | 6ES7193-6BP00-0BA0 |
Server Modules | 6ES7193-6PA00-0AA0 |
Key Features & Technical Specifications
System Integration: Specially designed as a Type A0 BaseUnit to support ET 200SP digital, analog, and function modules.
Wiring Technology: Equipped with 16 process terminals using direct, tool-free Push-in connection mechanisms.
Voltage Rating: Supports safe operations up to 24 V DC process supply voltage under heavy industrial conditions.
Module Coding: Features integrated mechanical coding slot to prevent inserting incorrect I/O modules during maintenance.
Compact Footprint: Slim 15 mm physical width allows maximum channel density on standard DIN-rail setups.
Easy Mounting: Designed for fast, one-click assembly onto standard rail configurations without extra tooling.
Applications
The 6ES7193-6BP00-0DA0 BaseUnit is widely utilized in high-density, decentralized automation panels where SIMATIC ET 200SP slice I/O stations are deployed. Thanks to its dark-colored box designation for initiating new load groups, it is highly suitable for industrial manufacturing environments, automotive assembly plants, automated warehousing conveyor systems, and complex process utilities. By providing a reliable vibration-proof mounting platform, this terminal unit ensures seamless data routing and continuous machine control.
