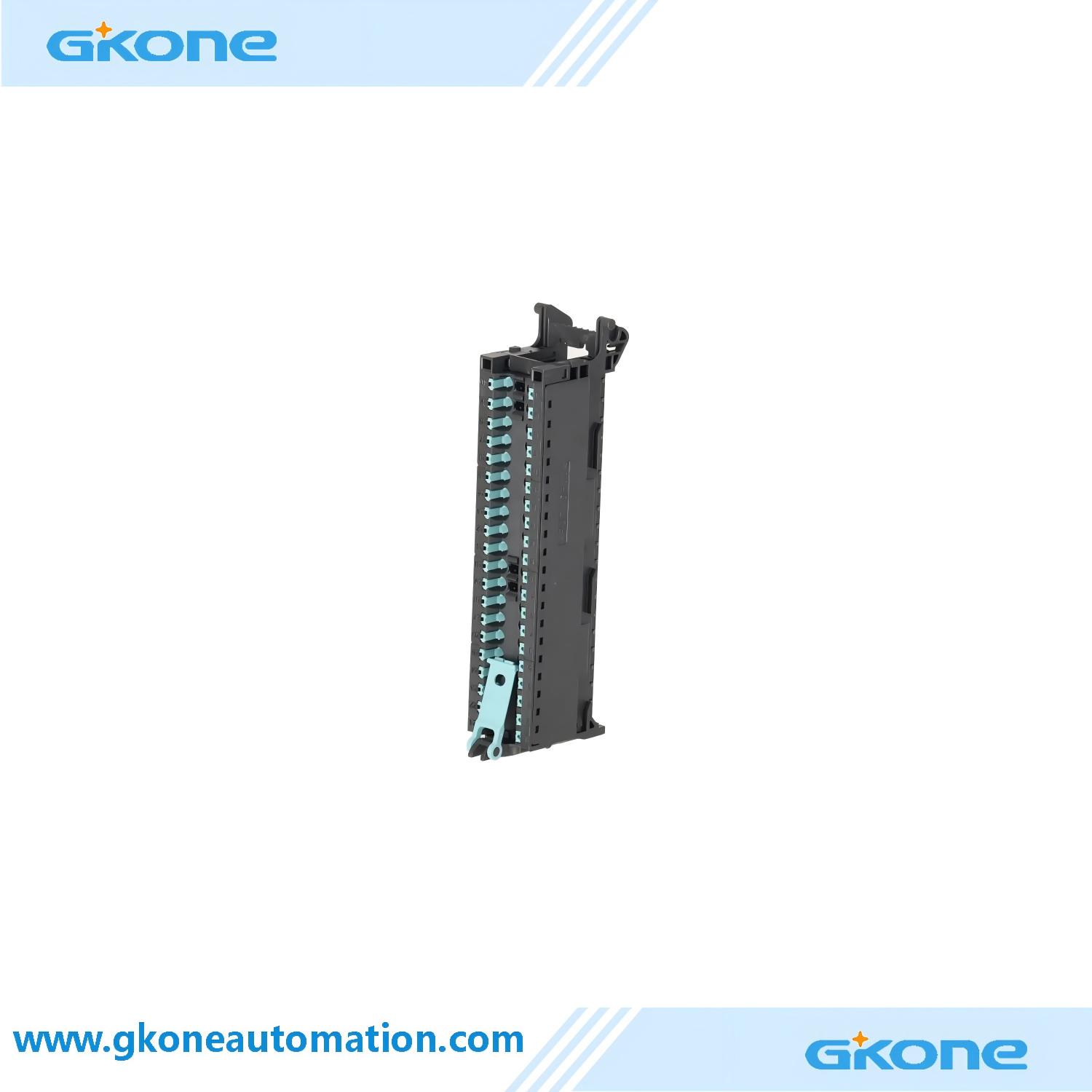

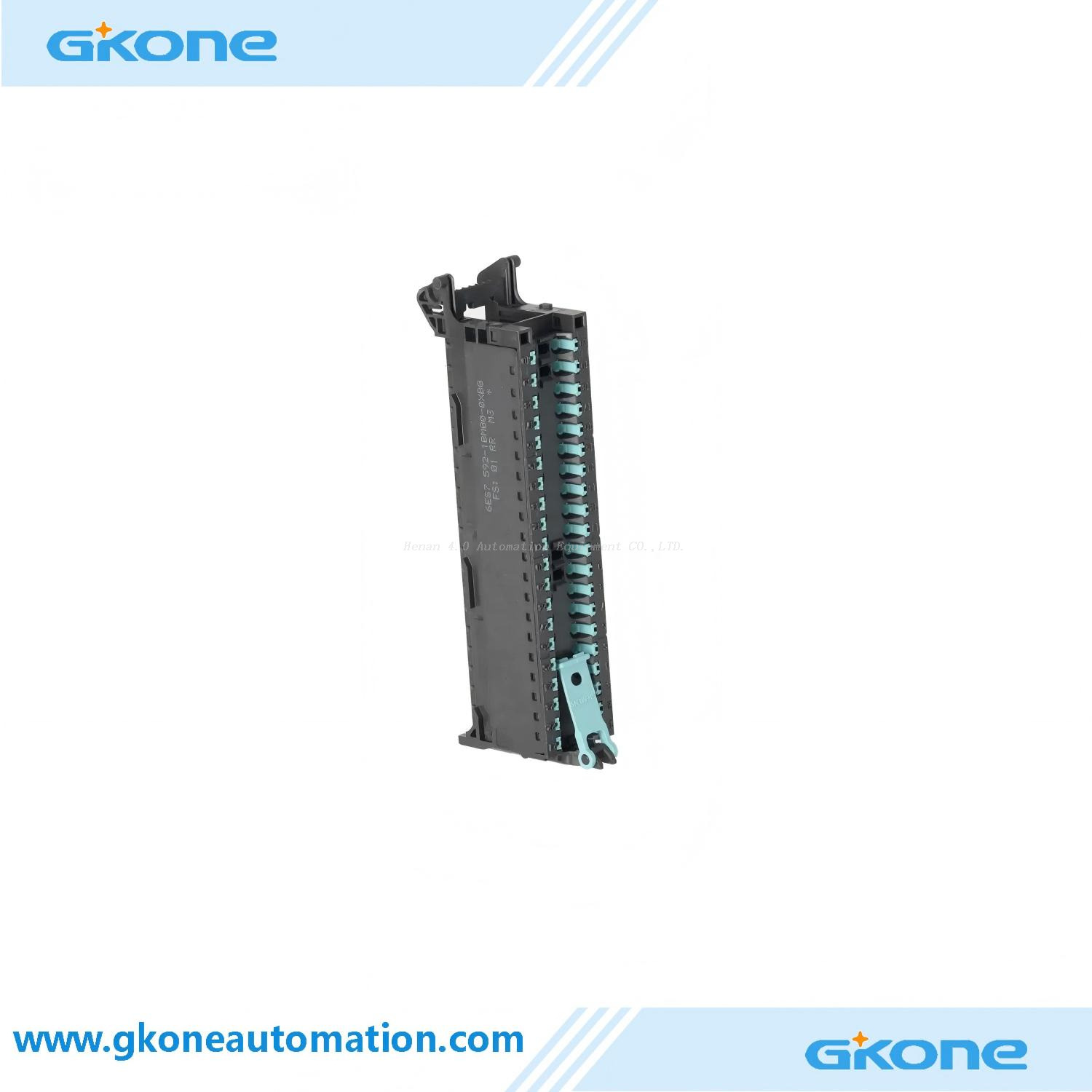

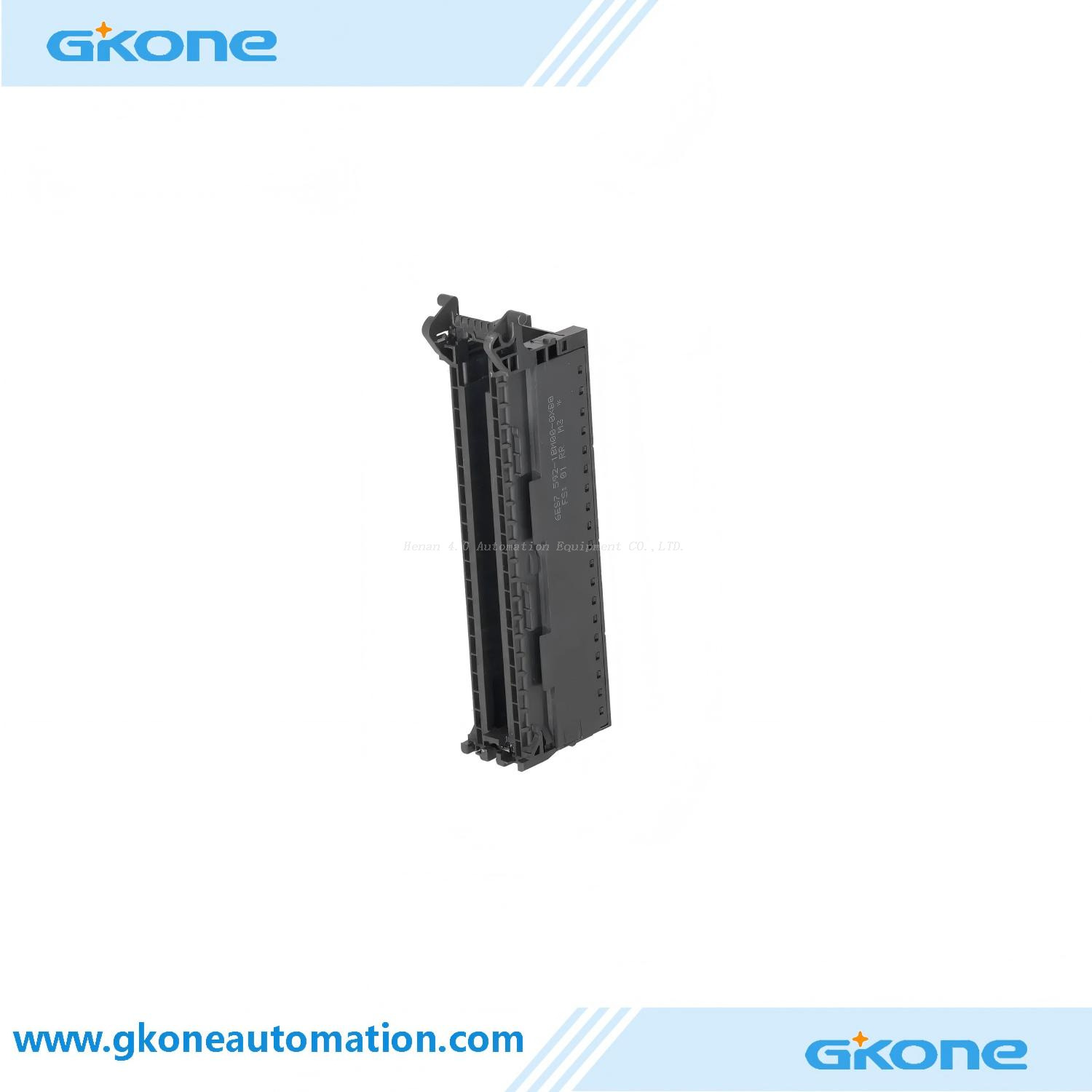

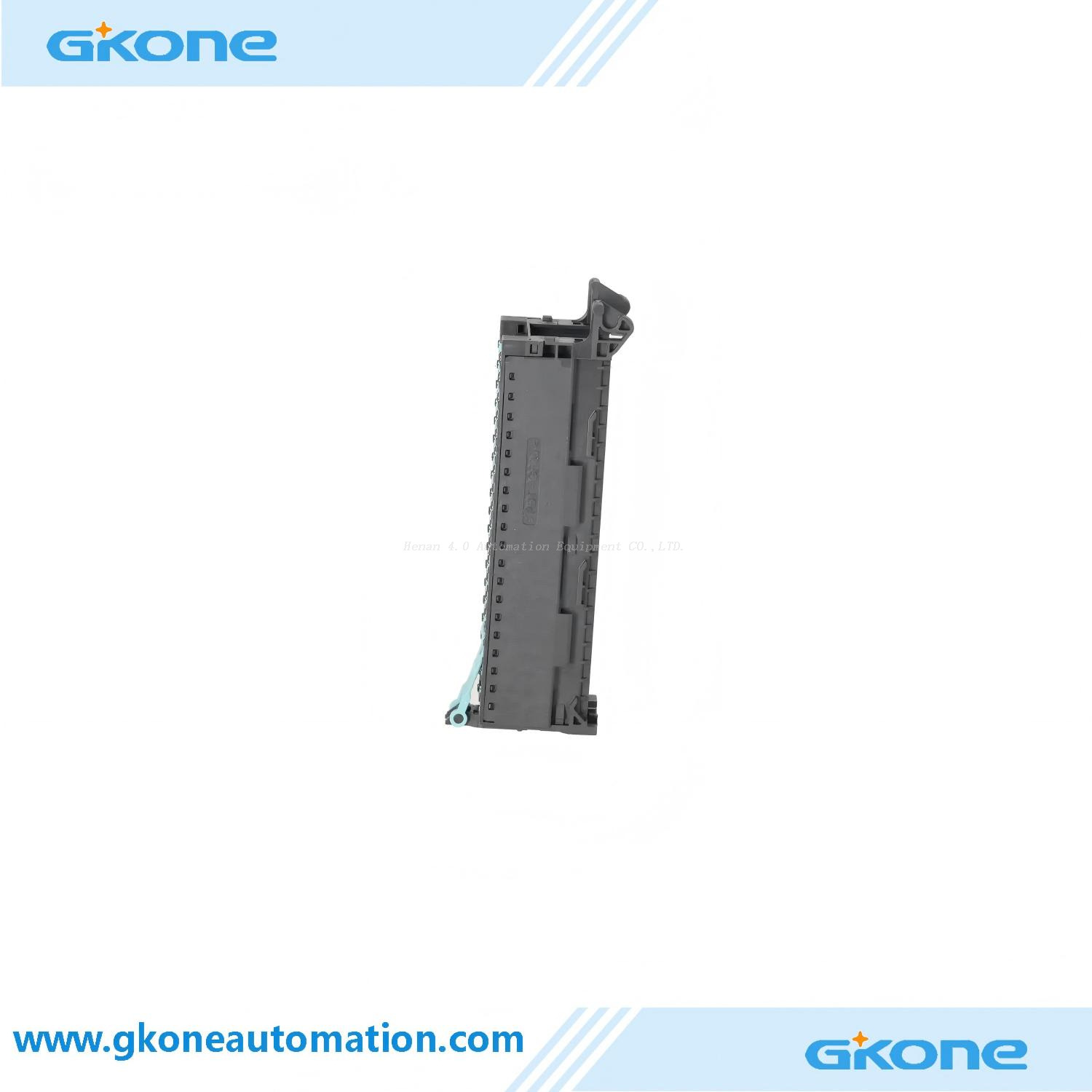

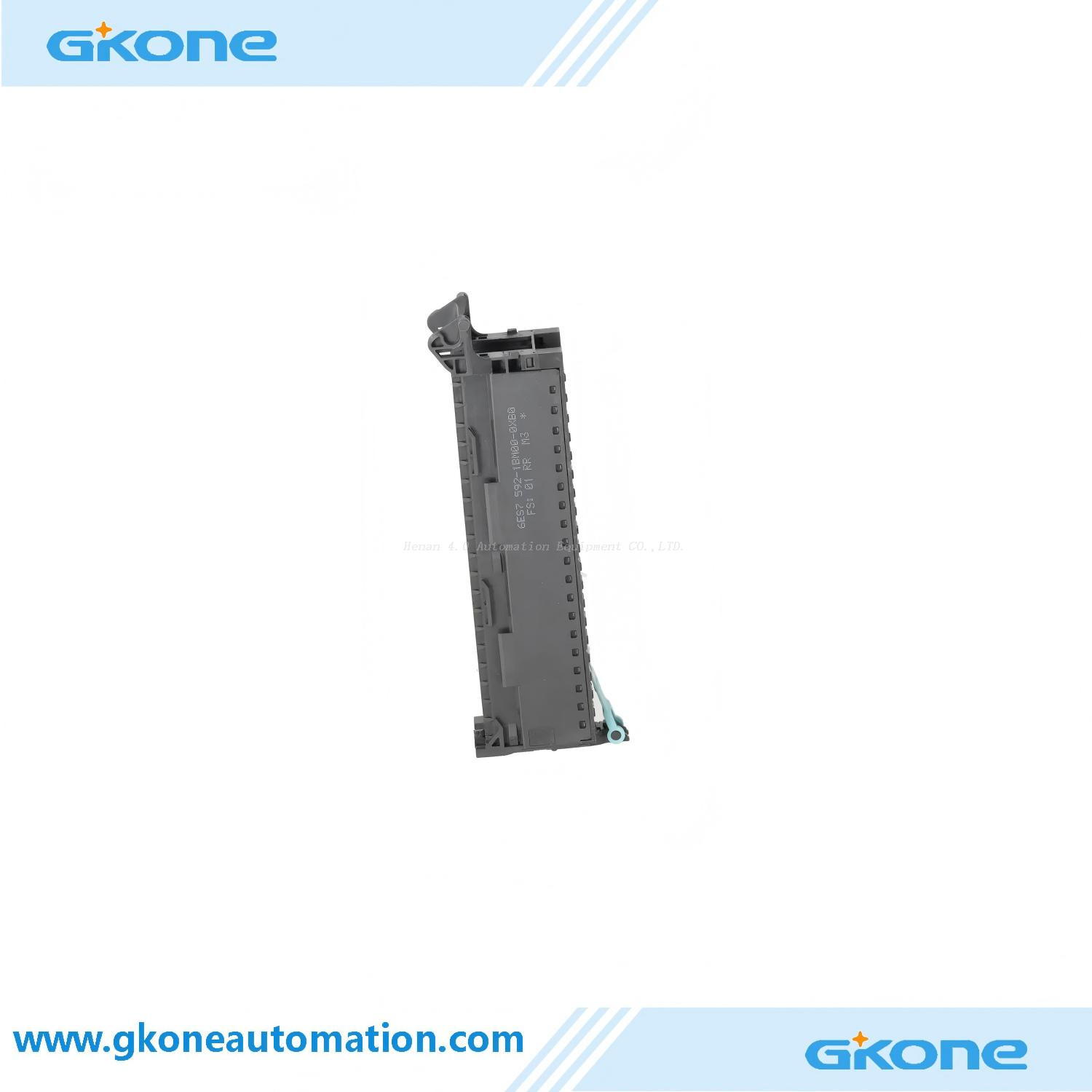

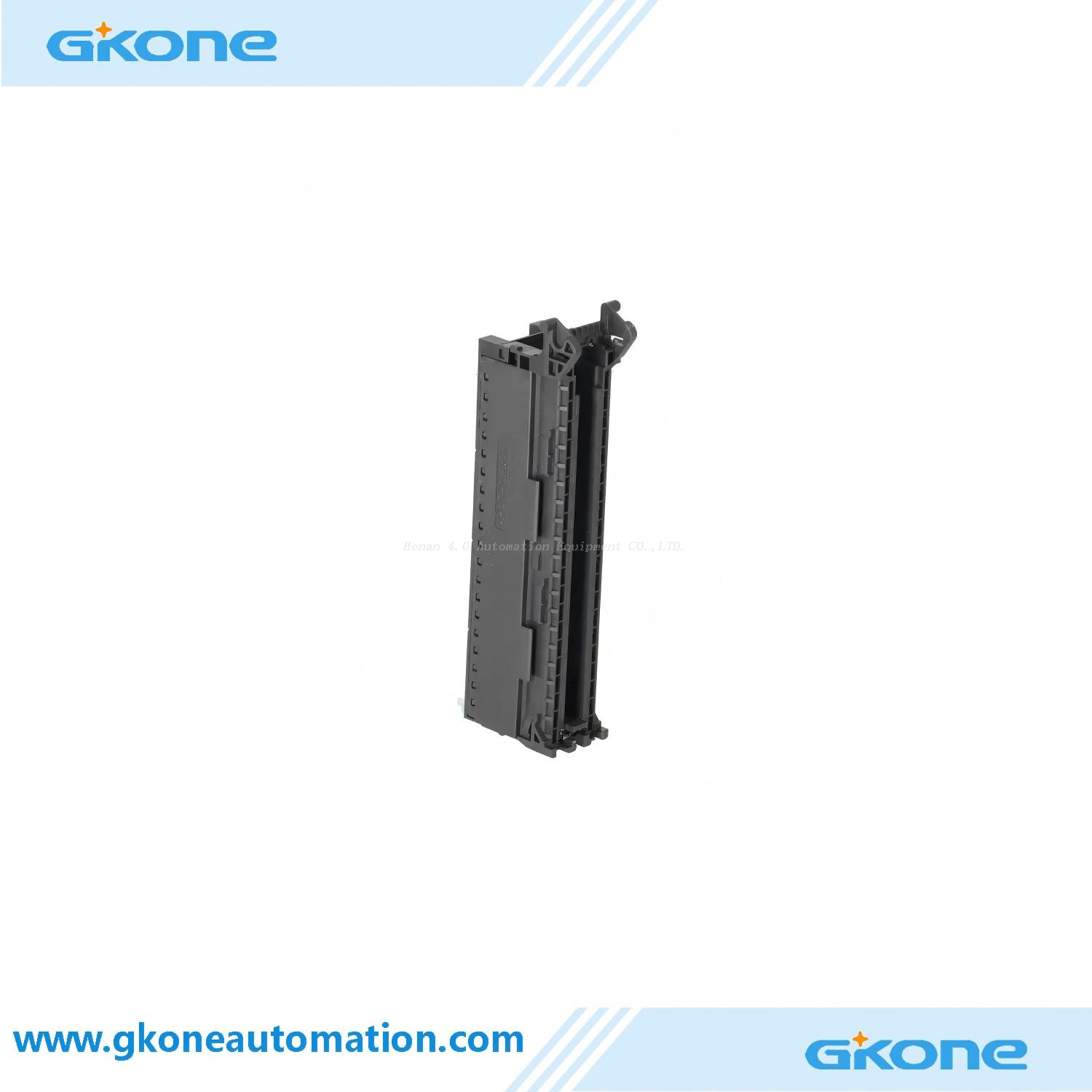

Siemens SIMATIC S7-1500 6ES7592-1BM00-0XB0 40-pin front connector PLC terminal block
-
6ES7592-1BM00-0XB0
-
Siemens
| Quantity: | |
|---|---|
Product Overview
The Siemens 6ES7592-1BM00-0XB0 is an essential wiring accessory designed for the high-density I/O modules of the SIMATIC S7-1500 PLC family. Featuring advanced Push-in connection technology, this 40-pin front connector allows engineers to perform rapid, tool-free wiring of signal cables. This integrated design significantly reduces cabinet assembly time while maintaining vibration-proof electrical contacts.
1.Key Features & Technical Specifications
Accessory Type: 40-pin Front Connector
Connection Method: Push-in technology (direct tool-free insertion for solid or ferruled wires).
Module Compatibility: Fits all 35 mm wide SIMATIC S7-1500 I/O and function modules.
Included Components: Includes 4 coding jumper links, 1 shielding clamp, and cable ties.
Wire Cross-sections: Supports conductors from 0.25 ㎟ to 1.5 ㎟ (24 to 16 AWG).
Cabinet Efficiency: Enables fast and safe pre-wiring of the cable loom outside of the controller panel.
Mechanical Security: Integrated mechanical keying prevents inserting the connector into the wrong module type.
2.Applications
Due to its quick-connect structure, the 6ES7592-1BM00-0XB0 push-in connector is widely utilized in high-density control cabinets where S7-1500 modules are deployed. It is highly recommended for large-scale engineering projects, such as automotive assembly systems, automated warehouse logisitics, and continuous chemical process control. By opting for push-in over screw-type terminals, panel builders can dramatically accelerate loop commissioning and simplify on-site hardware retrofits.
Advantage
Genuine Siemens Product: 100% original, CE certified, strict quality inspection before shipment.
In Stock & Fast Delivery: Ready to ship via DHL/FedEx/UPS within 2 weeks.
Professional Support: 12-month warranty and free technical support for configuration and debugging.
Cost-Effective: Competitive pricing, ideal for system upgrades and replacement projects.
