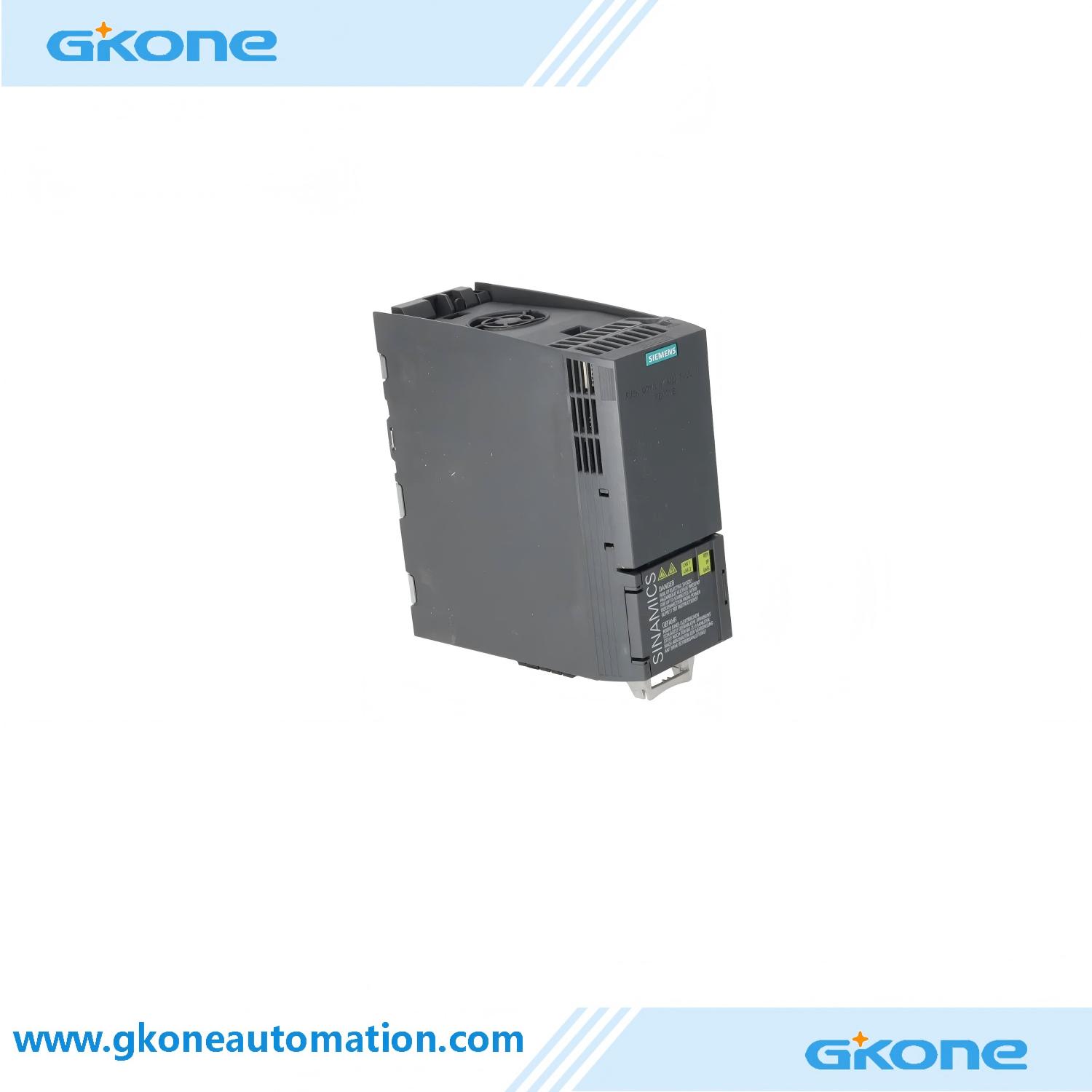

Siemens 6SL3210-1KE11-8AF2 SINAMICS G120C 0.55kW Filtered PROFINET Drive
-
6SL3210-1KE11-8AF2
-
Siemens
| Quantity: | |
|---|---|
Product Overview
The Siemens 6SL3210-1KE11-8AF2 is an ultra-compact SINAMICS G120C frequency inverter rated at 0.55 kW (0.75 hp) for 3-phase AC 380–480V networks. Housed in Frame Size A (FSA), it features an integrated Class A EMC filter, dual-port PROFINET communication, and Safe Torque Off (STO) functionality. Designed for compliance-strict control cabinets, it provides precise motor speed control while minimizing high-frequency noise interference in industrial environments.
Key Features & Technical Specifications
0.55 kW Power Rating: Delivers continuous 0.55 kW / 0.75 hp output for efficient 3-phase induction motor regulation.
Integrated Class A EMC Filter: Built-in line filter reduces high-frequency noise and ensures compliance with EN 61800-3 category C2.
FSA Compact Footprint: Space-saving Frame Size A housing supports side-by-side zero-clearance mounting.
Onboard PROFINET Ports: Dual RJ45 interfaces support PROFINET and Ethernet/IP for rapid industrial fieldbus integration.
Safety Integrated (STO): Hardware-implemented Safe Torque Off function ensures compliance with ISO 13849-1 PL d / SIL 2.
Vector Control Precision: Advanced sensorless vector algorithm guarantees high output torque at low motor speeds.
Streamlined Commissioning: Supports fast parameter cloning and setup via BOP-2 keypad, IOP-2 display, or TIA Portal.
Applications
The 6SL3210-1KE11-8AF2 G120C inverter is widely applied in modern industrial facilities where electromagnetic compatibility and compact panel design are paramount. It serves as a reliable drive solution for automated conveyor lines, centrifugal pumps, HVAC supply fans, small mixers, and packaging equipment. By integrating a Class A EMC filter, STO safety, and PROFINET into a single FSA frame, this SINAMICS drive simplifies electrical compliance and reduces enclosure footprint.
SINAMICS G120C
Part Number | Rated Power (kW) | Input Voltage | Communication | Net Weight (kg) |
6SL3210-1KE12-3UF2 | 0.75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE13-2UF2 | 1.1 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE14-3UF2 | 1.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE15-8UF2 | 2.2 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 1.2 |
6SL3210-1KE17-5UF1 | 3 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE18-8UF1 | 4 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 2.5 |
6SL3210-1KE21-3UF1 | 5.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE21-7UF1 | 7.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 5.8 |
6SL3210-1KE22-6UF1 | 11 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-2UF1 | 15 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE23-8UF1 | 18.5 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 14 |
6SL3210-1KE24-4UF1 | 22 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 35 |
6SL3210-1KE26-0UF1 | 30 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 50 |
6SL3210-1KE27-0UF1 | 37 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE28-4UF1 | 45 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 120 |
6SL3210-1KE31-1UF1 | 55 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 27 |
6SL3210-1KE31-4UF1 | 75 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 45 |
6SL3210-1KE31-7UF1 | 90 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 55 |
6SL3210-1KE32-1UF1 | 110 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 70 |
6SL3210-1KE32-4UF1 | 132 | Three-phaseAC 380-480V ±10%/-20% 47-63Hz | PROFINET/EtherNet/IP | 85 |
