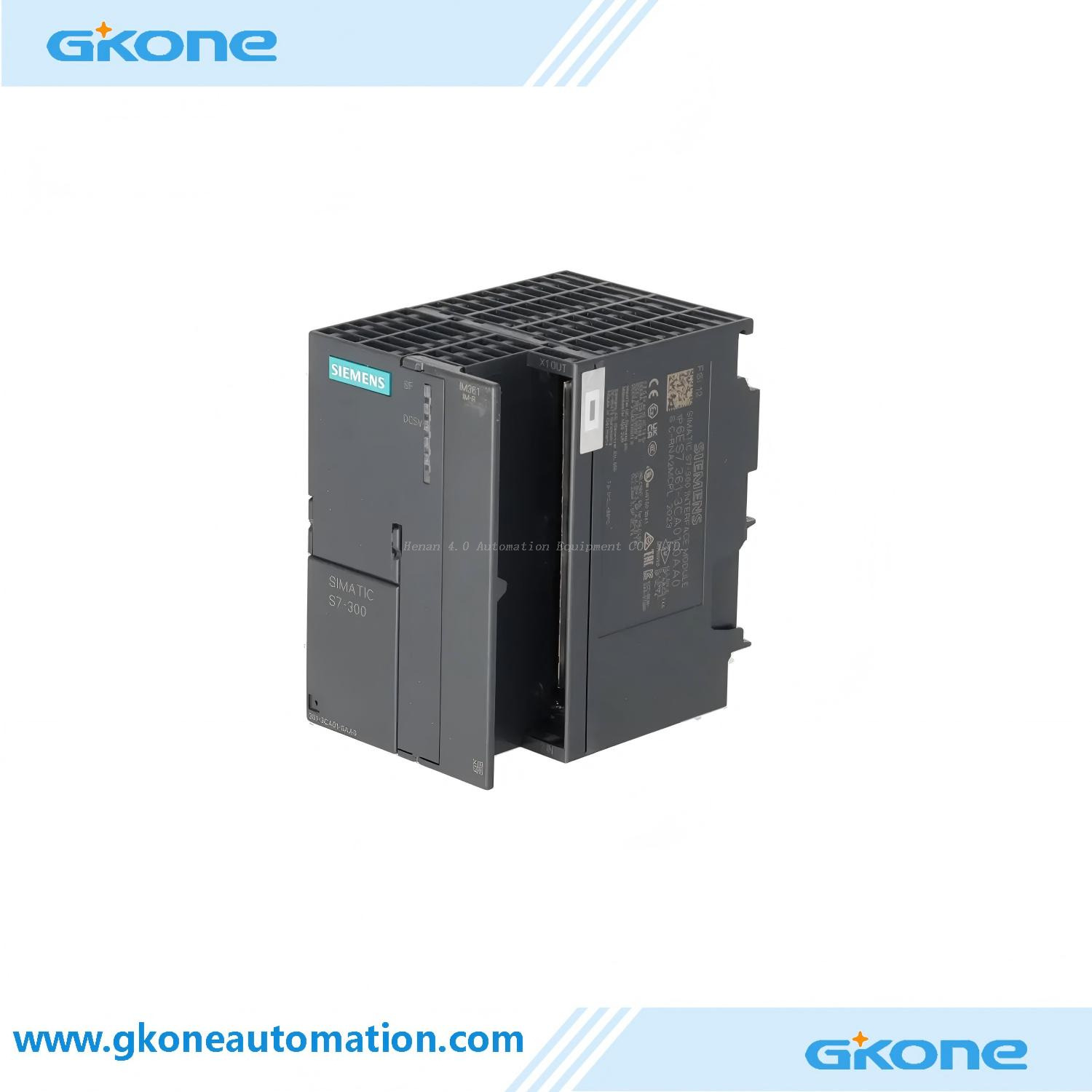

Siemens 6ES7361-3CA01-0AA0 SIMATIC S7-300 IM 361 Receiver Interface Module
-
6ES7361-3CA01-0AA0
-
Siemens
| Quantity: | |
|---|---|
6ES7361-3CA01-0AA0
The 6ES7361-3CA01-0AA0 IM 361 module is widely deployed in large-scale SIMATIC S7-300 installations where additional I/O capacity is needed across multiple DIN rails. It is perfectly suited for automotive assembly lines, automated storage systems, municipal water management projects, and processing plants. By accepting central control bus communication and powering secondary I/O cards, this receiver module enables system integrators to build robust multi-rack architectures without adding separate controllers.
Key Features & Technical Specifications
System Function: Operates as a receiver interface module (IM 361) installed in expansion racks (Rack 1, 2, or 3).
Power Supply Integration: Features built-in 24 V DC power supply connection to feed 5 V DC to the local backplane bus.
Cascading Support: Allows daisy-chaining to subsequent expansion racks for multi-tier cabinet installations.
Distance Range: Supports up to 10 meters distance from the central controller using standard 368 connecting cables.
Bus Communication: Guarantees fast, disturbance-free signal routing between the central CPU and expansion modules.
Standard Form Factor: 80 mm physical width housing, designed to fit into slot 3 of standard S7-300 extension rails.
Industrial Grade: Highly resistant to electromagnetic interference, ensuring stable operation in heavy factory environments.
Common model:
SIMATIC S7-300 Medical Programmable Controller | |||
Module Type | Sub Type | MLFB | Description |
CPU | Standard CPU | 6ES73121AE140AB0 | SIMATIC S7-300,CPU 312 , 24V DC, 32 KByte |
6ES73125BF040AB0 | SIMATIC S7-300,CPU 312C ,10 DE/6 DA,24V DC, 64 KB | ||
6ES73135BG040AB0 | SIMATIC S7-300,CPU 313C , 24 DE/16 DA,4AE,2AA,1 Pt100, 24V DC, 128 KB | ||
6ES73136CG040AB0 | SIMATIC S7-300,CPU 313C-2 DP , 16 DE/16 DA, 24V DC ,28 KB | ||
6ES73141AG140AB0 | SIMATIC S7-300,CPU 314 ,24V DC,128 KB | ||
6ES73146BH040AB0 | SIMATIC S7-300,CPU 314C-2 PTP , 24 DE/16 DA,4AE,2AA,1 Pt100,RS485,24V DC,192 KB | ||
6ES73146CH040AB0 | SIMATIC S7-300,CPU 314C-2 DP , 24 DE/16 DA,4AE,2AA,1 Pt100, 24V DC, 192 KB | ||
6ES73146EH040AB0 | SIMATIC S7-300,CPU 314C-2PN/DP ,192 KB , 24 DE/16 DA,4AE,2AA,1 Pt100,24V DC,FRONT C | ||
6ES73152AH140AB0 | SIMATIC S7-300,CPU 315-2DP, 24V DC , 256 KB,DP-MASTER/SLAVE | ||
6ES73152EH140AB0 | SIMATIC S7-300 CPU 315-2 PN/DP, 384 KB ,MPI/DP 12MBIT/S | ||
6ES73172AK140AB0 | SIMATIC S7-300,CPU 317-2 DP,1MB,1 MPI/DP 12MBit/s ,2 DP-Master/Slave | ||
6ES73172EK140AB0 | SIMATIC S7-300 CPU 317-2 PN/DP,1MB , 1 MPI/DP 12MBit/s ,2 PROFINET | ||
6ES73183EL010AB0 | SIMATIC S7-300 CPU 319-3 PN/DP,2MB ,1 MPI/DP 12MBit/s ,2 DP-Master/Slave , 3 PROFINET | ||
Technology CPU | 6ES73156TH130AB0 | SIMATIC S7-300,CPU 315T-2 DP,256 KByte, 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | |
6ES73157TJ100AB0 | SIMATIC S7-300,CPU 315T-3 PN/DP,384 KB , 1 MPI/DP 12MBit/s ,3 PROFINET,MMC card MIN. 8 MB | ||
6ES73176TK130AB0 | SIMATIC S7-300,CPU 317T-2 DP,1024 KByte , 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | ||
6ES73177TK100AB0 | SIMATIC S7-300,CPU 317T-3 PN/DP,1024 KByte , 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | ||
MMC Card | MMC Card | 6ES79538LF310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 64 KB |
6ES79538LG310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200, 3.3 V NFLASH, 128 KB | ||
6ES79538LJ310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 512 KB | ||
6ES79538LL310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 2 MB | ||
6ES79538LM310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 4 MB | ||
6ES79538LP310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 8 MB | ||
CP Communication Module | CP 340 | 6ES73401CH020AE0 | SIMATIC S7-300,CP 340 communication processor with RS422 / 485 interface, including package CD |
CP 341 | 6ES73411CH020AE0 | SIMATIC S7-300,CP 341 communication processor with RS422 / 485 interface | |
Functional Module | Counter Module | 6ES73501AH030AE0 | SIMATIC S7-300, Counter module 350-1 for S7-300, Counter function up to 500 KHZ1 channel for connecting 5V and 24V INC |
6ES73502AH010AE0 | SIMATIC S7-300, Counter Module FM 350-2, 8 Channels, 20 KHZ, 24V Encoder | ||
Positioning Module | 6ES73511AH020AE0 | SIMATIC S7-300, FM 351 Positioning Module for fast / intermittent feed drives with package CD | |
Electronic Cam Controller | 6ES73521AH020AE0 | SIMATIC S7-300, FM 352 Electronics.Cam operation control, including package CD | |
Closed-loop Temperature Control Module | 6ES73552CH000AE0 | SIMATIC S7-300, temperature control module FM 355-2 C, 4 channels, continuous 4 analog input + 8 digital input + 4 analog output | |
Interface Module | Interface Module | 6ES73603AA010AA0 | SIMATIC S7-300, the interface module IM 360 on the center frame is used to connect the MAX.3 expansion frame with K-BUS |
6ES73613CA010AA0 | SIMATIC S7-300, interface module IM 361 IN expansion frame for connecting center frame ( IM360 ), 24 V DC power supply voltage | ||
6ES73650BA010AA0 | SIMATIC S7-300, interface module IM 365 for connecting expansion frame, W / O K-BUS, 2 modules + connecting cable 1M | ||
Orbit | 6ES73901AE800AA0 | SIMATIC S7-300, orbit = 480MM | |
6ES73901AF300AA0 | SIMATIC S7-300, orbit = 530MM | ||
6ES73901AJ300AA0 | SIMATIC S7-300, orbit = 830MM | ||
Pre-connector | 6ES73921AJ000AA0 | SIMATIC S7-300, front connector for signal module with screw contacts, 20 pins | |
6ES73921AM000AA0 | SIMATIC S7-300, front connector 392 with screw contacts, 40 pins | ||
Signal Template | Digital Input Module | 6ES73211BH020AA0 | SIMATIC S7-300, digital input SM 321, optical isolation, 16 digital inputs, 24 V DC, 1 X 20 pins |
6ES73211BH500AA0 | SIMATIC S7-300, Digital Input SM 321, Optical Isolation 16 Digital Input, 24 V DC, Source Input, 1 x 20 pins | ||
6ES73211BL000AA0 | SIMATIC S7-300, Digital Input SM 321, Optically Isolated 32 Digital Input, 24 V DC, 1 x 40 pins | ||
6ES73221BL000AA0 | SIMATIC S7-300, Digital Output SM 322, Optical Isolation, 32 Digital Output, 24V DC, 0.5A, 1 X 40 pins, Total Output Current 4A / group ( 16A / module ) | ||
Digital Input And Output Module | 6ES73231BH010AA0 | SIMATIC S7-300, Digital Module SM 323, Optical Isolation, 8 Digital Inputs and 8 Digital Outputs, 24V DC, 0.5A Total Current 2A, 20 pins | |
6ES73231BL000AA0 | SIMATIC S7-300, Digital Module SM 323, Optical Isolation, 16 Digital Inputs and 16 Digital Outputs, 24V DC, 0.5A, Total Current 4A, 1X40 pins | ||
Analog Input Module | 6ES73311KF020AB0 | SIMATIC S7-300, logic input SM 331, optical isolation, 8 AI, 13 BIT resolution, U / I / resistance / PT100, NI100, NI1000, LG-NI1000, PTC / KTY, 66 MS module UPDATE, 1 x 40 pins | |
6ES73317KB020AB0 | SIMATIC S7-300, Logic Input SM 331, Optical Isolation, 2 AI, 9 / 12 / 14 Bit Resolution, U / I / Thermocouple / Resistor, Interference, Diagnostics, 1 x 20 pins, Remove / Insert W. Backplane Bus | ||
6ES73317NF000AB0 | SIMATIC S7-300, logic input SM 331, optical isolation, 8 AE ; + / -5 / 10V, 1-5 V, + / -20MA, 0 / 4 TO 20MA, 16 BIT ( 55 MS ), 1 COMMON POINT ( 50 V COM. ), 1 X 40 pins | ||
6ES73317PF010AB0 | SIMATIC S7-300, Logic input SM 331, Optical isolation., 2 / 3 / 4 line, 8AI, Resistance, PT100 / 200 / 1000 NI100 / 120 / 200 / 500 / 1000, CU10, Additional product features 16 ( INTERN 24 ) bits, 50MS, 1 x 40 pins according to GOST standard | ||
6ES73317PF110AB0 | SIMATIC S7-300, Logic Input SM 331, Optical Isolation, 8 AI Thermocouple, Type B, E, J, K, L, N, R, S, T TXK / TXK ( L ) According to GOST 16 BIT, 50 MS, 1 X 40 pins | ||
Analog Output Module | 6ES73325HB010AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 2 AO, U / I ; 11 / 12 bit RESOL., 20 pins., remove / insert with ACTIVE backplane bus | |
6ES73325HD010AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 4 AO, U / I ; diagnosis ; resolution 11 / 12 bit, 20 pins, remove / insert W. ACTIVE, backplane bus | ||
6ES73325HF000AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 8 AO, U / I ; diagnosis ; resolution 11 / 12 bit, 40 pins, remove / insert W. ACTIVE, backplane bus | ||
6ES73327ND020AB0 | SIMATIC S7-300, analog output SM 332, channel potential isolation 4 analog output, resolution 16 bits, 0-10V, 1-5V, + / -10V, + / -20mA, 0 / 4-20mA, 20 pins | ||
Analog Input And Output Module | 6ES73340CE010AA0 | SIMATIC S7, Logic Input / Output SM 334, Non-isolated, 4 AI / 2 AO, 20-POLIG, Remove & Insert with Backplane Bus | |
