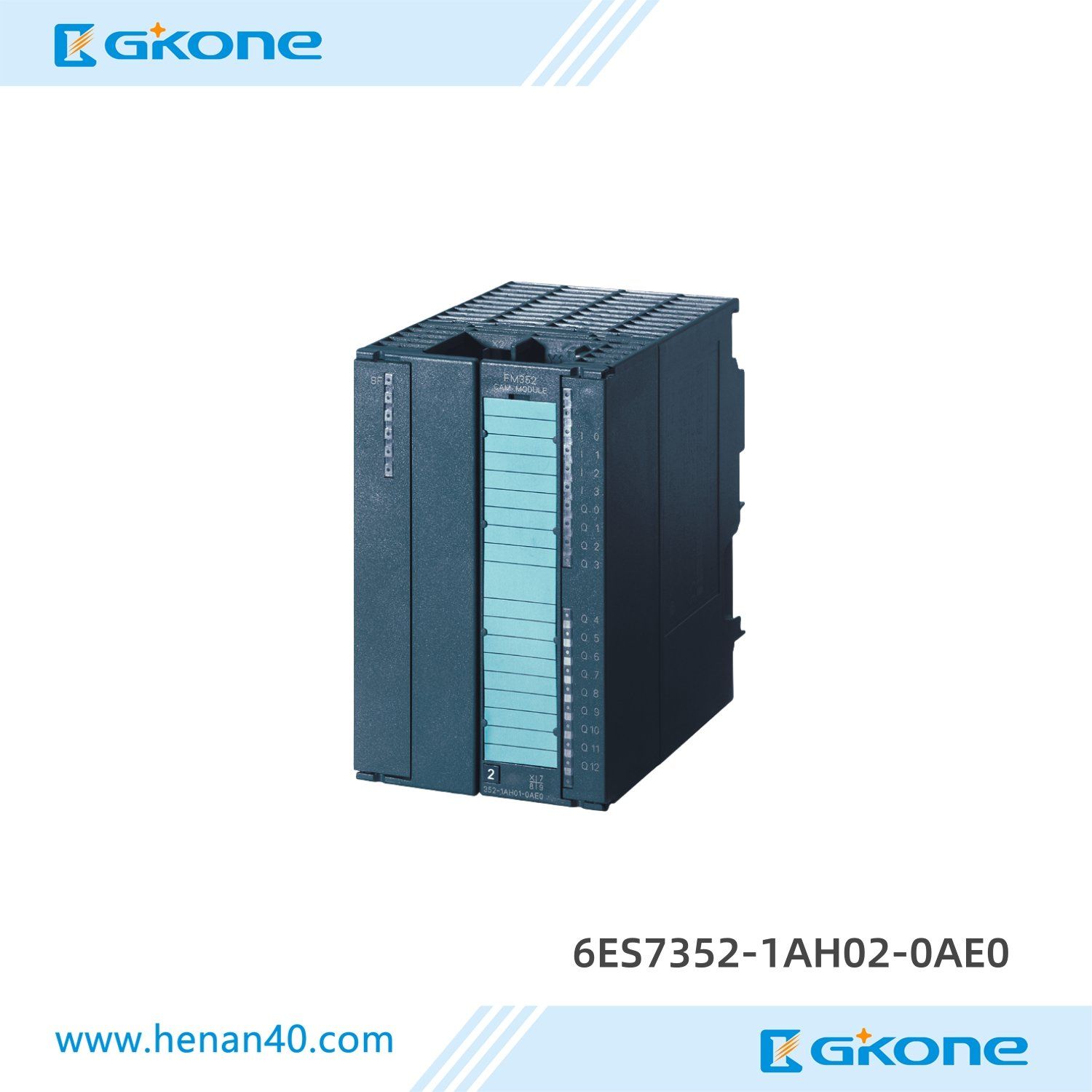

Siemens 6ES7352-1AH02-0AE0 S7-300 FM 352 Electronic Cam Controller Module
-
6ES7352-1AH02-0AE0
-
Siemens
| Quantity: | |
|---|---|
6ES7352-1AH02-0AE0
The 6ES7352-1AH02-0AE0 electronic cam module is essential for automated machinery requiring ultra-fast, position-synchronized action. It is widely applied in rotary packaging equipment, high-speed labeling systems, metal stamping presses, flying shears, and gluing units. By delivering deterministic microsecond switching signals within the S7-300 platform, this FM 352 module ensures extreme repeatability, reduced mechanical wear, and high throughput on automated production lines.
Key Features & Technical Specifications
High-Speed Switching: Executes position-based switching operations within microseconds, independent of PLC CPU scan cycles.
32 Electronic Cams: Supports up to 32 cam tracks / digital outputs for flexible multi-point axis position triggering.
Encoder Compatibility: Connects directly to incremental encoders (RS422) or SSI absolute encoders for accurate position feedback.
Dynamic Cam Compensation: Automatically compensates for actuator switching delay times based on real-time axis velocity.
Integrated Digital I/O: Features onboard digital inputs and fast outputs for immediate hardware signal generation.
CPU CPU Task Relief: Offloads complex position processing and fast switching algorithms directly from the main processor.
Diagnostic Capabilities: Offers extensive module diagnostic monitoring including encoder cable integrity, position errors, and supply voltage faults.
Common model:
SIMATIC S7-300 Medical Programmable Controller | |||
Module Type | Sub Type | MLFB | Description |
CPU | Standard CPU | 6ES73121AE140AB0 | SIMATIC S7-300,CPU 312 , 24V DC, 32 KByte |
6ES73125BF040AB0 | SIMATIC S7-300,CPU 312C ,10 DE/6 DA,24V DC, 64 KB | ||
6ES73135BG040AB0 | SIMATIC S7-300,CPU 313C , 24 DE/16 DA,4AE,2AA,1 Pt100, 24V DC, 128 KB | ||
6ES73136CG040AB0 | SIMATIC S7-300,CPU 313C-2 DP , 16 DE/16 DA, 24V DC ,28 KB | ||
6ES73141AG140AB0 | SIMATIC S7-300,CPU 314 ,24V DC,128 KB | ||
6ES73146BH040AB0 | SIMATIC S7-300,CPU 314C-2 PTP , 24 DE/16 DA,4AE,2AA,1 Pt100,RS485,24V DC,192 KB | ||
6ES73146CH040AB0 | SIMATIC S7-300,CPU 314C-2 DP , 24 DE/16 DA,4AE,2AA,1 Pt100, 24V DC, 192 KB | ||
6ES73146EH040AB0 | SIMATIC S7-300,CPU 314C-2PN/DP ,192 KB , 24 DE/16 DA,4AE,2AA,1 Pt100,24V DC,FRONT C | ||
6ES73152AH140AB0 | SIMATIC S7-300,CPU 315-2DP, 24V DC , 256 KB,DP-MASTER/SLAVE | ||
6ES73152EH140AB0 | SIMATIC S7-300 CPU 315-2 PN/DP, 384 KB ,MPI/DP 12MBIT/S | ||
6ES73172AK140AB0 | SIMATIC S7-300,CPU 317-2 DP,1MB,1 MPI/DP 12MBit/s ,2 DP-Master/Slave | ||
6ES73172EK140AB0 | SIMATIC S7-300 CPU 317-2 PN/DP,1MB , 1 MPI/DP 12MBit/s ,2 PROFINET | ||
6ES73183EL010AB0 | SIMATIC S7-300 CPU 319-3 PN/DP,2MB ,1 MPI/DP 12MBit/s ,2 DP-Master/Slave , 3 PROFINET | ||
Technology CPU | 6ES73156TH130AB0 | SIMATIC S7-300,CPU 315T-2 DP,256 KByte, 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | |
6ES73157TJ100AB0 | SIMATIC S7-300,CPU 315T-3 PN/DP,384 KB , 1 MPI/DP 12MBit/s ,3 PROFINET,MMC card MIN. 8 MB | ||
6ES73176TK130AB0 | SIMATIC S7-300,CPU 317T-2 DP,1024 KByte , 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | ||
6ES73177TK100AB0 | SIMATIC S7-300,CPU 317T-3 PN/DP,1024 KByte , 1 MPI/DP 12MBit/s ,MMC card MIN. 8 MB | ||
MMC Card | MMC Card | 6ES79538LF310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 64 KB |
6ES79538LG310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200, 3.3 V NFLASH, 128 KB | ||
6ES79538LJ310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 512 KB | ||
6ES79538LL310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 2 MB | ||
6ES79538LM310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 4 MB | ||
6ES79538LP310AA0 | SIMATIC S7, MMC card for S7-300 / C7 / ET 200,3.3 V NFLASH, 8 MB | ||
CP Communication Module | CP 340 | 6ES73401CH020AE0 | SIMATIC S7-300,CP 340 communication processor with RS422 / 485 interface, including package CD |
CP 341 | 6ES73411CH020AE0 | SIMATIC S7-300,CP 341 communication processor with RS422 / 485 interface | |
Functional Module | Counter Module | 6ES73501AH030AE0 | SIMATIC S7-300, Counter module 350-1 for S7-300, Counter function up to 500 KHZ1 channel for connecting 5V and 24V INC |
6ES73502AH010AE0 | SIMATIC S7-300, Counter Module FM 350-2, 8 Channels, 20 KHZ, 24V Encoder | ||
Positioning Module | 6ES73511AH020AE0 | SIMATIC S7-300, FM 351 Positioning Module for fast / intermittent feed drives with package CD | |
Electronic Cam Controller | 6ES73521AH020AE0 | SIMATIC S7-300, FM 352 Electronics.Cam operation control, including package CD | |
Closed-loop Temperature Control Module | 6ES73552CH000AE0 | SIMATIC S7-300, temperature control module FM 355-2 C, 4 channels, continuous 4 analog input + 8 digital input + 4 analog output | |
Interface Module | Interface Module | 6ES73603AA010AA0 | SIMATIC S7-300, the interface module IM 360 on the center frame is used to connect the MAX.3 expansion frame with K-BUS |
6ES73613CA010AA0 | SIMATIC S7-300, interface module IM 361 IN expansion frame for connecting center frame ( IM360 ), 24 V DC power supply voltage | ||
6ES73650BA010AA0 | SIMATIC S7-300, interface module IM 365 for connecting expansion frame, W / O K-BUS, 2 modules + connecting cable 1M | ||
Orbit | 6ES73901AE800AA0 | SIMATIC S7-300, orbit = 480MM | |
6ES73901AF300AA0 | SIMATIC S7-300, orbit = 530MM | ||
6ES73901AJ300AA0 | SIMATIC S7-300, orbit = 830MM | ||
Pre-connector | 6ES73921AJ000AA0 | SIMATIC S7-300, front connector for signal module with screw contacts, 20 pins | |
6ES73921AM000AA0 | SIMATIC S7-300, front connector 392 with screw contacts, 40 pins | ||
Signal Template | Digital Input Module | 6ES73211BH020AA0 | SIMATIC S7-300, digital input SM 321, optical isolation, 16 digital inputs, 24 V DC, 1 X 20 pins |
6ES73211BH500AA0 | SIMATIC S7-300, Digital Input SM 321, Optical Isolation 16 Digital Input, 24 V DC, Source Input, 1 x 20 pins | ||
6ES73211BL000AA0 | SIMATIC S7-300, Digital Input SM 321, Optically Isolated 32 Digital Input, 24 V DC, 1 x 40 pins | ||
6ES73221BL000AA0 | SIMATIC S7-300, Digital Output SM 322, Optical Isolation, 32 Digital Output, 24V DC, 0.5A, 1 X 40 pins, Total Output Current 4A / group ( 16A / module ) | ||
Digital Input And Output Module | 6ES73231BH010AA0 | SIMATIC S7-300, Digital Module SM 323, Optical Isolation, 8 Digital Inputs and 8 Digital Outputs, 24V DC, 0.5A Total Current 2A, 20 pins | |
6ES73231BL000AA0 | SIMATIC S7-300, Digital Module SM 323, Optical Isolation, 16 Digital Inputs and 16 Digital Outputs, 24V DC, 0.5A, Total Current 4A, 1X40 pins | ||
Analog Input Module | 6ES73311KF020AB0 | SIMATIC S7-300, logic input SM 331, optical isolation, 8 AI, 13 BIT resolution, U / I / resistance / PT100, NI100, NI1000, LG-NI1000, PTC / KTY, 66 MS module UPDATE, 1 x 40 pins | |
6ES73317KB020AB0 | SIMATIC S7-300, Logic Input SM 331, Optical Isolation, 2 AI, 9 / 12 / 14 Bit Resolution, U / I / Thermocouple / Resistor, Interference, Diagnostics, 1 x 20 pins, Remove / Insert W. Backplane Bus | ||
6ES73317NF000AB0 | SIMATIC S7-300, logic input SM 331, optical isolation, 8 AE ; + / -5 / 10V, 1-5 V, + / -20MA, 0 / 4 TO 20MA, 16 BIT ( 55 MS ), 1 COMMON POINT ( 50 V COM. ), 1 X 40 pins | ||
6ES73317PF010AB0 | SIMATIC S7-300, Logic input SM 331, Optical isolation., 2 / 3 / 4 line, 8AI, Resistance, PT100 / 200 / 1000 NI100 / 120 / 200 / 500 / 1000, CU10, Additional product features 16 ( INTERN 24 ) bits, 50MS, 1 x 40 pins according to GOST standard | ||
6ES73317PF110AB0 | SIMATIC S7-300, Logic Input SM 331, Optical Isolation, 8 AI Thermocouple, Type B, E, J, K, L, N, R, S, T TXK / TXK ( L ) According to GOST 16 BIT, 50 MS, 1 X 40 pins | ||
Analog Output Module | 6ES73325HB010AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 2 AO, U / I ; 11 / 12 bit RESOL., 20 pins., remove / insert with ACTIVE backplane bus | |
6ES73325HD010AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 4 AO, U / I ; diagnosis ; resolution 11 / 12 bit, 20 pins, remove / insert W. ACTIVE, backplane bus | ||
6ES73325HF000AB0 | SIMATIC S7-300, logic output SM 332, optical isolation, 8 AO, U / I ; diagnosis ; resolution 11 / 12 bit, 40 pins, remove / insert W. ACTIVE, backplane bus | ||
6ES73327ND020AB0 | SIMATIC S7-300, analog output SM 332, channel potential isolation 4 analog output, resolution 16 bits, 0-10V, 1-5V, + / -10V, + / -20mA, 0 / 4-20mA, 20 pins | ||
Analog Input And Output Module | 6ES73340CE010AA0 | SIMATIC S7, Logic Input / Output SM 334, Non-isolated, 4 AI / 2 AO, 20-POLIG, Remove & Insert with Backplane Bus | |
