Siemens 6SL3210-1PE21-4AL0 SINAMICS G120 PM240-2 Power Module | 5.5kW(LO)/4kW(HO) 380-480V 3-Phase VFD, Integrated Class A Filter & Brake Chopper, IP20, FSB
- Model：6SL3210-1PE21-4AL0
- Series：SINAMICS G120 PM240-2
- Input：3AC 380-480V ±10%, 47-63Hz
- Output：3AC 0-480V, 0-550Hz (V/f) / 0-200Hz (Vector)
- Power：5.5kW (LO, 13.2A) / 4kW (HO, 11.2A)
- Features：Integrated Class A EMC filter, integrated brake chopper, IP20, FSB frame
- Cooling：Internal air cooling
- Applications：Pumps, fans, conveyors, mixers, general industrial machinery
-
6SL3210-1PE21-4AL0
-
Siemens
| Quantity: | |
|---|---|
Product Overview

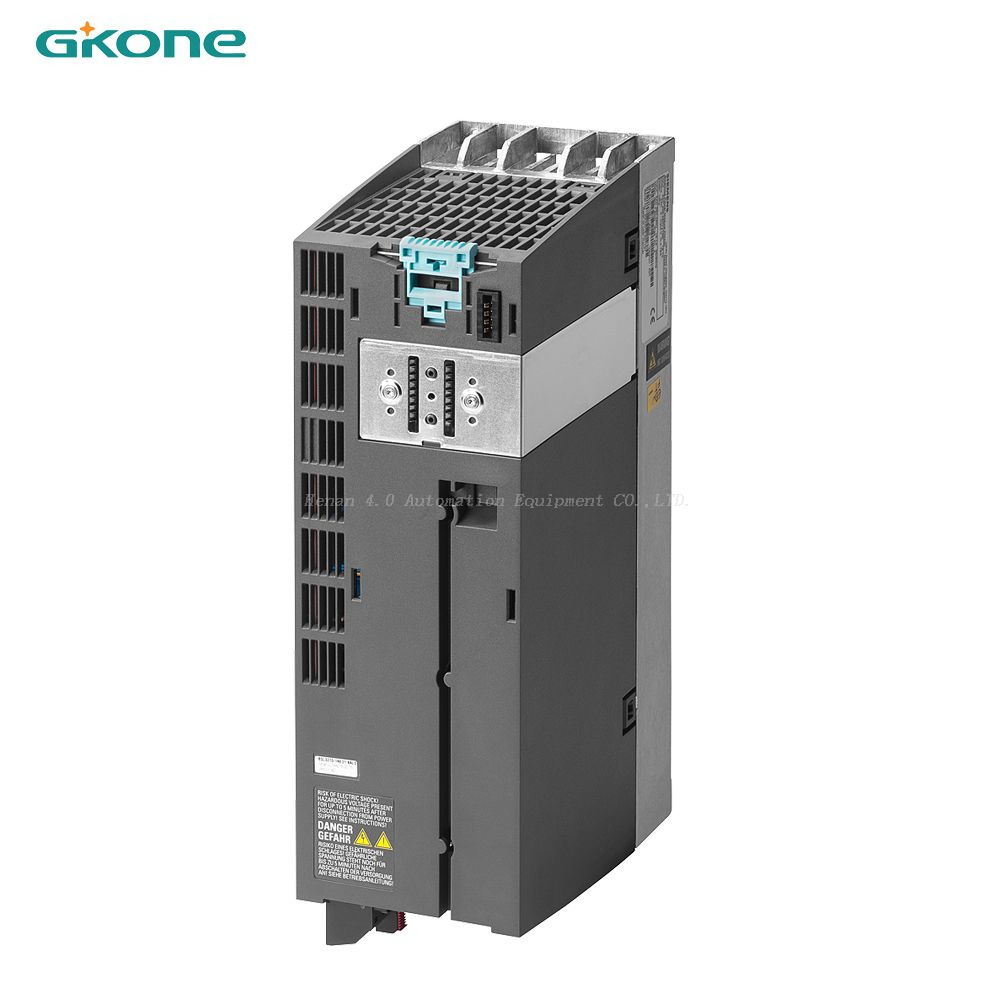

The Siemens 6SL3210-1PE21-4AL0 is a compact, high-performance power module from the SINAMICS G120 PM240-2 series, designed for standard industrial motor control. It delivers 5.5kW low overload / 4kW high overload power with 3AC 380-480V input. Equipped with an integrated Class A EMC filter and brake chopper, this FSB-sized (291×100×165mm) IP20 module ensures easy installation, strong anti-interference and fast braking, ideal for small-to-medium automation systems.
Key Features
Dual Power & Flexible Overload：5.5kW (13.2A) LO (150%/3s, 110%/57s); 4kW (11.2A) HO (200%/3s, 150%/57s), covering light and heavy load scenarios。
Integrated Class A EMC Filter：Built-in filter reduces EMI, meets Class A requirements, simplifies system wiring and compliance。
Integrated Brake Chopper：Enables rapid deceleration and regenerative load control without external components。
Wide Voltage & Frequency Range：3AC 380-480V ±10%, 47-63Hz; output 0-550Hz (V/f) / 0-200Hz (vector), adaptable to global grids。
FSB Compact Size & IP20：FSB dimensions (291×100×165mm); IP20 protects against dust and solid objects。
High Efficiency & Wide Temperature：97% efficiency; internal cooling; -10°C to +40°C (LO) / +50°C (HO) operation。
Flexible Control：Supports V/f and sensorless vector control; compatible with CU240B-2/CU240E-2 units。
Comprehensive Protection：Overvoltage, undervoltage, overload, short-circuit, ground fault and motor overtemperature protection
